Manufacturer's Description:
Built for trail power and control, Summit 2 delivers responsive performance, advanced ride modes, and confident handling for all-terrain adventures.
- Motor: 750W/100Nm
- Top Speed: 28 MPH
- SensorSwap™: Torque/Cadence
- Max Range: 95 Miles
- Waterproof: Battery IPX7
- Pedal Assist Mode: 5 Modes
750W High-Torque Motor
Confident Power on Climbs
Summit 2 delivers strong, reliable power for steep climbs and heavy loads. Its 750W inner-rotor motor peaks at 1300W with 100Nm of torque, responding instantly and pulling through tough terrain.

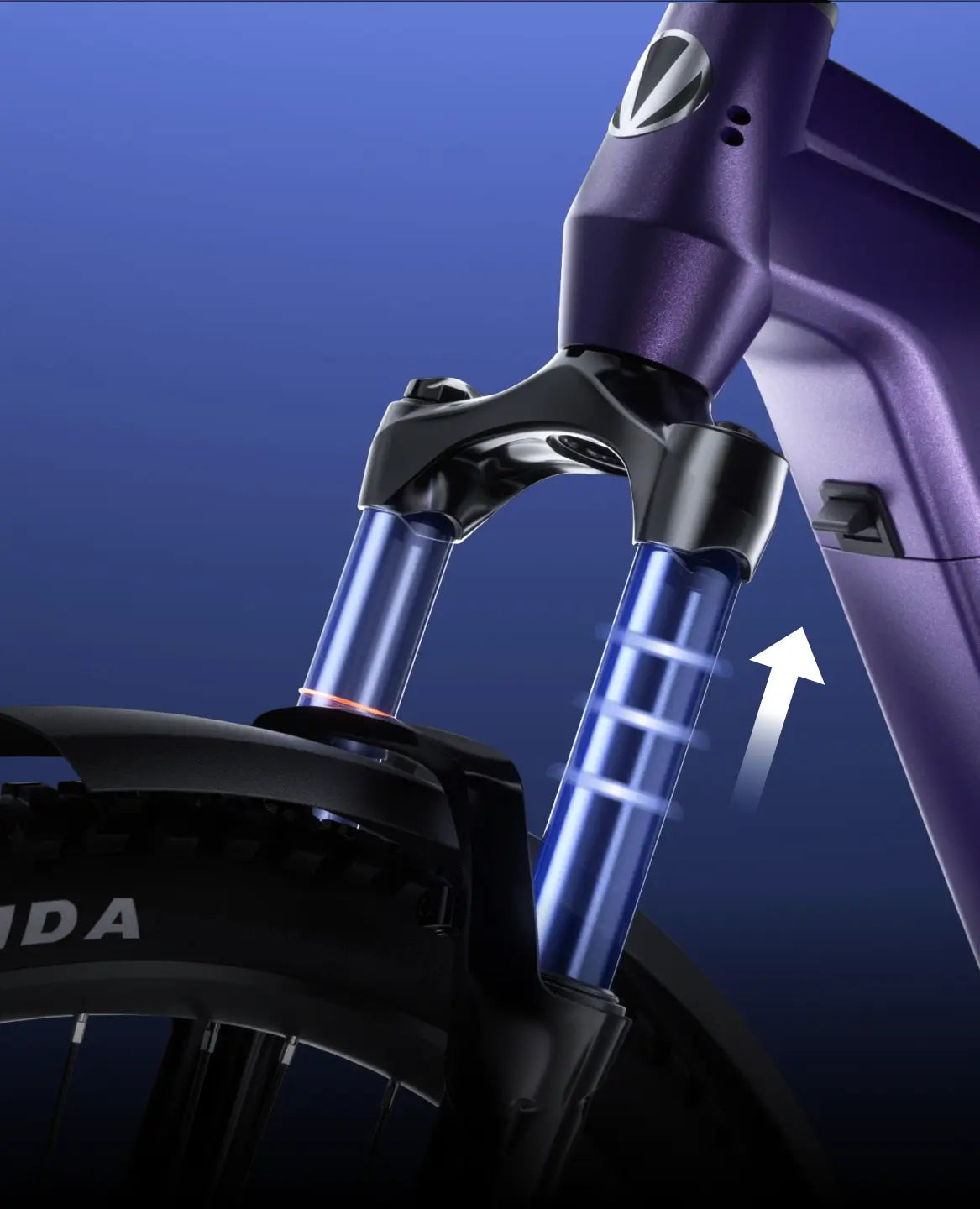

eMTB-Level RST Air Suspension
Smooth Where It Gets Rough
Long travel smooths out bigger hits and rough sections. Adjustable rebound dials in support by rider weight, while the lockout boosts efficiency on flat terrain.
Proven Shimano Reliability
Control You Can Trust
CUES 9-Speed Drivetrain
Wide 11–46T gearing makes steep climbs feel lighter and cruising more relaxed, giving you the range to spin uphill efficiently and carry momentum with fewer shifts.
MT200 Hydraulic Brakes
Reliable stopping power on wet streets and loose gravel, with a predictable feel. From Shimano’s MT Series, built for mountain bike control and reliability.
Extended Range
Go Further, Worry Less
Ride all week, explore longer routes, or stack weekend loops with fewer charging stops and less range anxiety.
95 Miles
Per charge
802 Wh
Battery capacity
Balanced Riding Posture
Sporty. Comfortable. Ride It Your Way.
The adjustable stem lets you ride sportier on trails and more upright around town. A balanced geometry keeps it comfortable and composed either way.
Ready Out of the Box
Thoughtful in Every Detail

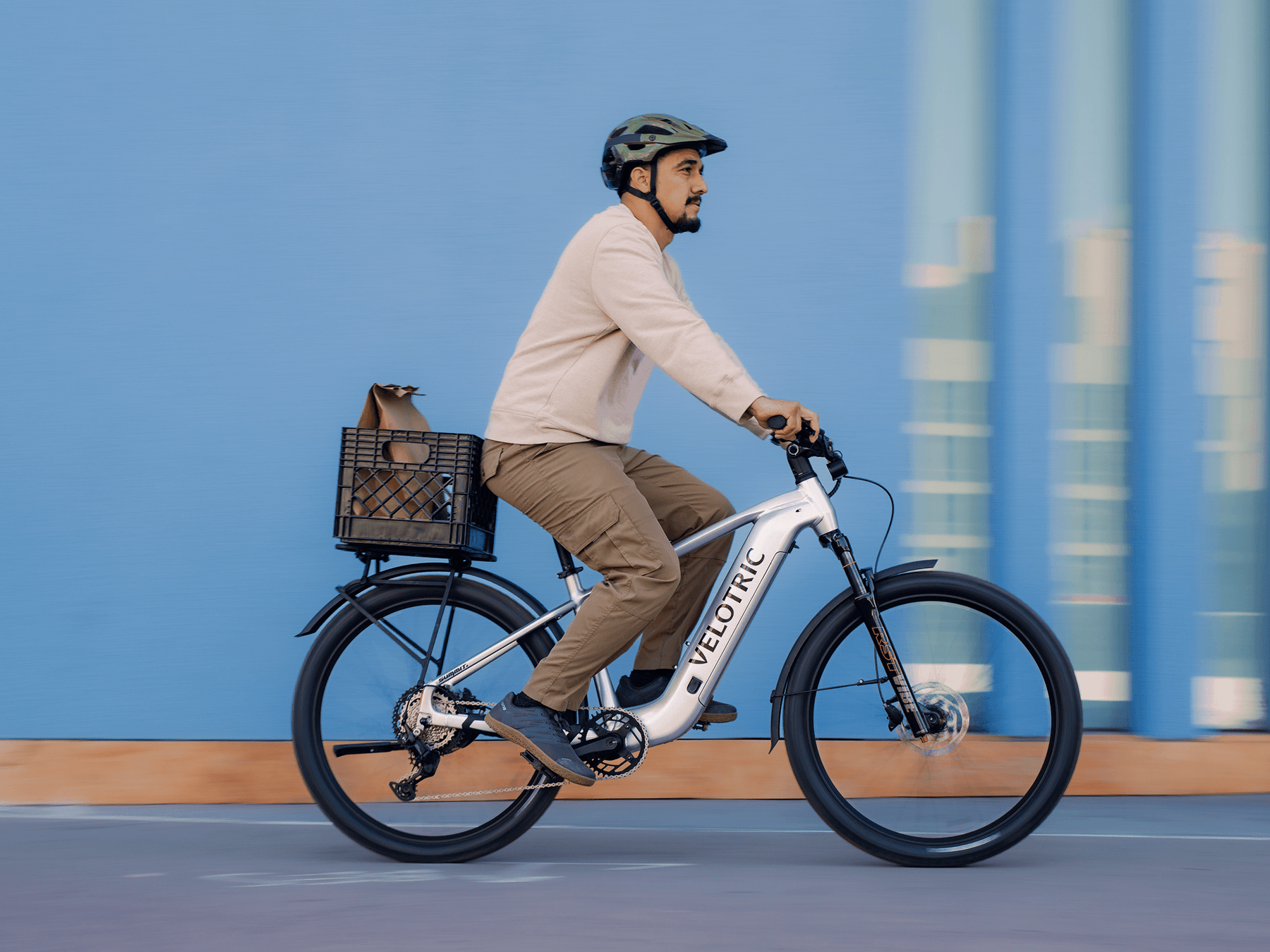

Still deciding between a eMTB or commuter Ebike? Try a hybrid. Summit 2 balances everyday comfort with off-pavement confidence, so commuting, errands, and trails all feel equally natural.
One-Touch Class Switching
Easily switch between Class 1, 2, and 3 to match local regulations. Where permitted, Custom Mode unlocks Class 3 throttle speeds up to 28 mph.
* Custom Mode availability varies by region and is not supported in California.
SensorSwap™
With one click, switch between torque mode for precise control and cadence mode for smooth cruising.
Pulse Mode™
Train with intention using heart-rate-based assistance.
Smart Tuning
User profiles adjust power automatically, while Ride Tuning lets you fine-tune motor output and PAS.
Works with Apple Find My & Google's Find Hub
Locate your bike anytime.
NFC Keyless Unlock
Tap to unlock with secure NFC access.
UL2271 & UL2849 Certified
Rigorously tested for safety.
IPX7 / IPX6 Protection
Ready for Rain, Puddles, and Splash.
Specifications
General Info
| Model Name | Summit 2 |

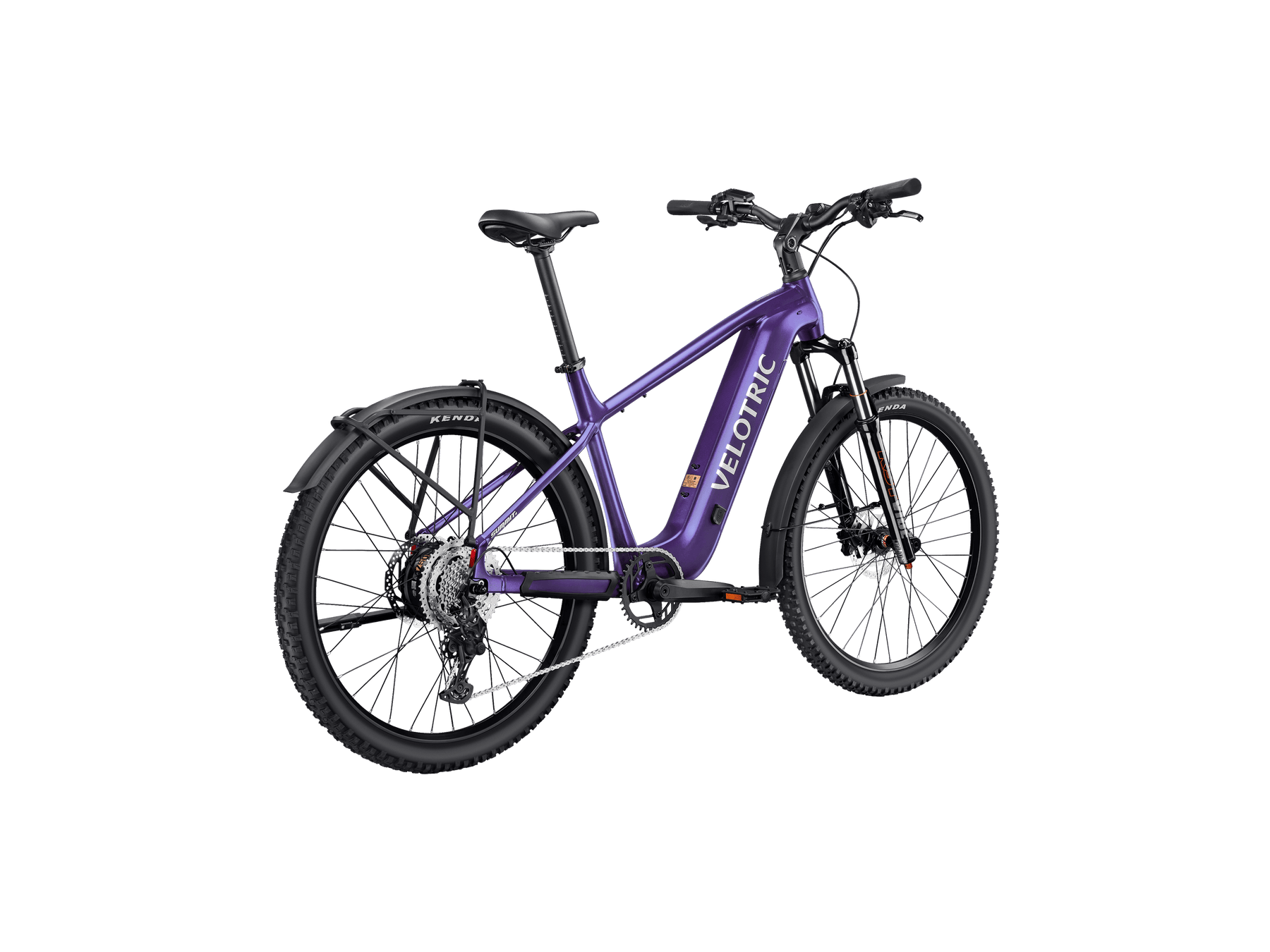

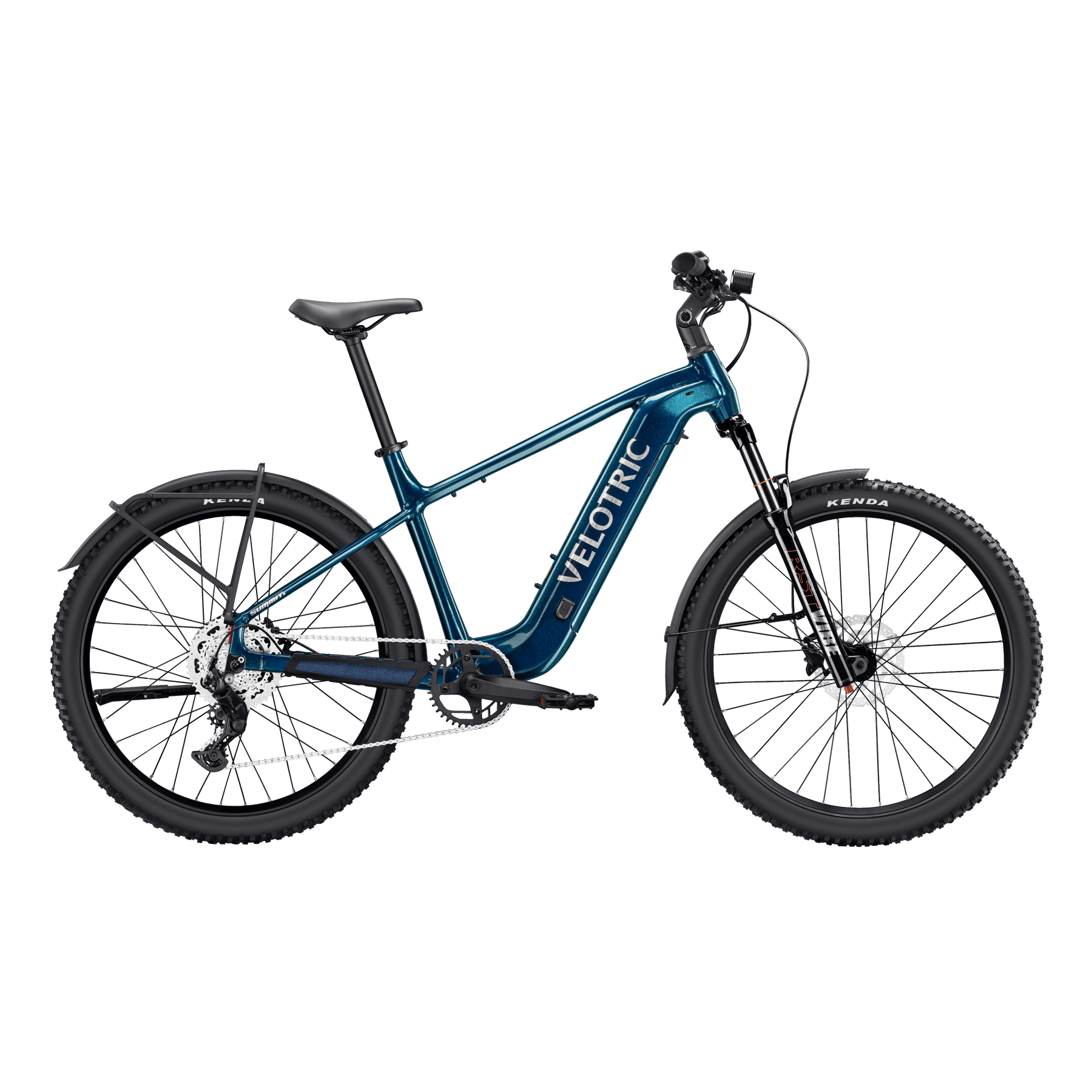

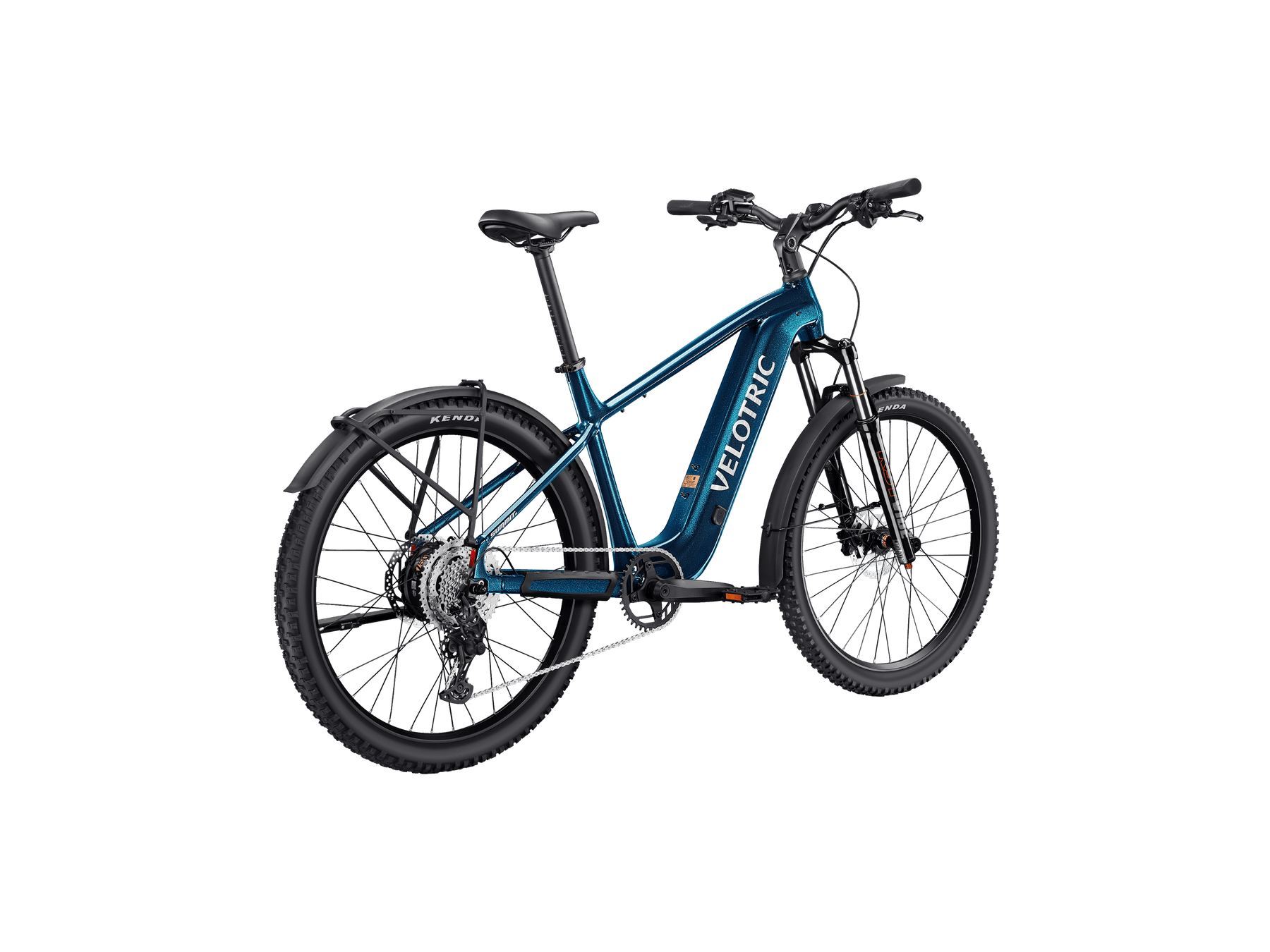

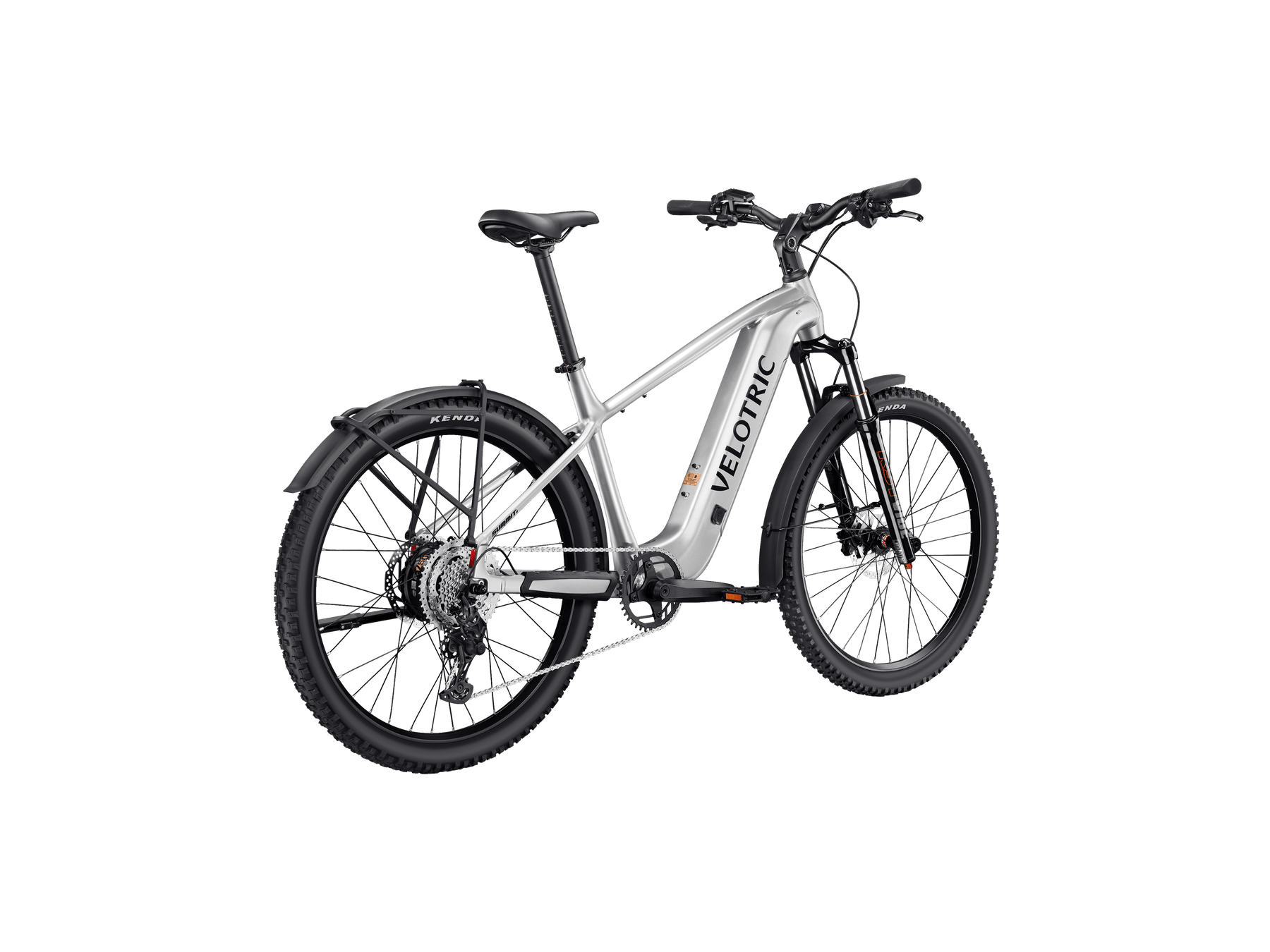

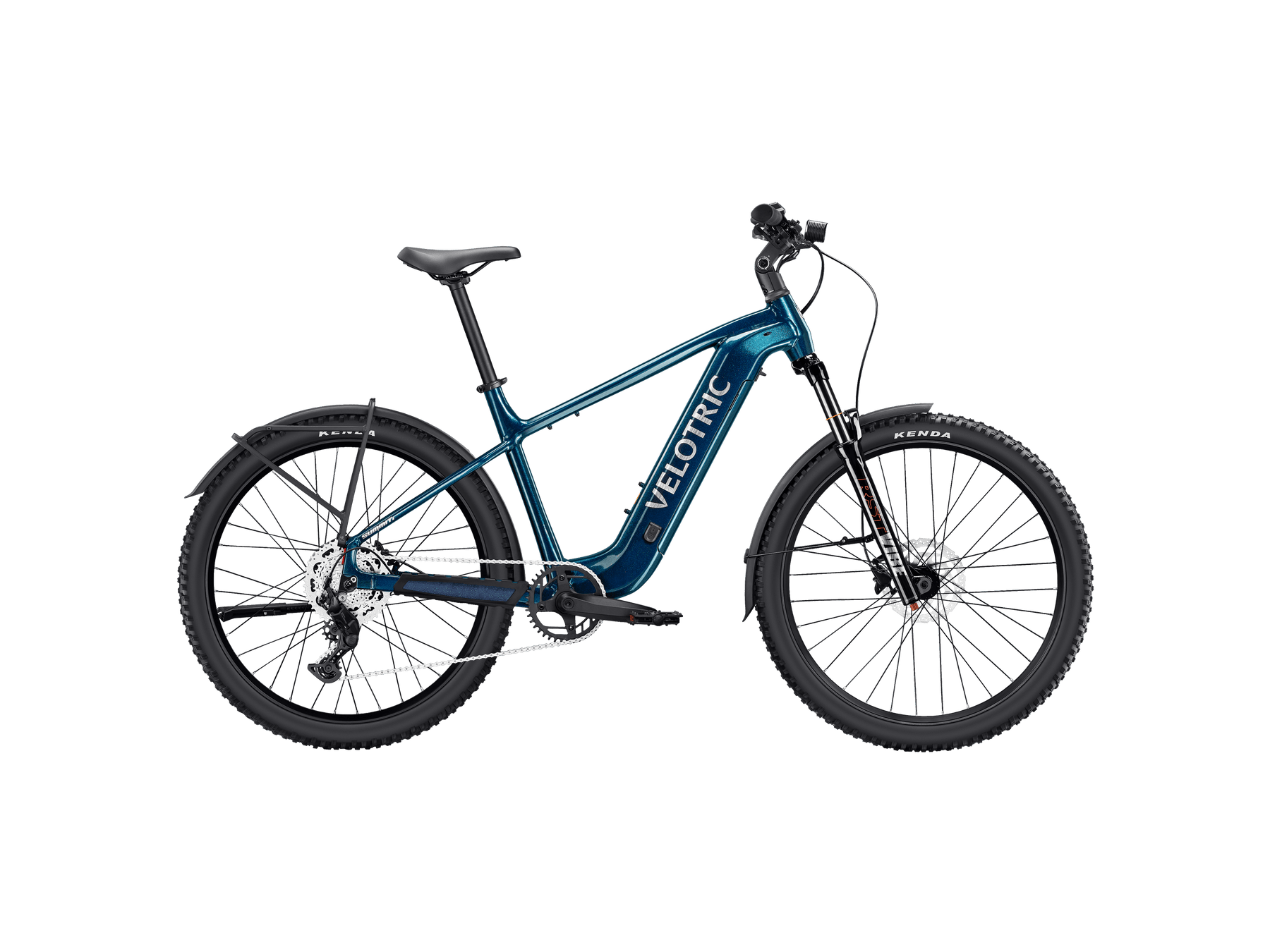

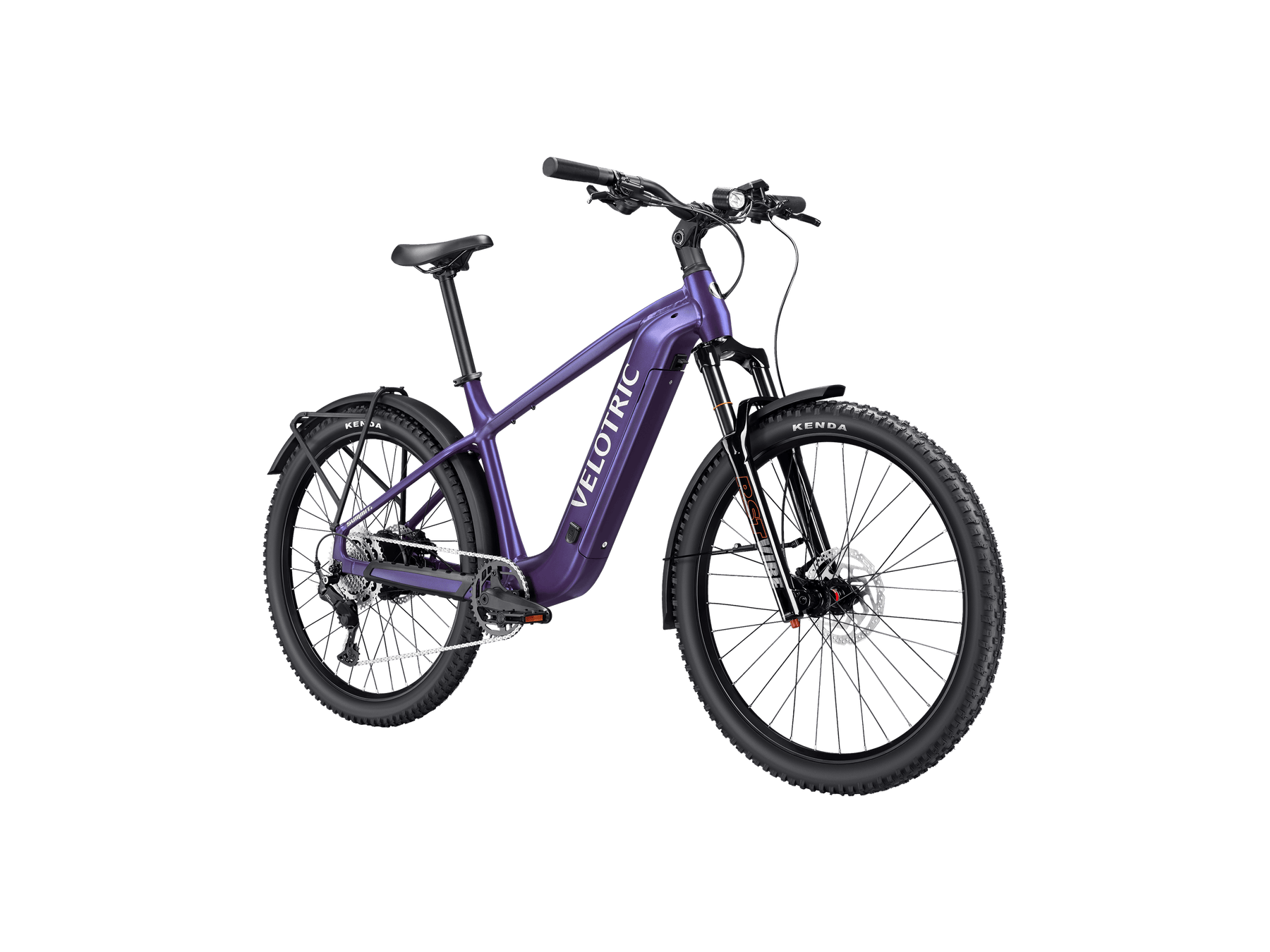

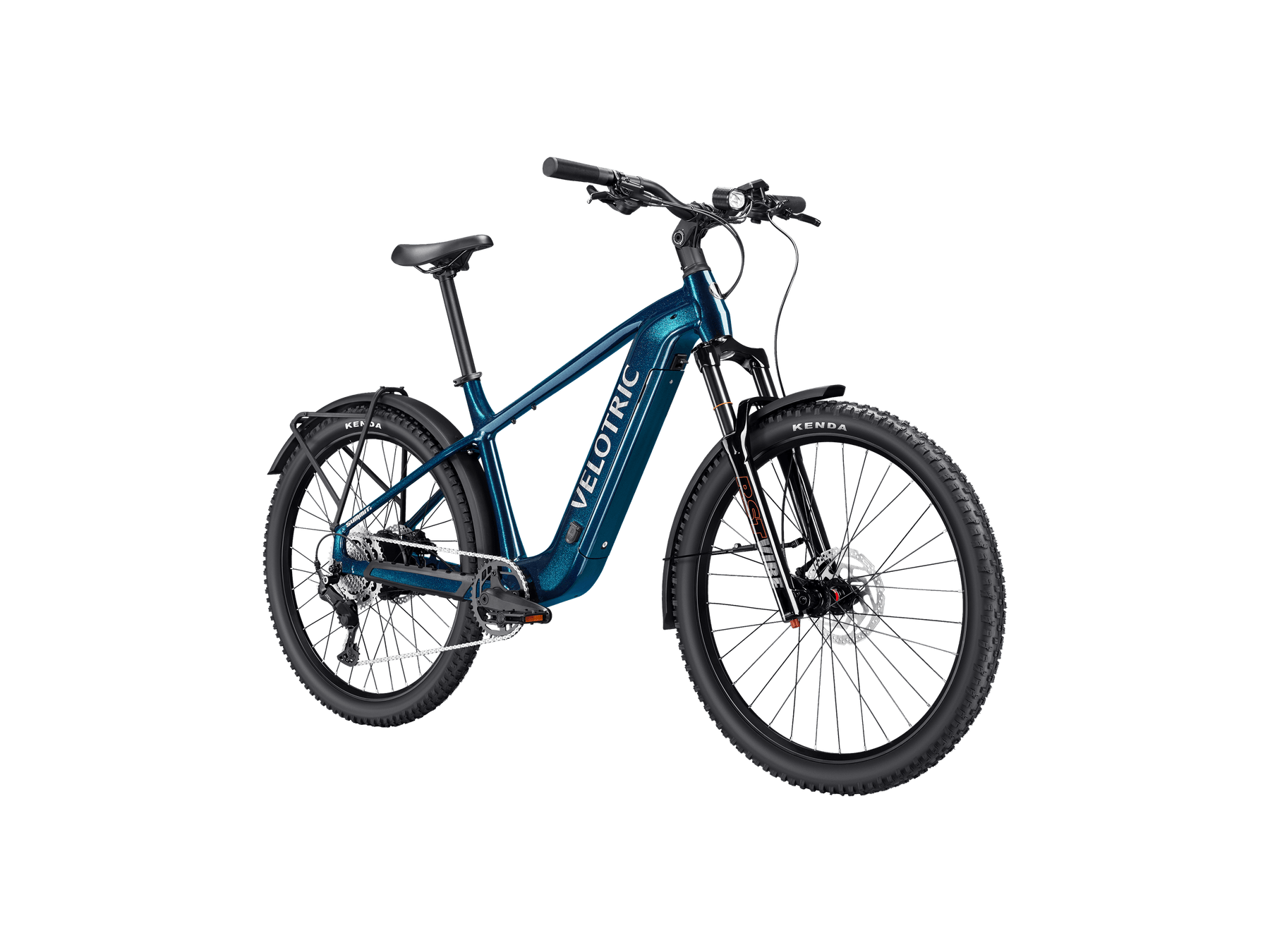

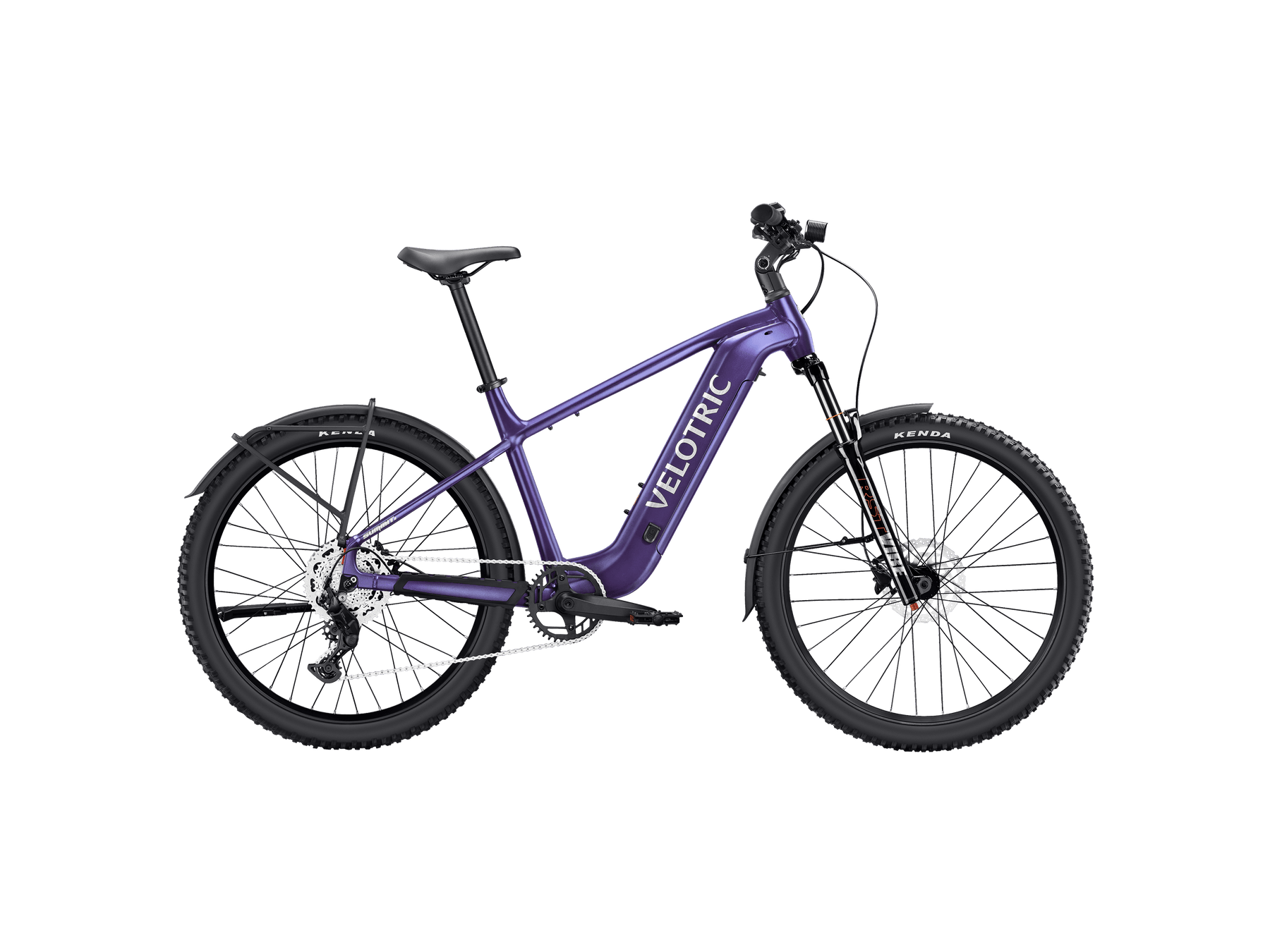

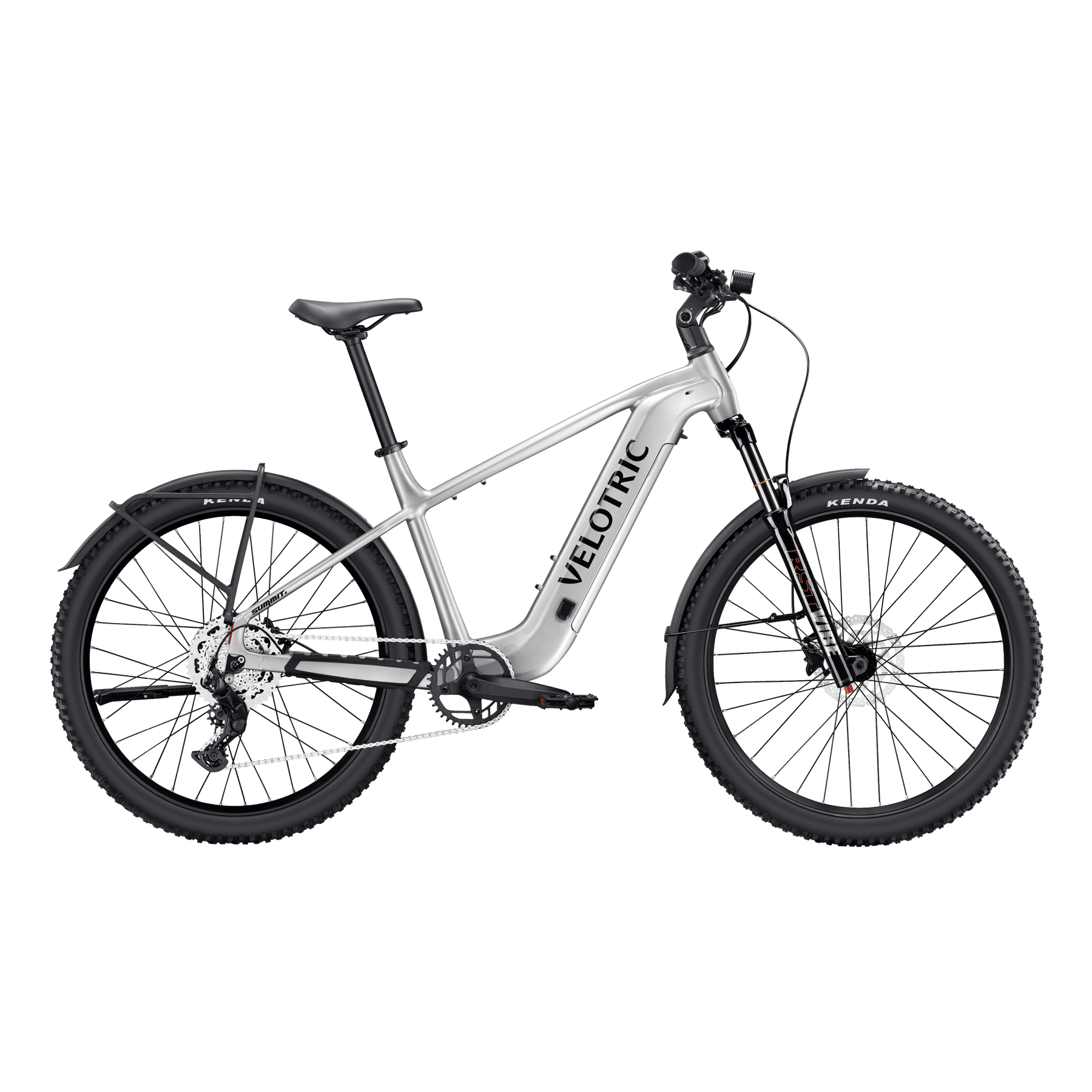

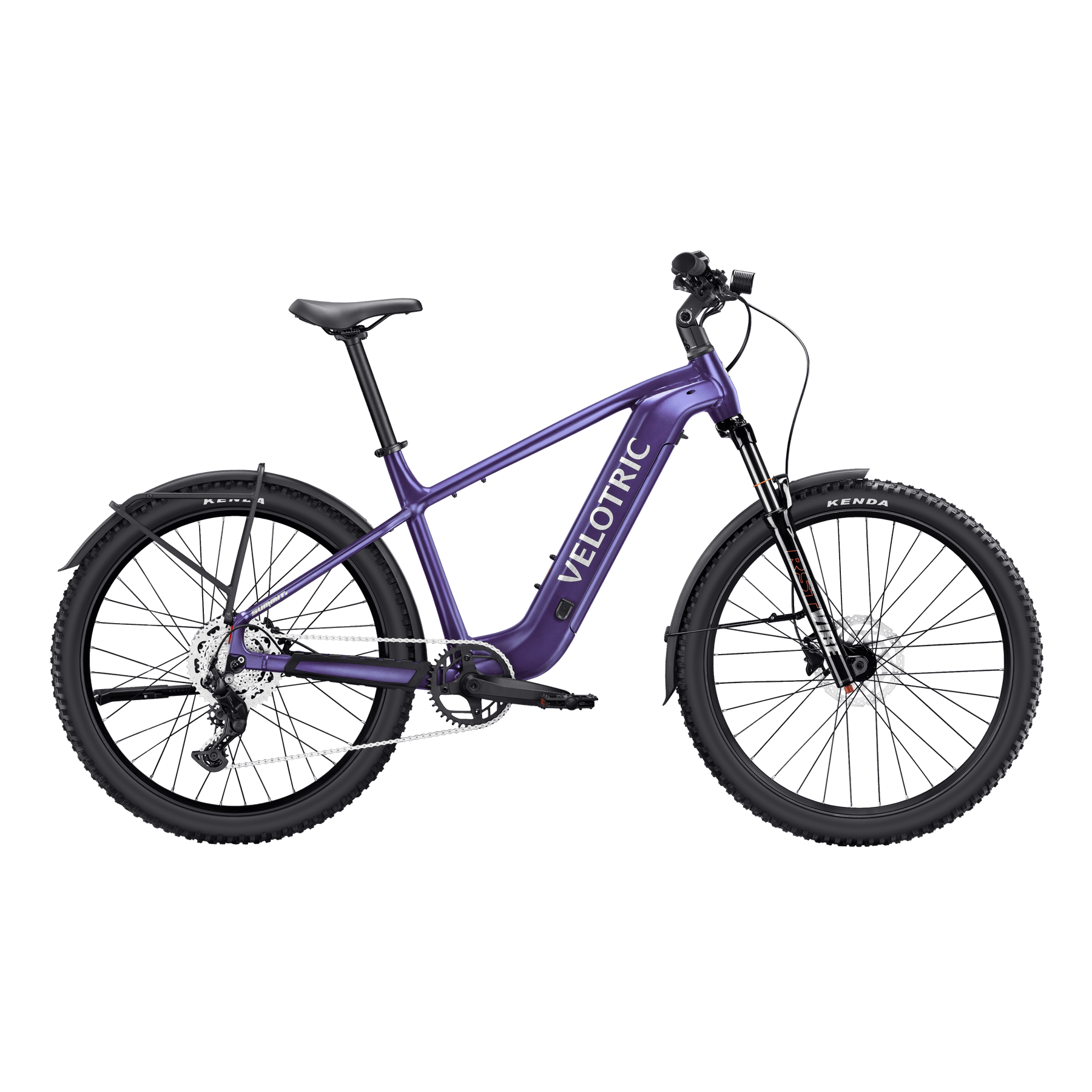

| Colors | Galaxy Purple, Ocean Blue, Glacial Silver |
| Frame | Step-Over |
Size Guide
| Bike Size | Regular / Large |
| User Height Range | Regular: 5'2'' ~ 5'10'' Large: 5'7'' ~ 6'5'' |
Electronics
| Motor Hub | 48V, 750W (1300W Peak Power), 100Nm |
| Battery | 48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL2271 |
| Cell | Samsung/LG 21700 cell, Certificated by UL2580 |
| Charger | 48V, 3A Fast Charger |
| Display | 2.0" Left-mounted Full-color Display with High Brightness, Bluetooth, NFC |
| SensorSwap™ | Torque and Cadence Sensor |
| USB Port | USB Type-C phone Charge |
| Throttle Assist | Trigger-control, Removable |
| Pedal Assist Modes | 4 Riding Modes + Pulse Mode / Ride Tuning |
| Rear Light | Brake highlight, Turn Signal |
| Front Light | 500LM High-output Integrated LED, Adjustable Angle |
| Water Resistant | IPX6 |
| App & Apple Find My™ | Apple Find My & Android Find Hub, NFC Card Unlock |
Frameset
| Frame | Triple-Butted Aluminum Alloy |
| Fork | RST Air Suspension 120mm Travel with Lock-out, Rebound Adjustable |
Speed & Range
| Max Speed (Default) | 20MPH |
| Max Speed Adjustable Range | 12~28MPH |
| Class | 1/2/3 |
| Throttle Range | 70Miles |
| Pedal Assist Range | 95Miles |
Brake
| Brake | SHIMANO MT200 Hydraulic Disc Brake |
| Rotors | 180mm Front and Rear |
| Brake Levers | Aluminum Alloy, with Power Cutoff |
Weight & Load
| Bike Weight | 57 lbs |
| Max Bike Load | 440 lbs |
| Rear Rack Load Capacity | Optional |
Cockpit
| Handlebar | Aluminum Alloy, Φ31.8mm, 740mm |
| Grips | Durable Ergonomic Grips, Lockable |
| Stem | Adjustable, Aluminum Alloy, Φ31.8mm, 60mm Length |
| Saddle | VELOTRIC Ergonomic Seat |
| Seatpost | Aluminum Alloy, Φ31.6mm, 350mm |
| Clamp | Aluminum Alloy, Quick Release |
Wheel
| Rims | Double-wall Aluminum Alloy |
| Front Hub | NOVATEC Aluminum Alloy, 15x110mm Thru-axle |
| Tire | Kenda 27.5x2.4" MTB Puncture Resistant Tires |
Supports
| Fenders | Plastic, Front and Rear Full Coverage |
| Rear Rack | Optional |
| Pedals | Plastic |
| Kickstand | Aluminum Alloy, Included, Rear Mount |
Certification
| UL Certification | UL2849 & UL2271 |
| ISO Standard | ISO 4210 |
Drivetrain
| Chainrings | BCD 104, 40T Narrow-Wide Chainring |
| Crankset | Aluminum Alloy, 165mm |
| Cassette | 9-speed, 11-46T |
| Chain | KMC XGlide 9-speed |
| Rear Derailleur | SHIMANO Cues, 9-speed |
| Shift Lever | SHIMANO Cues, 9-speed |

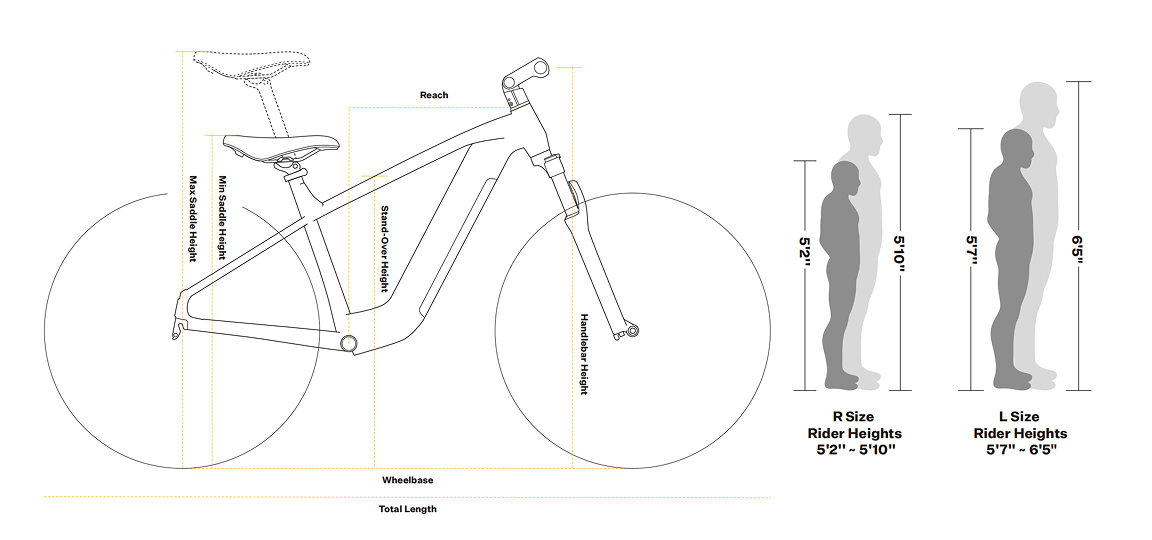

Geometry
Regular
Height
5'2"~5'10"
Reach
446mm
Handlebar Height
1000mm
Wheelbase
1210mm
Stand-Over Height
720mm
Min Saddle Height
790mm
Max Saddle Height
1000mm
Total Length
1930mm
Large
Height
5'7"~6'5"
Reach
459mm
Handlebar Height
1050mm
Wheelbase
1224mm
Stand-Over Height
720mm
Min Saddle Height
830mm
Max Saddle Height
1050mm
Total Length
1943mm
