Manufacturer's Description:
Key West, FL – The southern tip of the US. Where One Road Ends, Another Begins.
It's the end of the road for most, but it's right where the Key West's journey begins! At 54lbs, the Key West is the lightest ebike in our line up and is ready for you to embark on your next journey. Take it to the beach, cruise around your neighborhood, or crush your morning commute, the Key West does it all.
Lightweight for ease of putting on your bike rack or in the back of your truck. Brand new BAFANG TFT Smart Display keeps you connected and in control of customizing your riding experience. Integrated lighting and turn signals keep you seen and our signature oversized 203mm brake rotors help you stop on a dime. The Key West keeps you comfortable with an adjustable stem and ergonomic hand grips.

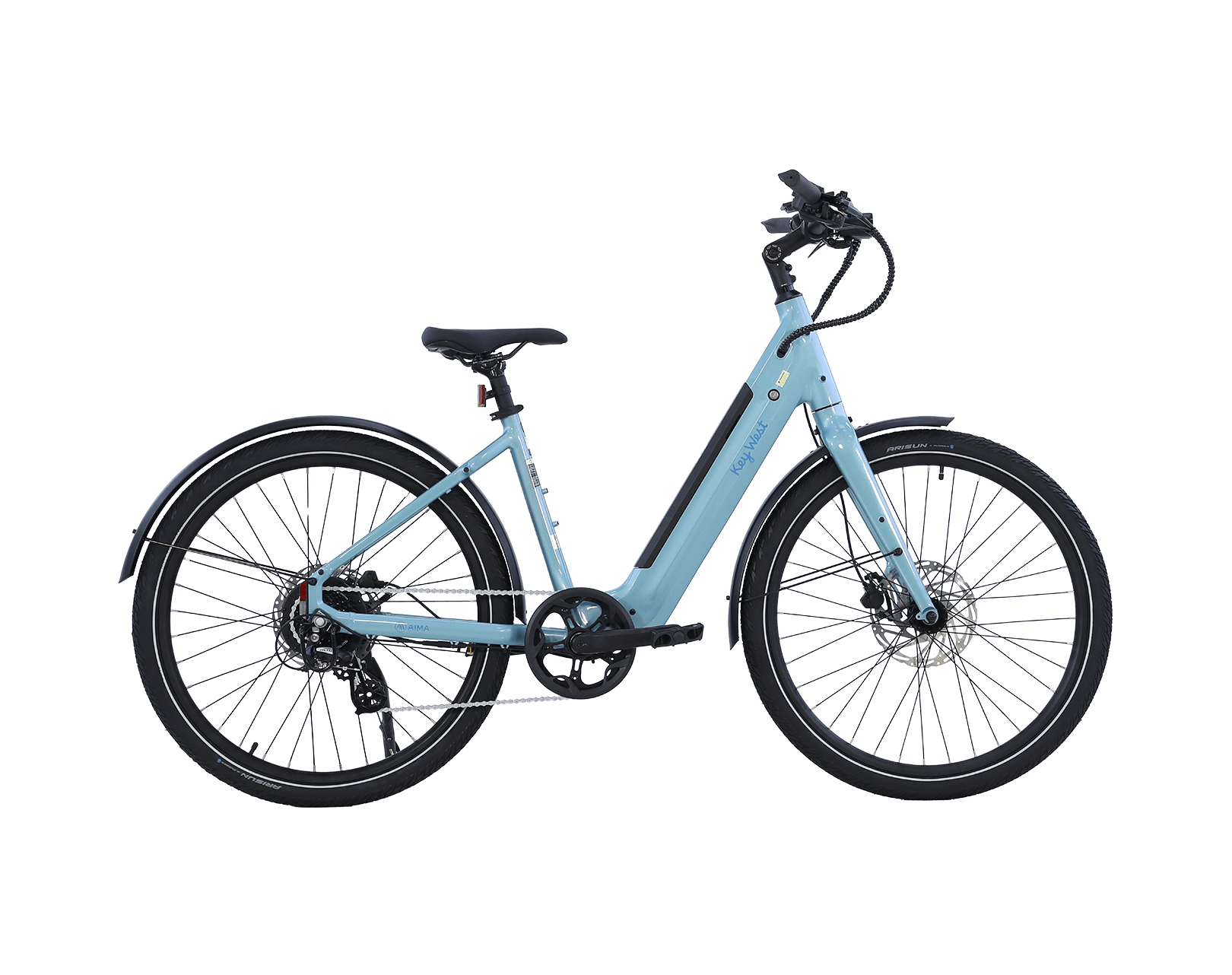

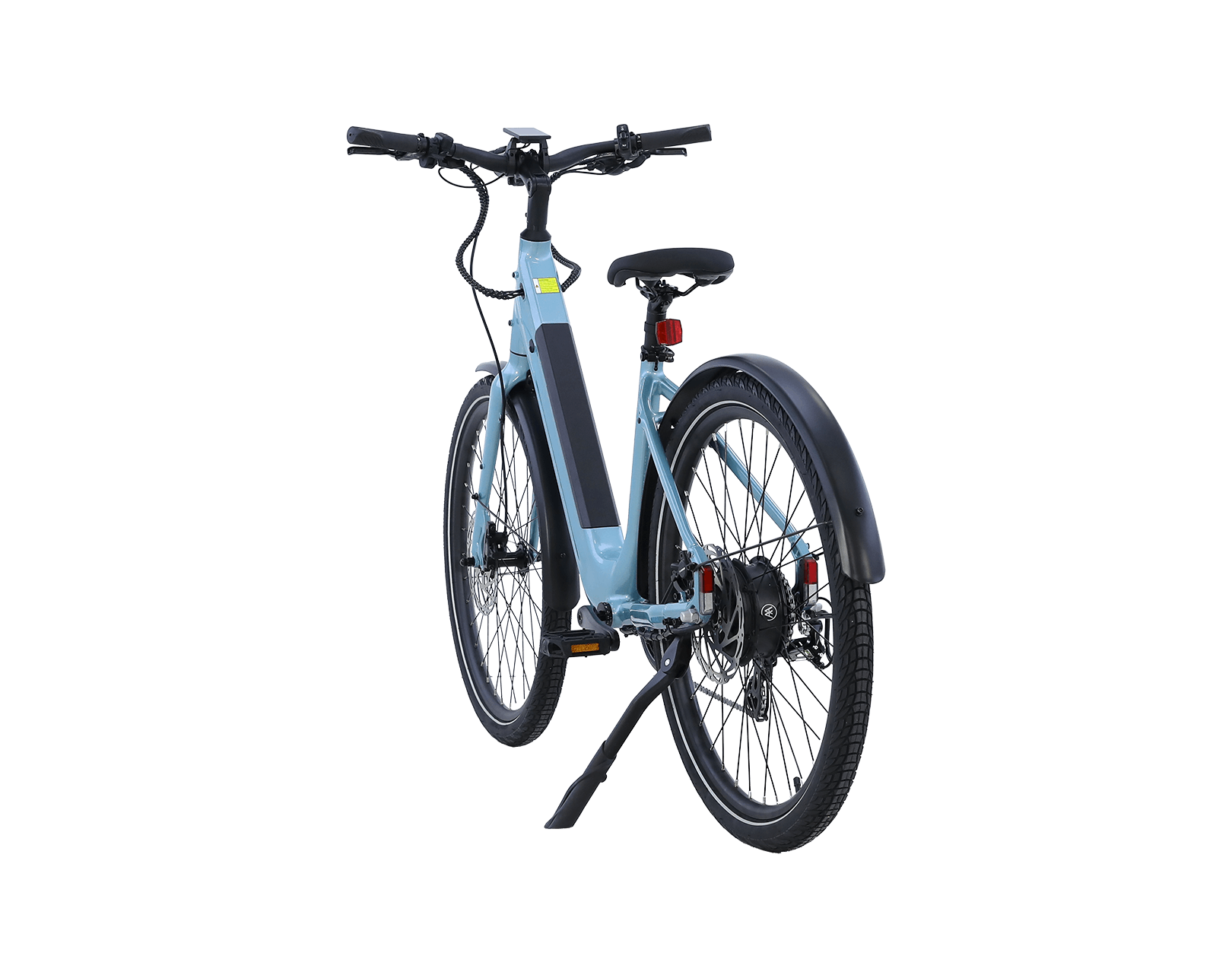

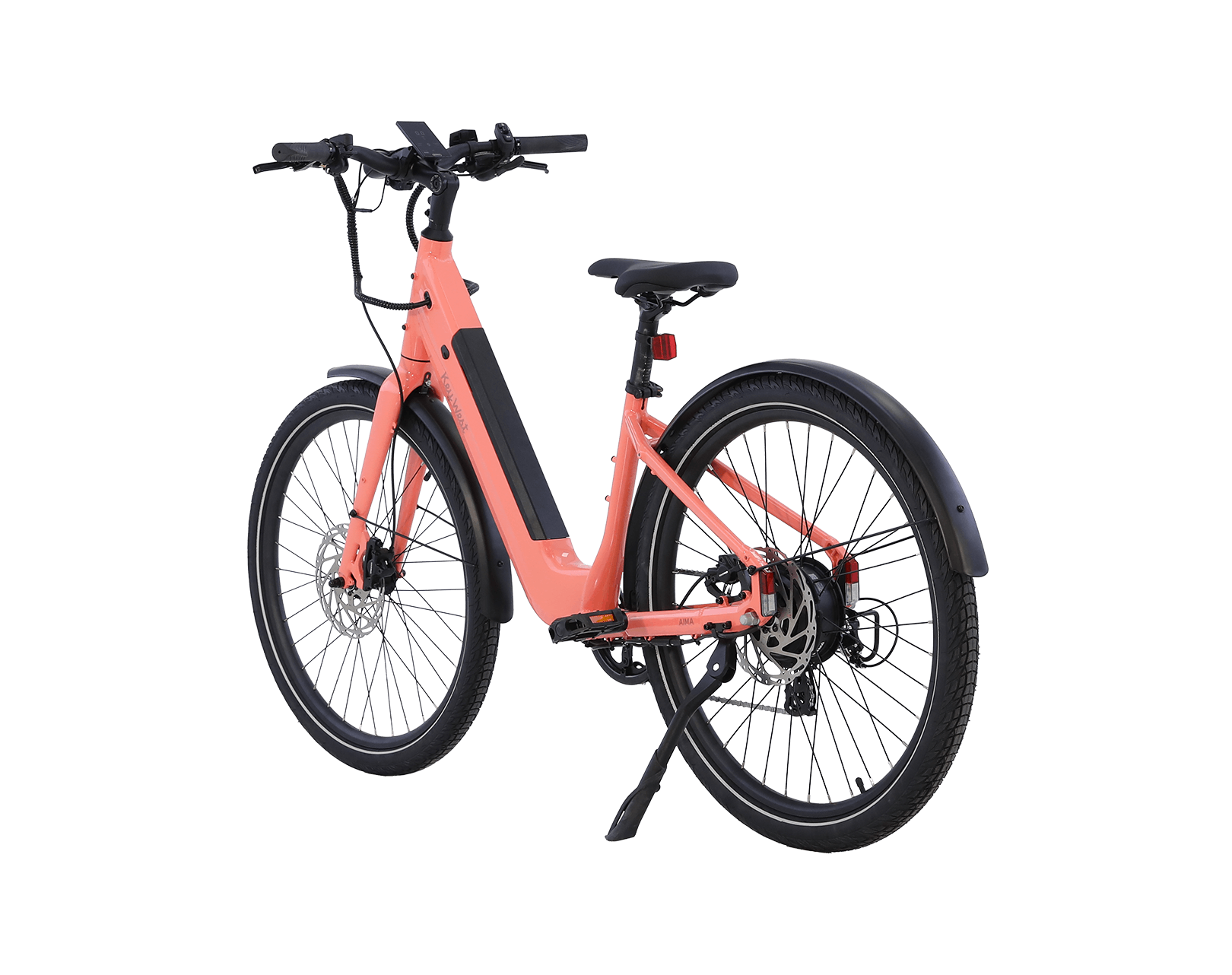

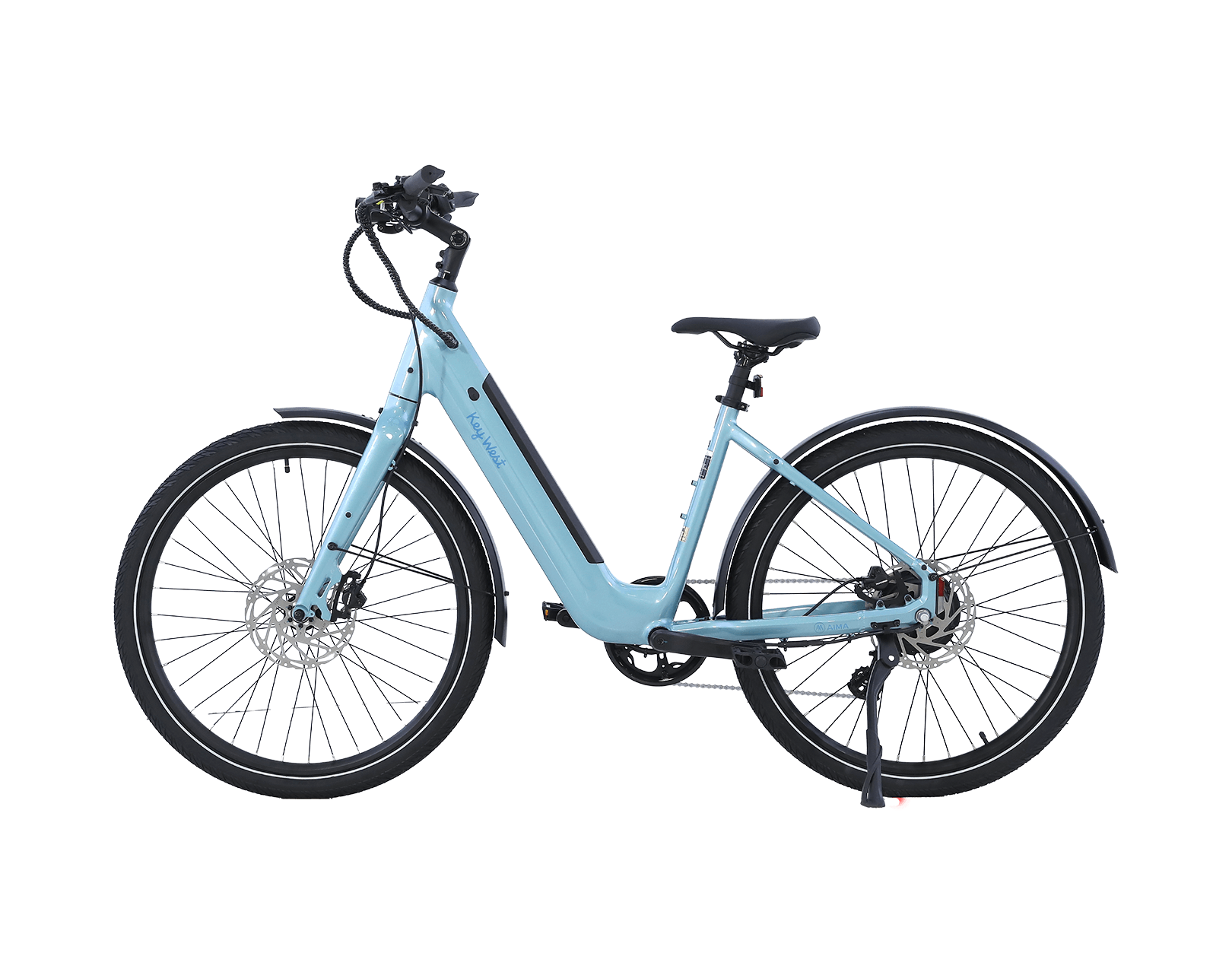

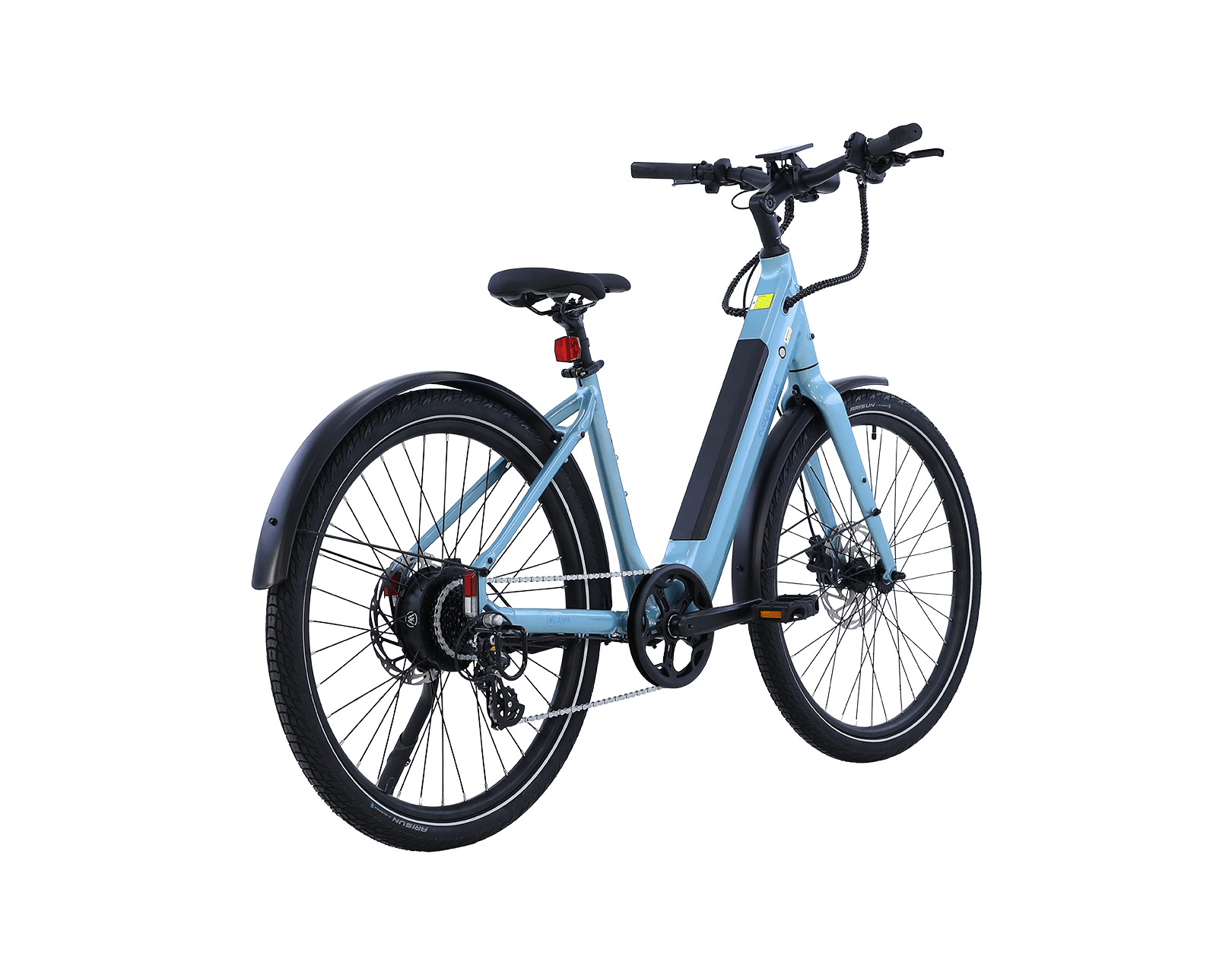

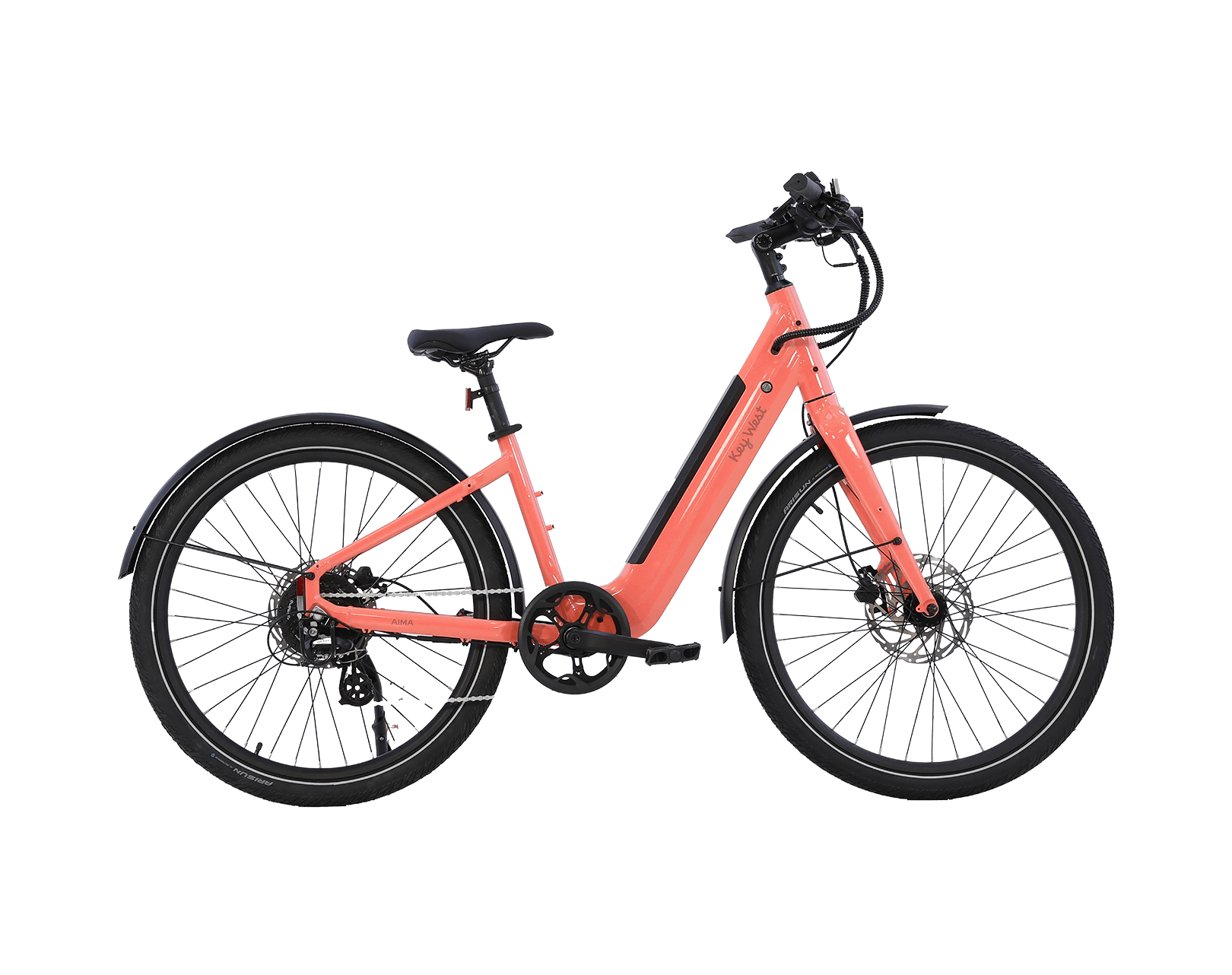

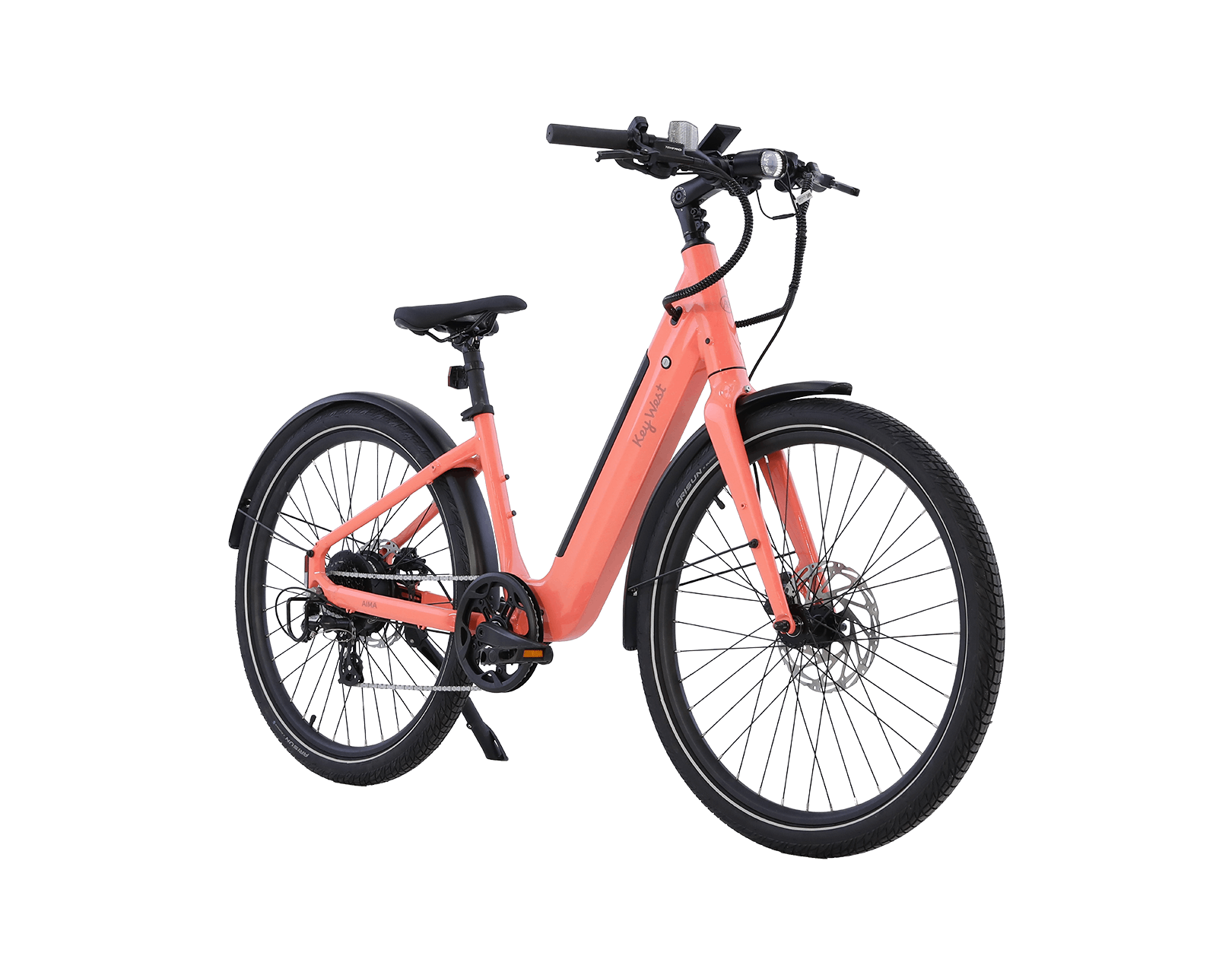

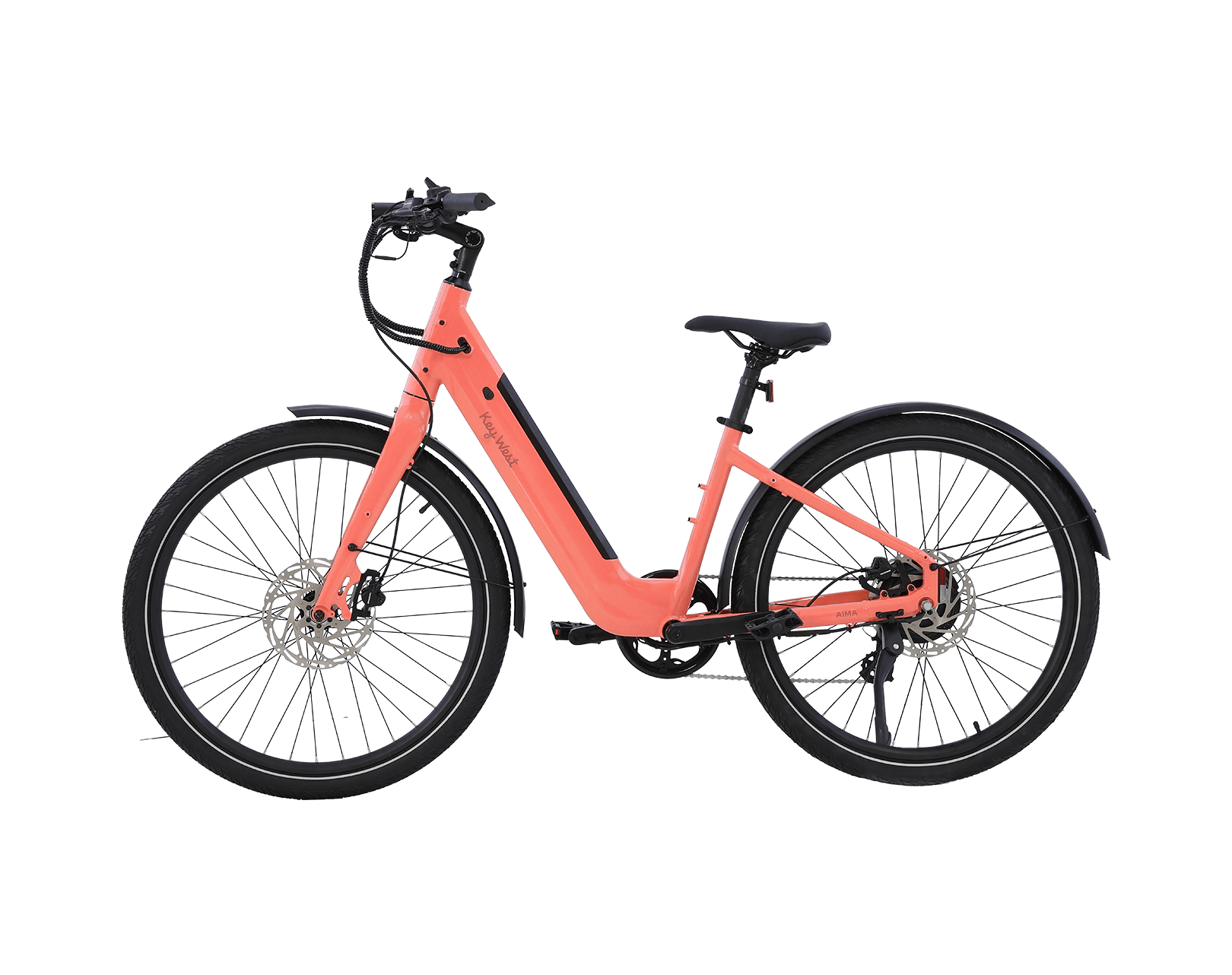

Key West is the next generation of lightweight cruiser ebikes made by AIMA!
Specifications
| MOTOR | 500W, 48V Brushless Rear Hub Motor |
|---|---|
| THROTTLE | Throttle on Demand |
| DISPLAY | BAFANG C010 4.0 inch TFT Smart Display w/Navigation, Incoming call & Text message alerts |
| SPEED | Up to 28 MPH Pedal Assist, 20 MPH Throttle |
| BATTERY | Removable Internal Lithium-ion 48V, 12.8Ah (614Wh) |
| LIGHTING | Integrated Headlight, Tail Light, and Turn Signals |
| PEDAL SENSOR | Customizable w/Torque & Cadence Modes |
| PEDAL ASSIST | 5 PAS Levels |
| CHARGER | 48V, 3 Amp Fast Charger, about 5 Hours to a Full Charge |
| RANGE | 24 to 50 Miles |
| FRAME | 6061 Single-Butted Aluminum Alloy Frame with Internal Battery |
| WEIGHT | 54 lbs. (w/o fenders) |
| PEDALS | 9/16" Alloy Platform |
| FORK | Lightweight Rigid Aluminum Fork |
| WEIGHT LIMIT | 320 lbs. |
| KICKSTAND | Aluminum Alloy Kickstand |
| CRANKSET | 170mm w/ 46T Chainring |
| SHIFTER | Shimano 8 Speed |
| CASSETTE | 8 Speed, 12-32T |
| BRAKES | Tektro Hydraulic Disc Brakes, 203 mm Rotors |
| CHAIN | 8 Speed |
| RIMS | Double Wall Aluminum Alloy |
| SPOKES | Black Stainless 12G Front / 12G Rear |
| TUBES | Butyl Rubber |
| FRONT HUB | Aluminum Alloy Disc |
| TIRES | 27.5" x 2.1" |
| SADDLE | AIMA Lightweight Performance Saddle |
| SEATPOST | Aluminum Alloy, 30.9mm 2-Bolt Clamp, 300mm |
| STEM | Threadless, 31.8mm, 10°-80° Rise, Length: S: 90mm | M: 110mm |
| SEAT CLAMP | 34.9mm Quick Release |
| HANDLEBARS | Aluminum Alloy Double Wall, 31.8mm, 680mm |
| HEADSET | Sealed Bearing Headset |
| GRIPS | Ergonomic Comfort |
Range
An ebike's battery life is influenced by several factors that can affect its maximum range. While our ebikes can achieve up to 60 miles of range under ideal riding conditions, range can vary from 20 - 60 miles based on many contributing factors.
Here's a list of the most common factors that affect range, as well as what you can do to maximize your riding time.
-
Pedal Assist: Higher levels of pedal assist will allow for an easier ride, but will also draw more power from the battery. Lower pedal assist levels are better for getting as many miles as possible out of your battery.
-
Average Cruising Speed: Riding slower will decrease the amount of energy you lose to wind resistance as the bike pushes you forward. Slower speeds will extend battery life.
-
Tire Pressure: Keeping your tires inflated to the recommended pressure can help increase your range. Maintaining a proper tire pressure not only increases your range, but also helps prevent pinch flats! For most riding situations, checking your tire pressure at least once a week will keep your ride safe and energy-efficient.
-
Load Weight: Carrying a heavier load can decrease your range. This includes the total load of both the weight of the rider and any cargo you may be carrying. More weight takes more time and energy to get up to speed, negatively affecting your range. It's best to keep loads light whenever possible if you're looking to extend your range.
-
Terrain & Elevation: In general, riding over smooth and flat terrain will give you a longer range. Hills and rough terrain can greatly impact your maximum range, especially on higher assist levels.
-
Wind: That's right! The wind can affect your battery range too! Riding into a headwind will decrease your range, but if you're able to catch a tailwind, you'll actually see that you'll gain more range! Be mindful of which way the wind is blowing when you are riding. If you've been riding in a tailwind, turning around will take more energy from the battery to get you home.
- Ambient Temperature: Riding in cold weather will impact the battery's ability to function optimally. A good rule of thumb is, if you're comfortable, then the battery is comfortable too. This also goes for storing the battery too!
