Manufacturer's Description:

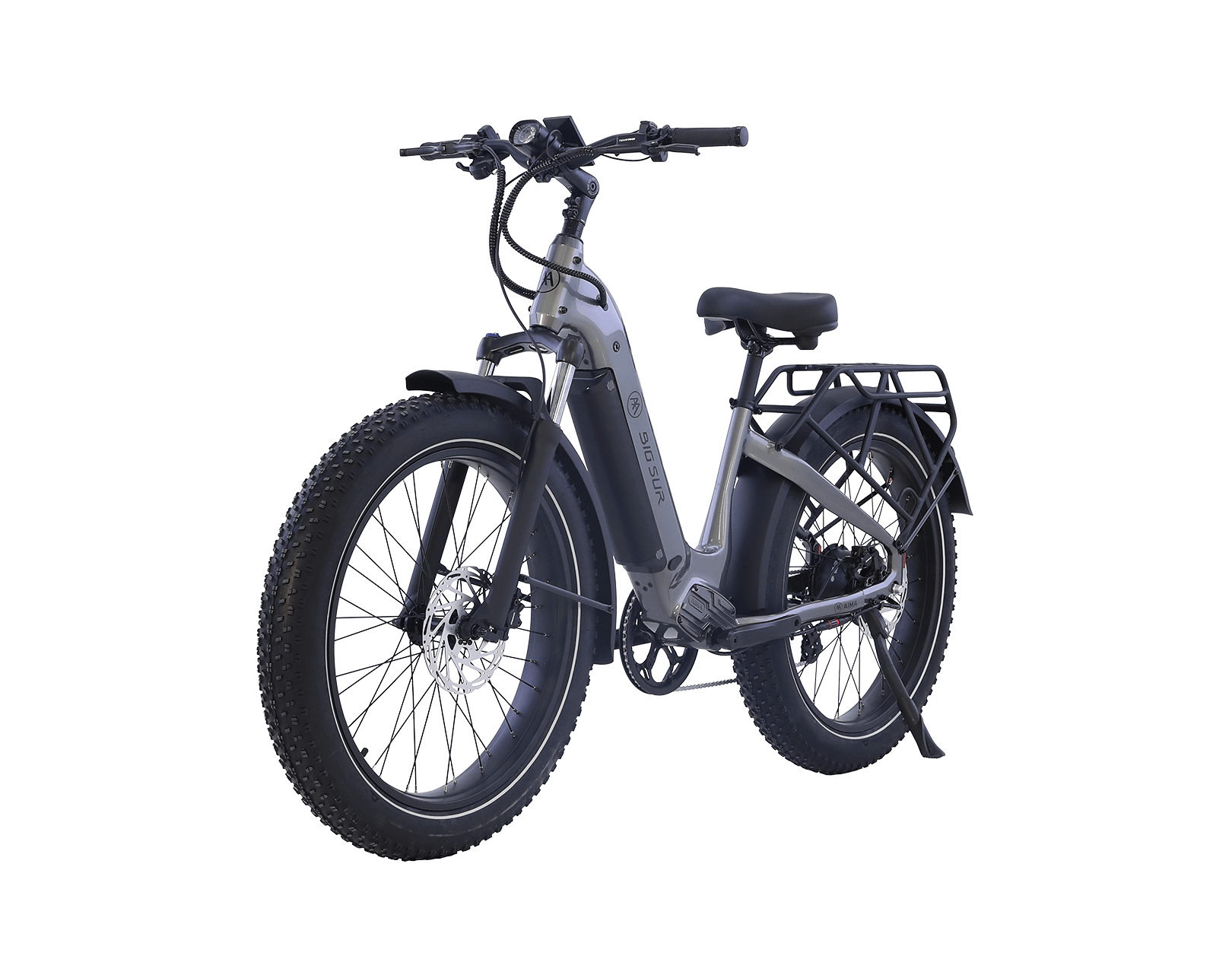

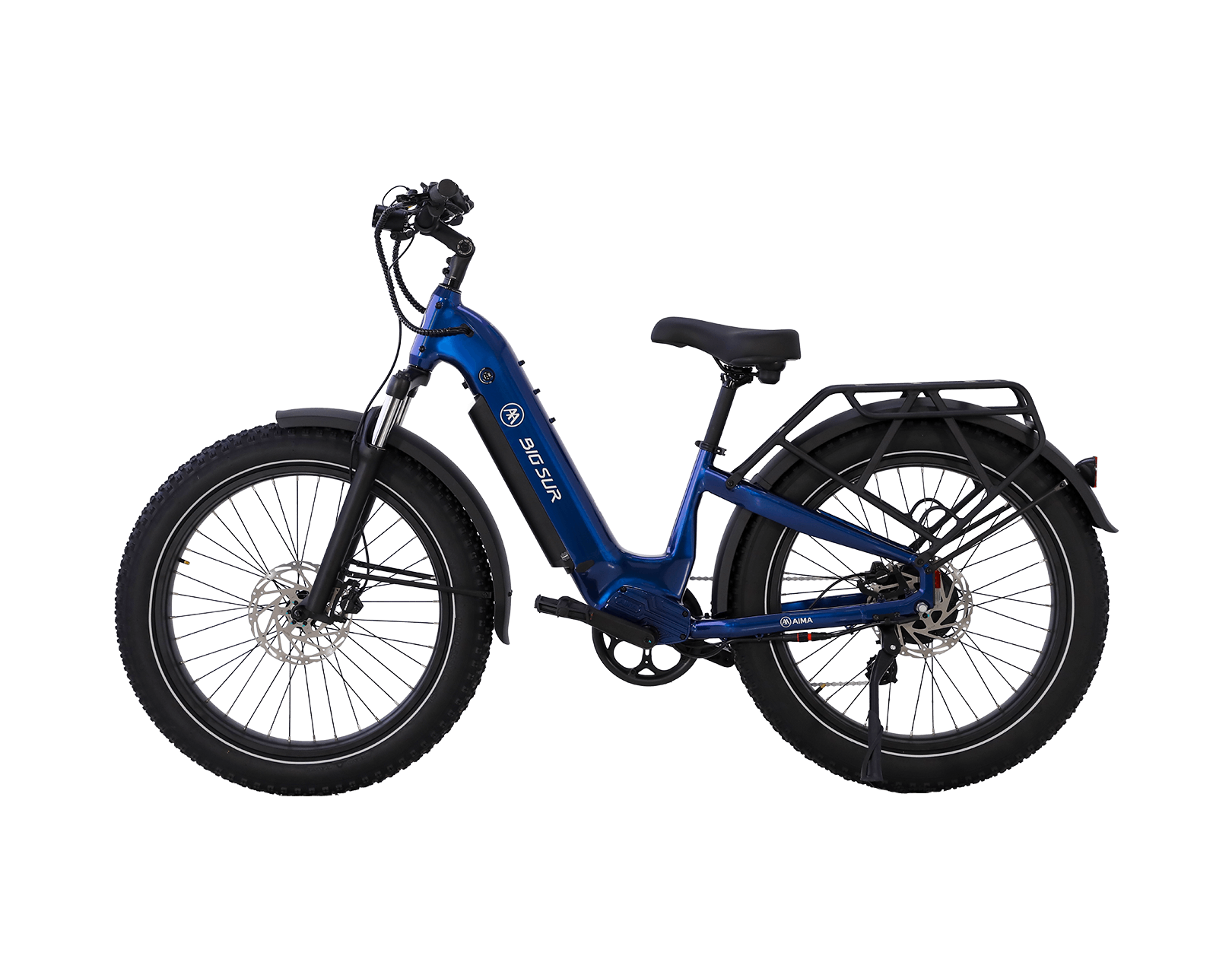

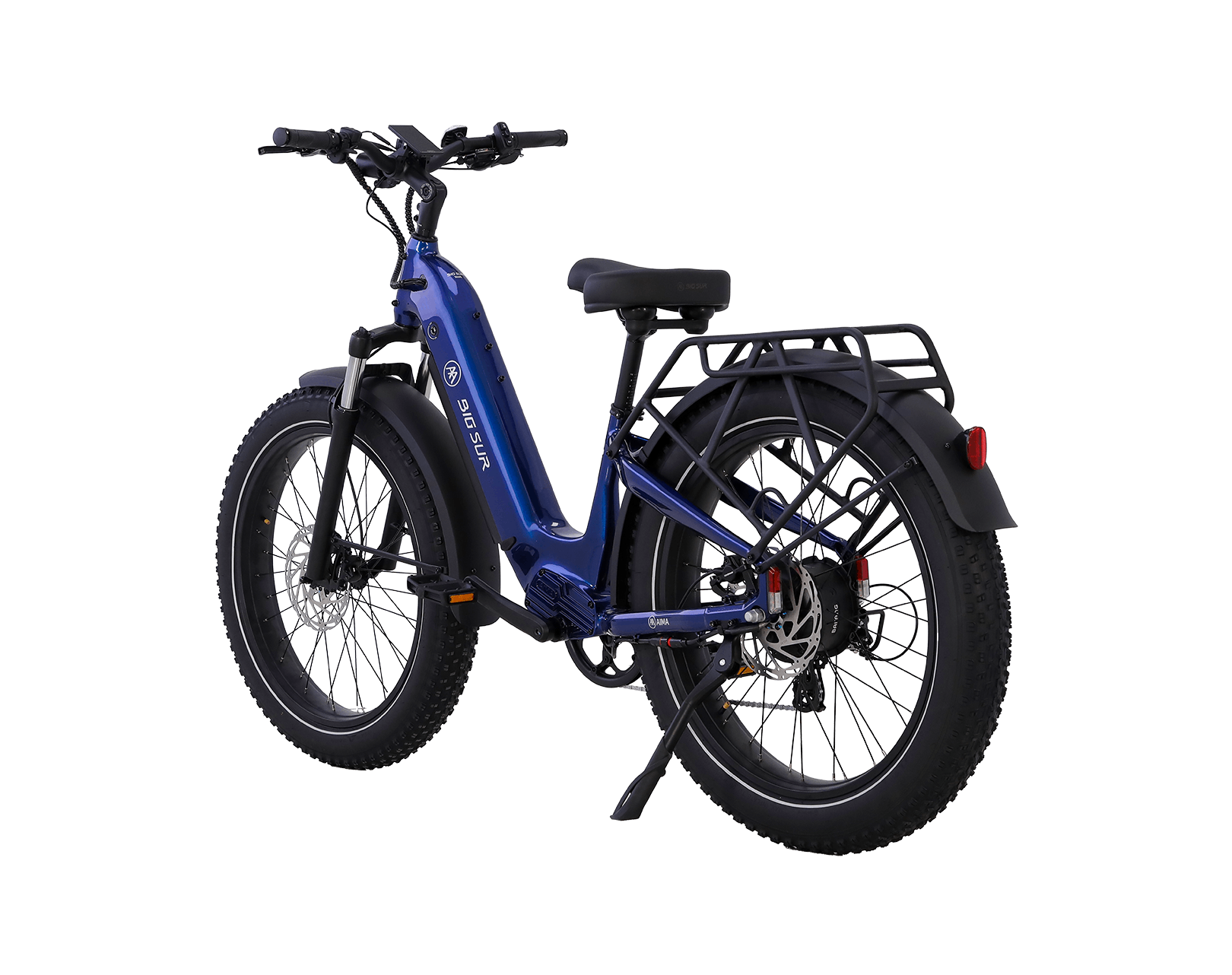

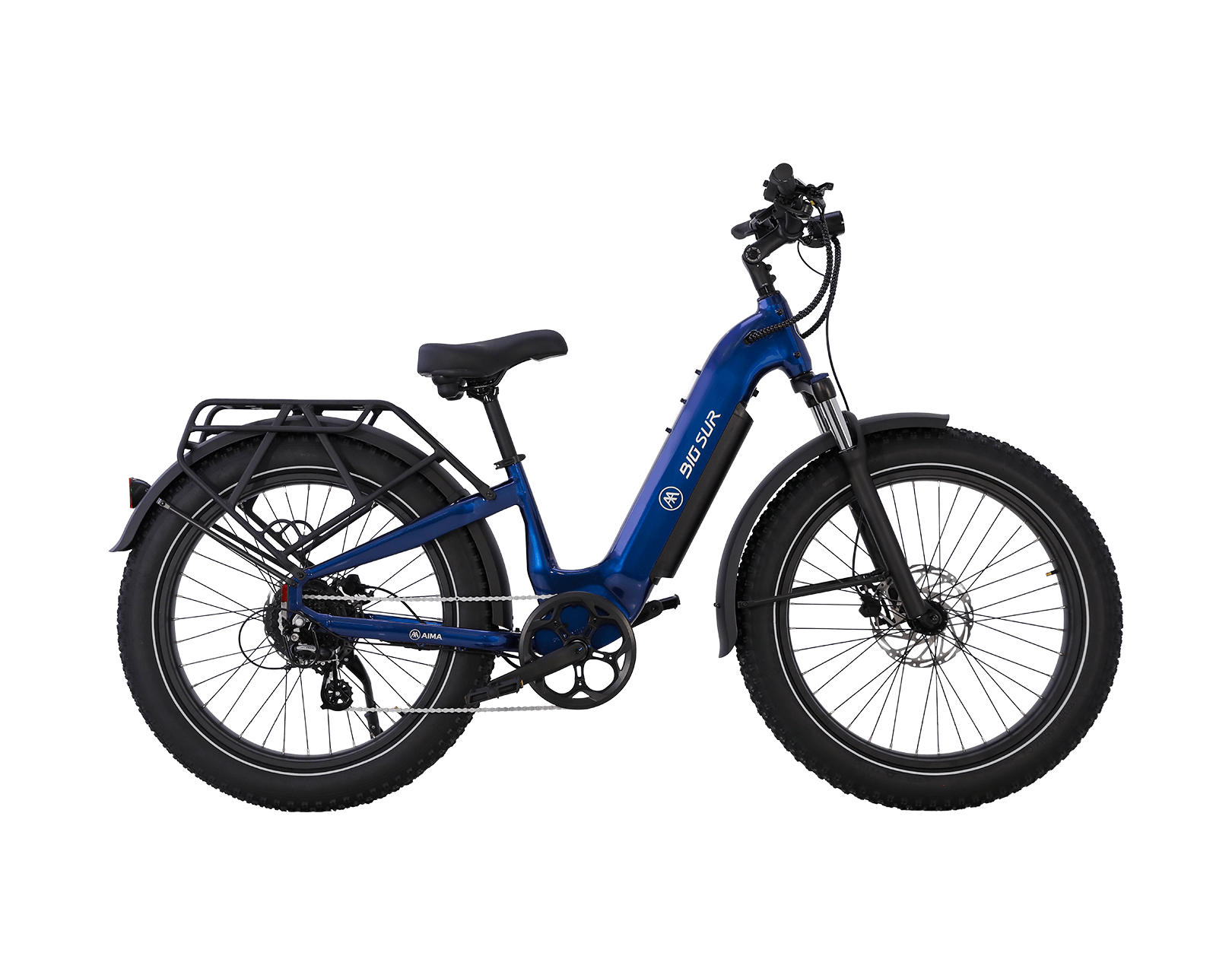

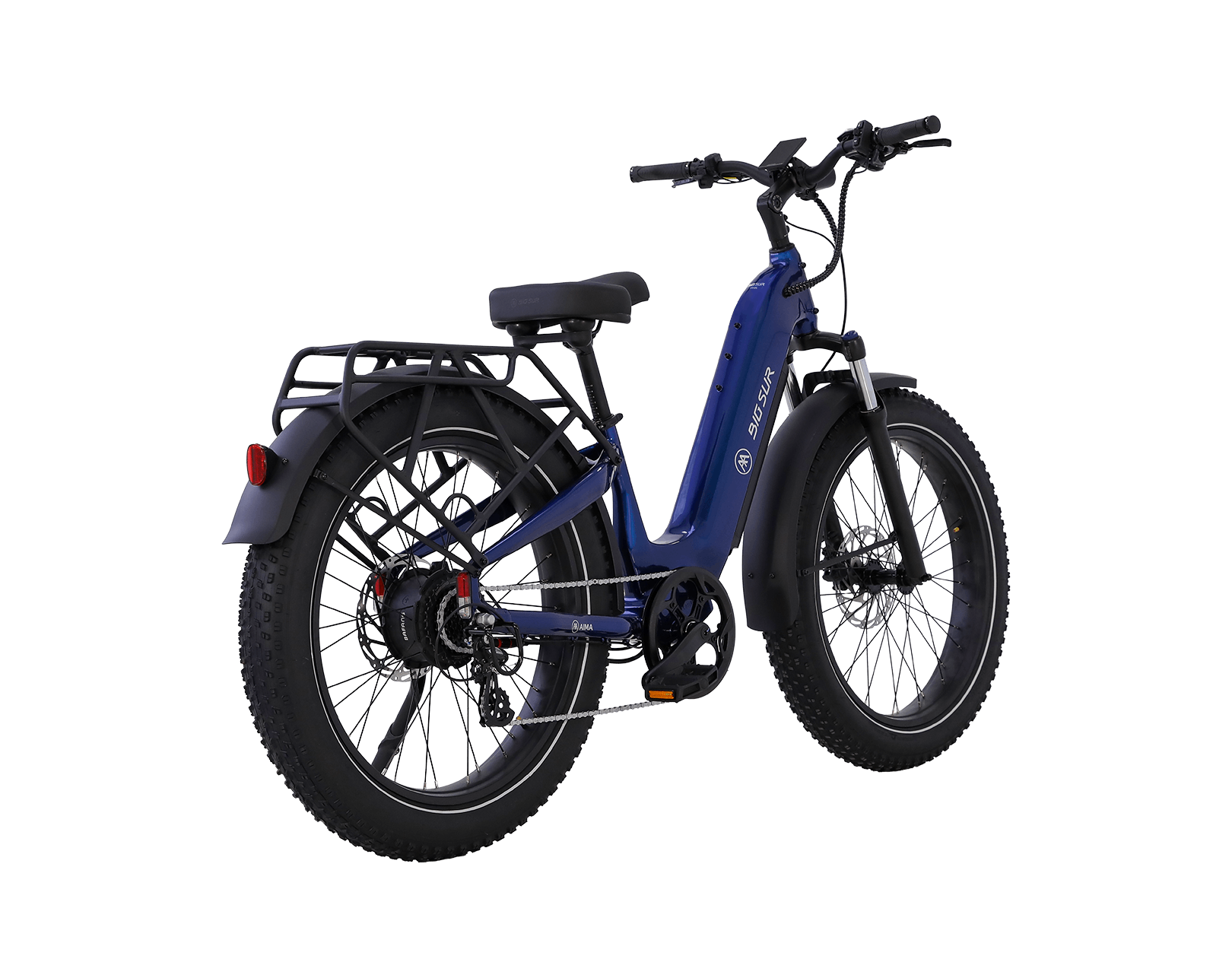

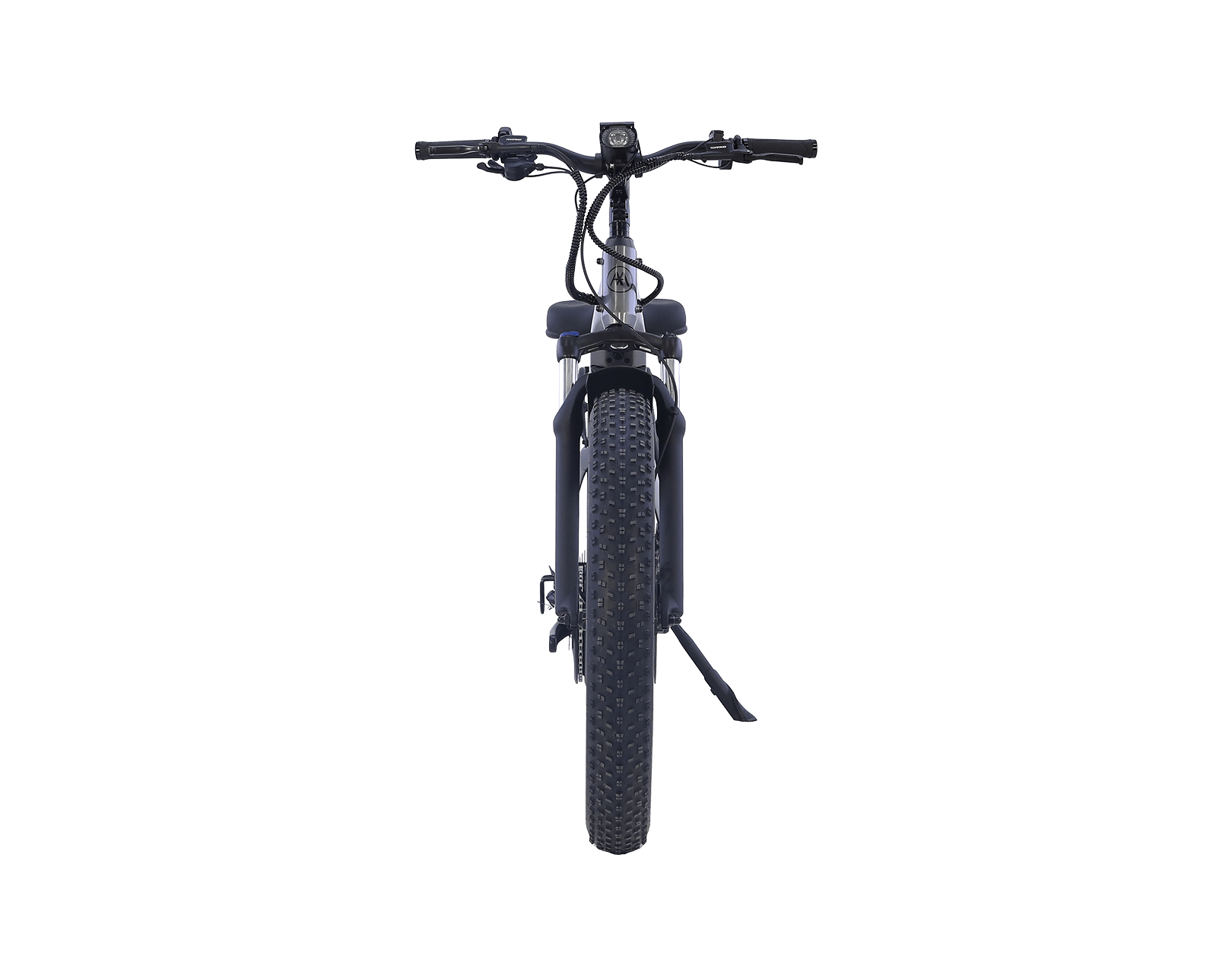

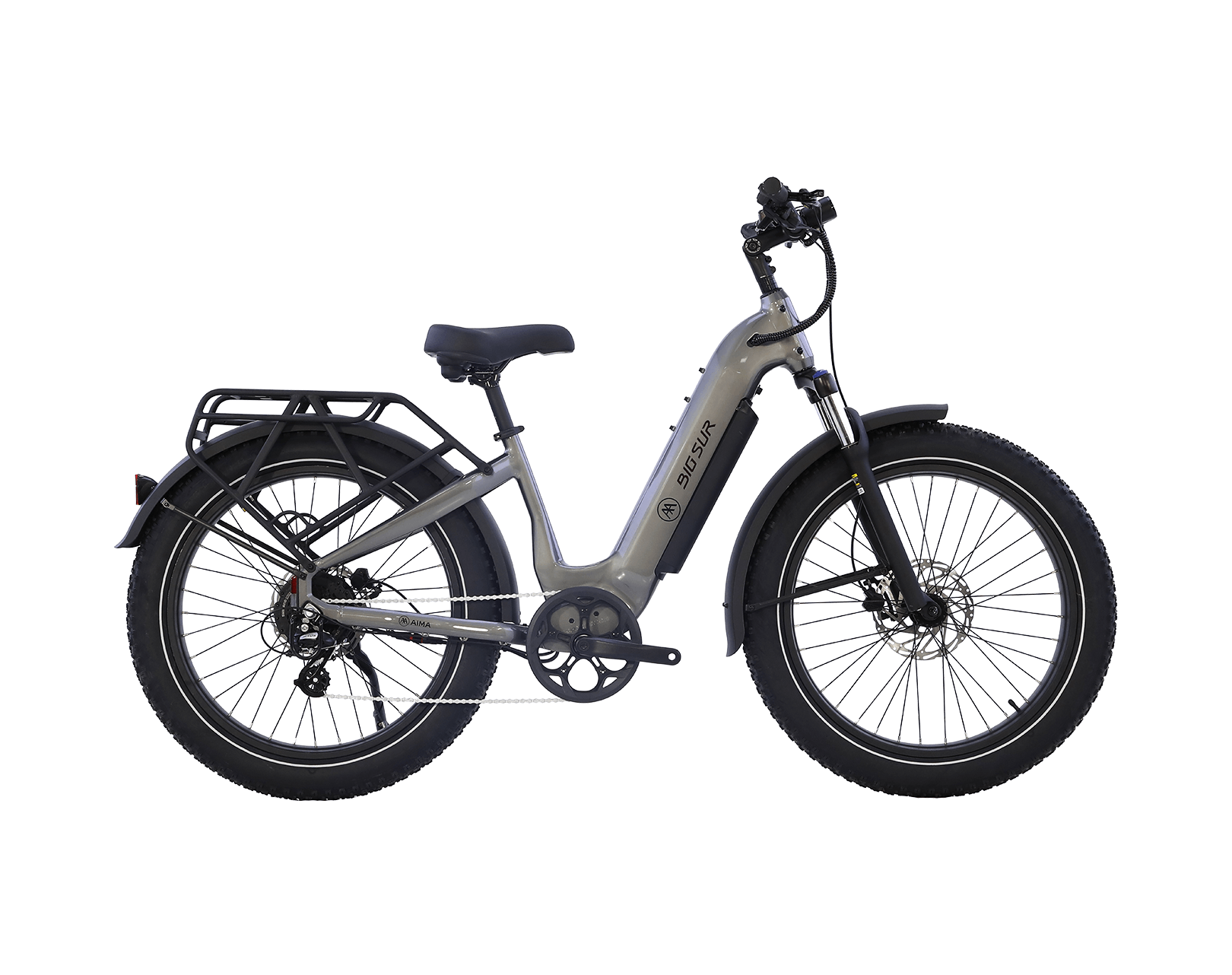

AIMA E-Bike is proud to present the Big Sur, our first e-bike model. Inspired by the rugged terrain and sweeping vistas of California's Big Sur coastline, infused with a deep appreciation for the beauty of the natural world, and a commitment to cutting-edge engineering, crafted with meticulous attention to detail, AIMA E-Bike is designed in California and manufactured in the world's largest E-Mobility factory. We prioritize safety, performance, aesthetics, and integrity in every step of the manufacturing process, with a mission to deliver you the perfect companion for your next big ride.
Specifications
| MOTOR | Rear Hub Motor, BAFANG, 750W Peak Power: 1200W | Max Torque: 85Nm |
|---|---|
| THROTTLE | Throttle on Demand |
| DISPLAY | BAFANG E-system TFT Display Smart Function: FindMy, Navigation, Calls, Notifications |
| CERTIFICATION | UL2849 Compliant |
| SPEED | 20 MPH |
| BATTERY | Removeable Internal Lithium-Ion, 48V, 20Ah (960Wh) |
| LIGHTING | Integrated Headlight, Tail Lights, and Turn Signals w/Horn |
| PEDAL SENSOR | Customizable w/Torque & Cadence Modes |
| PEDAL ASSIST | 5 PAS Levels |
| CHARGER | 48V, 3 Amp Fast Charger, 7-8 Hours to a Full Charge |
| RANGE | 40-75 miles |
| FRAME | 6061 Single-Butted Aluminum Alloy Frame |
| WEIGHT | 82lbs |
| PEDALS | 9/16" Alloy Platform |
| FORK | ZOOM Suspension Fork, 80mm Travel, Adjustable Preload, Lockout |
| PAYLOAD CAPACITY | 400lbs |
| KICKSTAND | Aluminum Alloy Kickstand |
| CRANKSET | 170mm w/ 52T Chainring |
| SHIFTER | Shimano 8 Speed |
| DERAILLEUR | Shimano 8 Speed |
| CASSETTE | 8 Speed, 11-34T |
| BRAKES | Tektro Hydraulic Disc Brakes, 203 mm Rotors |
| CHAIN | 8 Speed |
| RIMS | Double Wall Aluminum Alloy |
| SPOKES | Black Stainless 12G Front / 12G Rear |
| TUBES | Butyl Rubber |
| FRONT HUB | Aluminum Alloy Disc |
| TIRES | 26" x 4.0" |
| SADDLE | AIMA Comfort Saddle |
| SEATPOST | Aluminum Alloy, 30.9mm 2-Bolt Clamp, 300mm |
| STEM | Threadless, 31.8mm, 7° Rise, 75mm Length |
| SEAT CLAMP | 34.9mm Quick Release |
| HANDLEBARS | Aluminum Alloy Double Wall, 31.8mm, 680mm |
| HEADSET | Sealed Bearing Headset |
| GRIPS | Ergonomic Comfort |
Range
An ebike's battery life is influenced by several factors that can affect its maximum range. While our ebikes can achieve up to 60 miles of range under ideal riding conditions, range can vary from 20 - 60 miles based on many contributing factors.
Here's a list of the most common factors that affect range, as well as what you can do to maximize your riding time.
-
Pedal Assist: Higher levels of pedal assist will allow for an easier ride, but will also draw more power from the battery. Lower pedal assist levels are better for getting as many miles as possible out of your battery.
-
Average Cruising Speed: Riding slower will decrease the amount of energy you lose to wind resistance as the bike pushes you forward. Slower speeds will extend battery life.
-
Tire Pressure: Keeping your tires inflated to the recommended pressure can help increase your range. Maintaining a proper tire pressure not only increases your range, but also helps prevent pinch flats! For most riding situations, checking your tire pressure at least once a week will keep your ride safe and energy-efficient.
-
Load Weight: Carrying a heavier load can decrease your range. This includes the total load of both the weight of the rider and any cargo you may be carrying. More weight takes more time and energy to get up to speed, negatively affecting your range. It's best to keep loads light whenever possible if you're looking to extend your range.
-
Terrain & Elevation: In general, riding over smooth and flat terrain will give you a longer range. Hills and rough terrain can greatly impact your maximum range, especially on higher assist levels.
-
Wind: That's right! The wind can affect your battery range too! Riding into a headwind will decrease your range, but if you're able to catch a tailwind, you'll actually see that you'll gain more range! Be mindful of which way the wind is blowing when you are riding. If you've been riding in a tailwind, turning around will take more energy from the battery to get you home.Â
- Ambient Temperature: Riding in cold weather will impact the battery's ability to function optimally. A good rule of thumb is, if you're comfortable, then the battery is comfortable too. This also goes for storing the battery too!

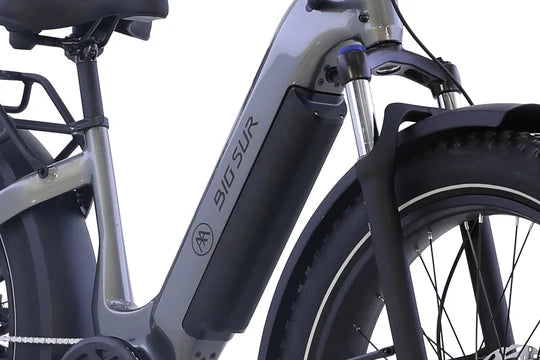

Ride Further with Confidence
Enjoy up to 75 miles* on a single charge thanks to the upgraded 48V 20Ah battery — that’s 33% more range than our 1st Gen.

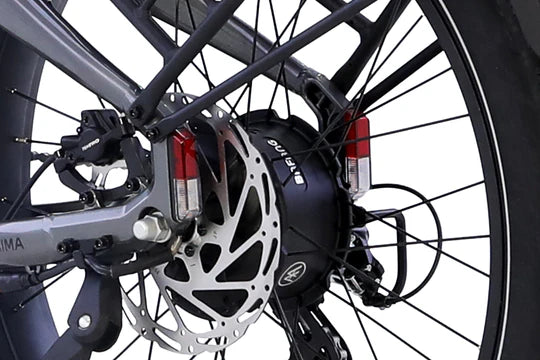

Quieter, More Efficient Power
Compared to our already whisper-quiet first-generation motor, the new 750W version cuts noise by another 10dB while improving energy conversion—delivering the same quick, powerful acceleration with even greater efficiency.

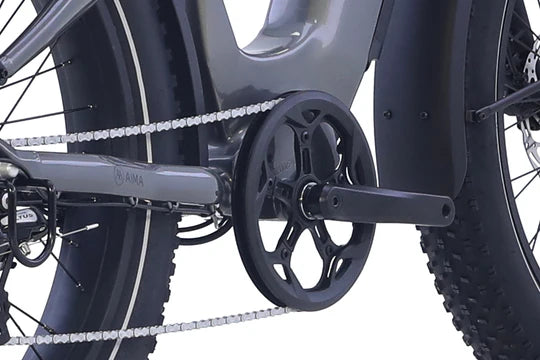

Effortless, Natural Pedal Assist
The torque sensor instantly reads your pedaling and adjusts motor output for seamless, natural assistance every time you ride.

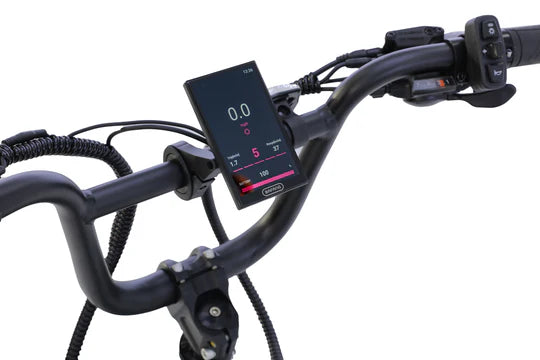

Never Miss a Turn... or a Call
The larger 4.0” display keeps stats clear at a glance, with FindMy and Bluetooth connection so you can mirror navigation, calls, and messages from your phone through app.

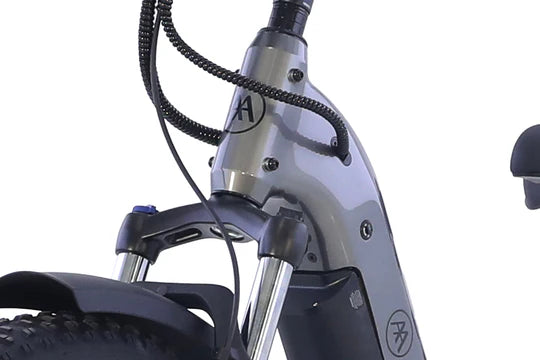

Built Like a Tank
A reinforced frame stands up to rough terrain and daily use, delivering long-term reliability in any riding environment.

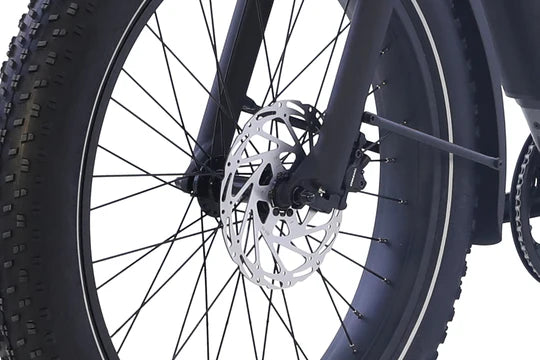

Confident Braking Power
203mm hydraulic disc brakes provide strong, consistent stopping ability—even on steep hills or in wet conditions.
