Manufacturer's Description:
Our flagship fat tire ebike with full air suspension, and 1400W peak power. Built to conquer sand, snow, or mountain trails with unmatched comfort and control.
- Max Range: 75 Miles
- Motor Power: 750W/105Nm (1400W Peak)
- Front Suspension: 120mm Air Fork
- Max Payload: 560 Lbs
- SensorSwap™: Torque/Cadence
- Rear Suspension: 80mm Wheel Travel Air Suspension

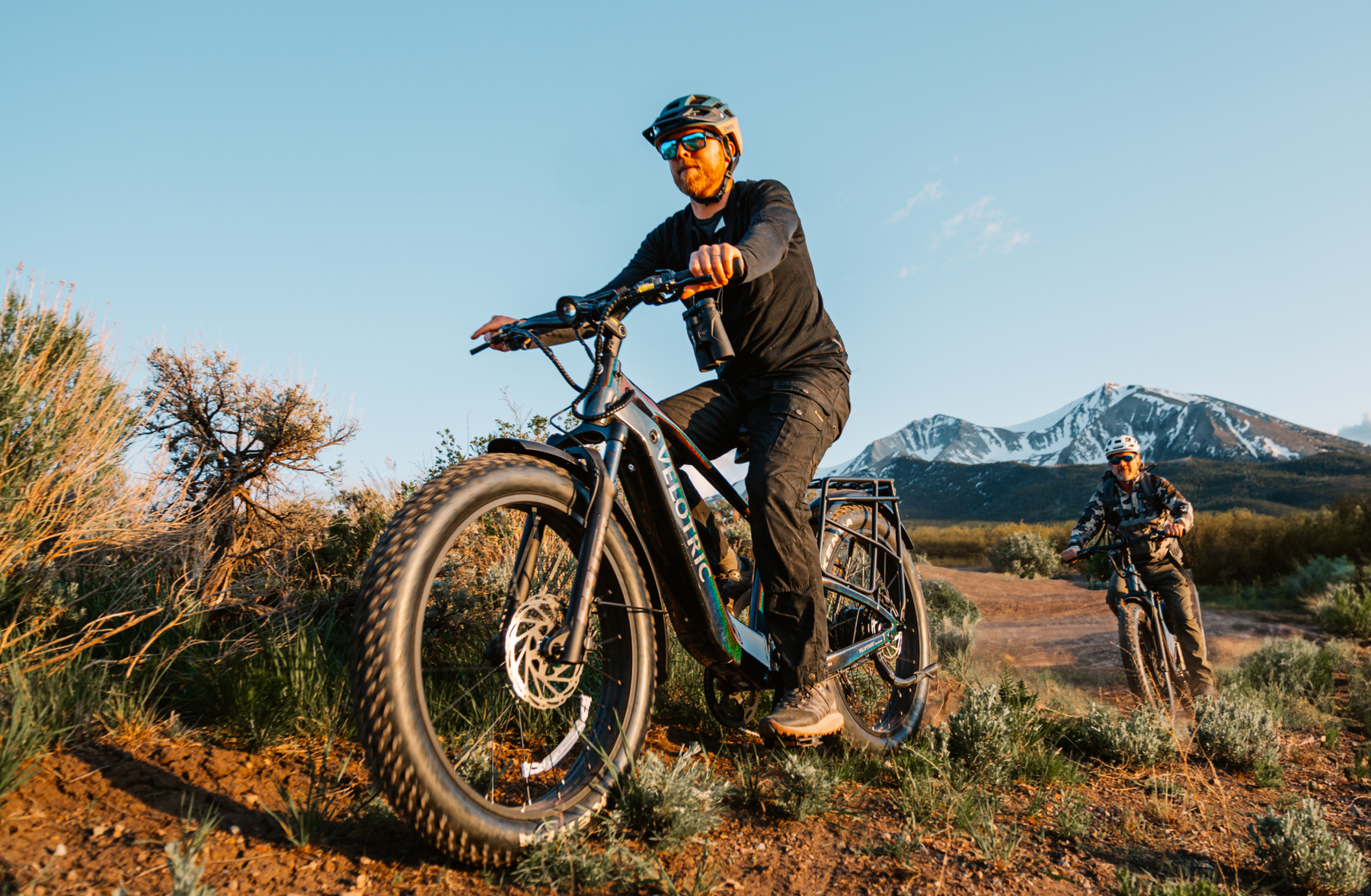

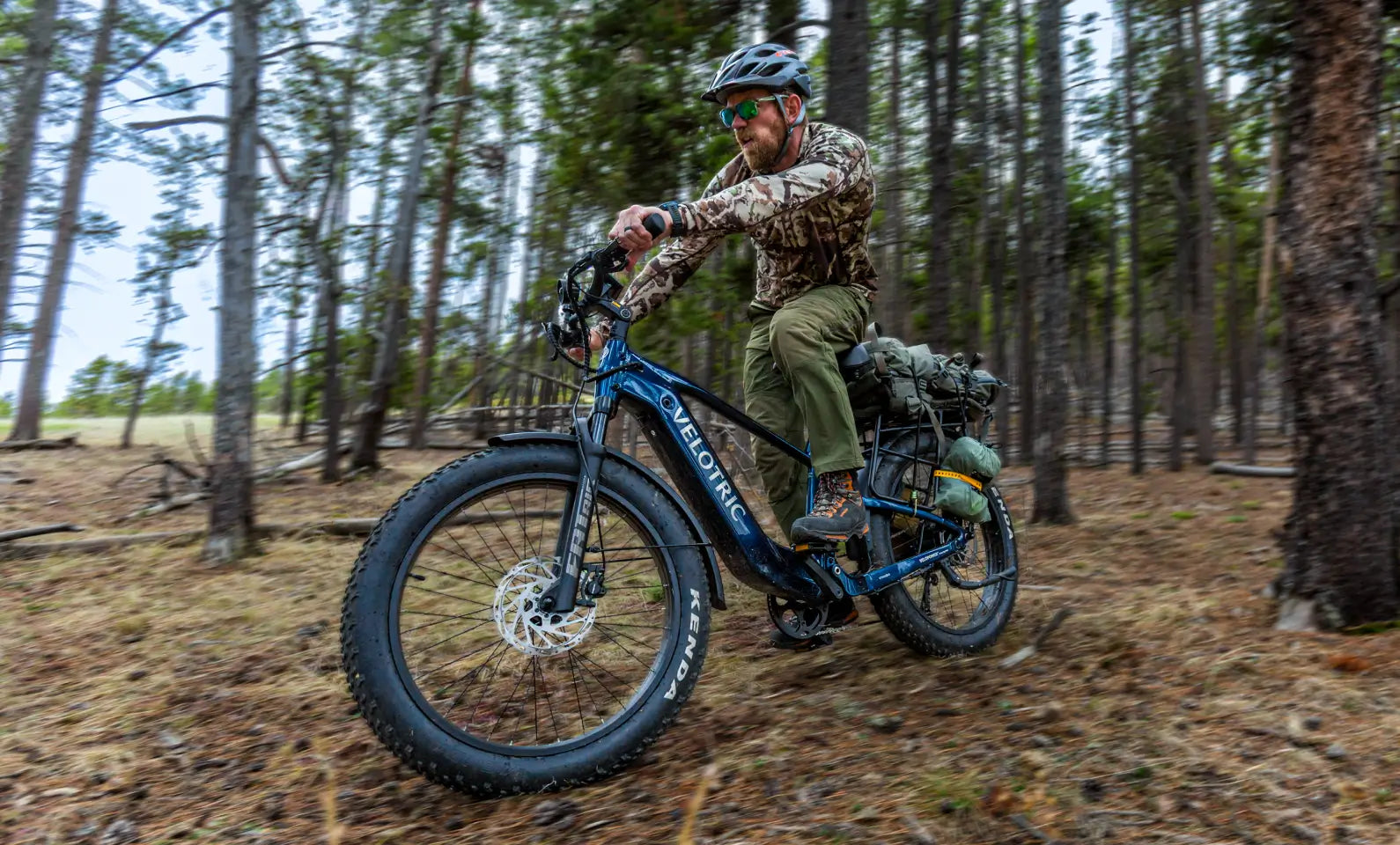

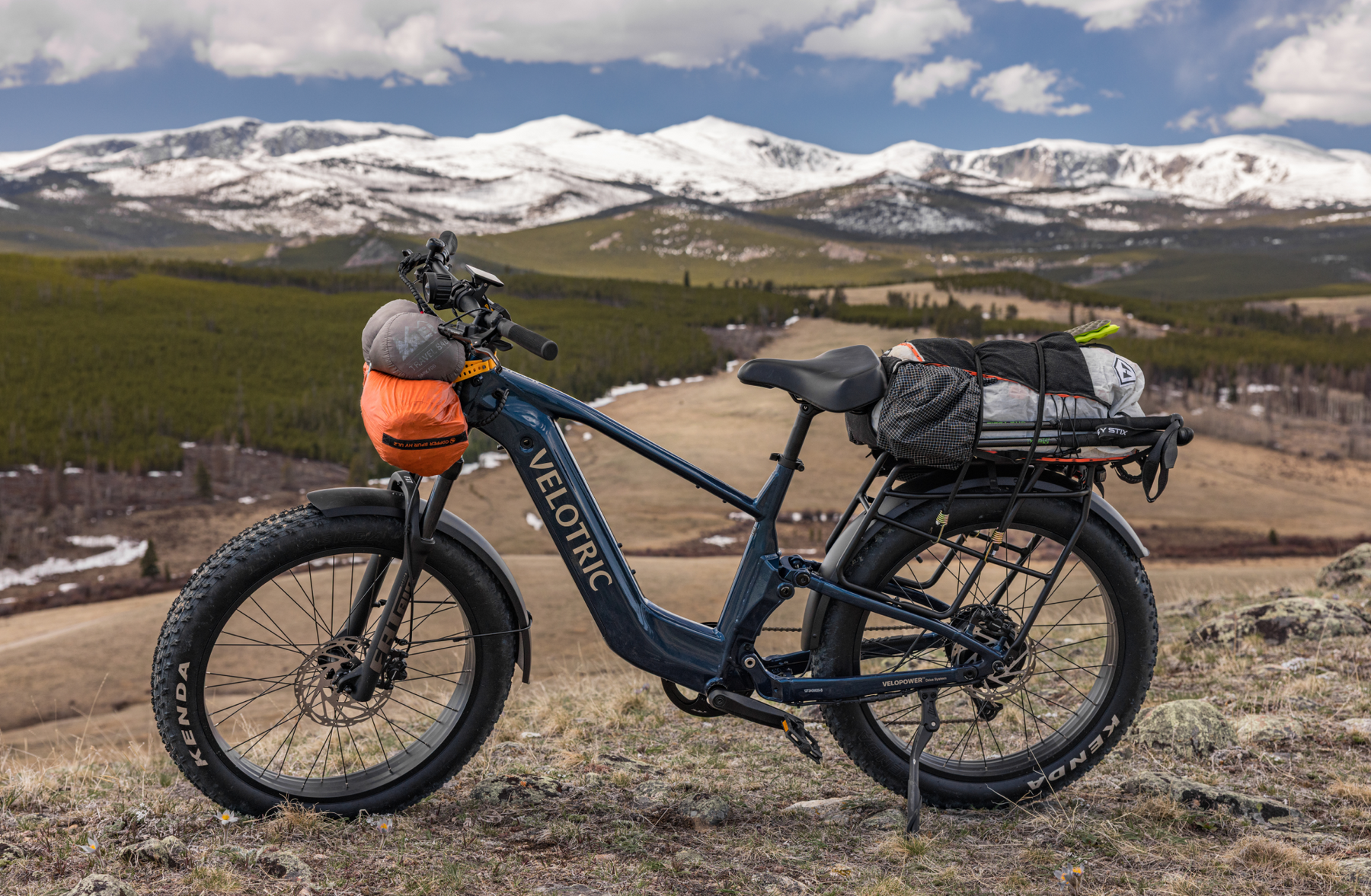

Fat Tire Ebike: Built For The Great Outdoors
All terrains. One Ebike. Built for larger riders, the Nomad 2X goes where others stop, with 4.0" fat tires and full air suspension to absorb whatever the trail throws your way.

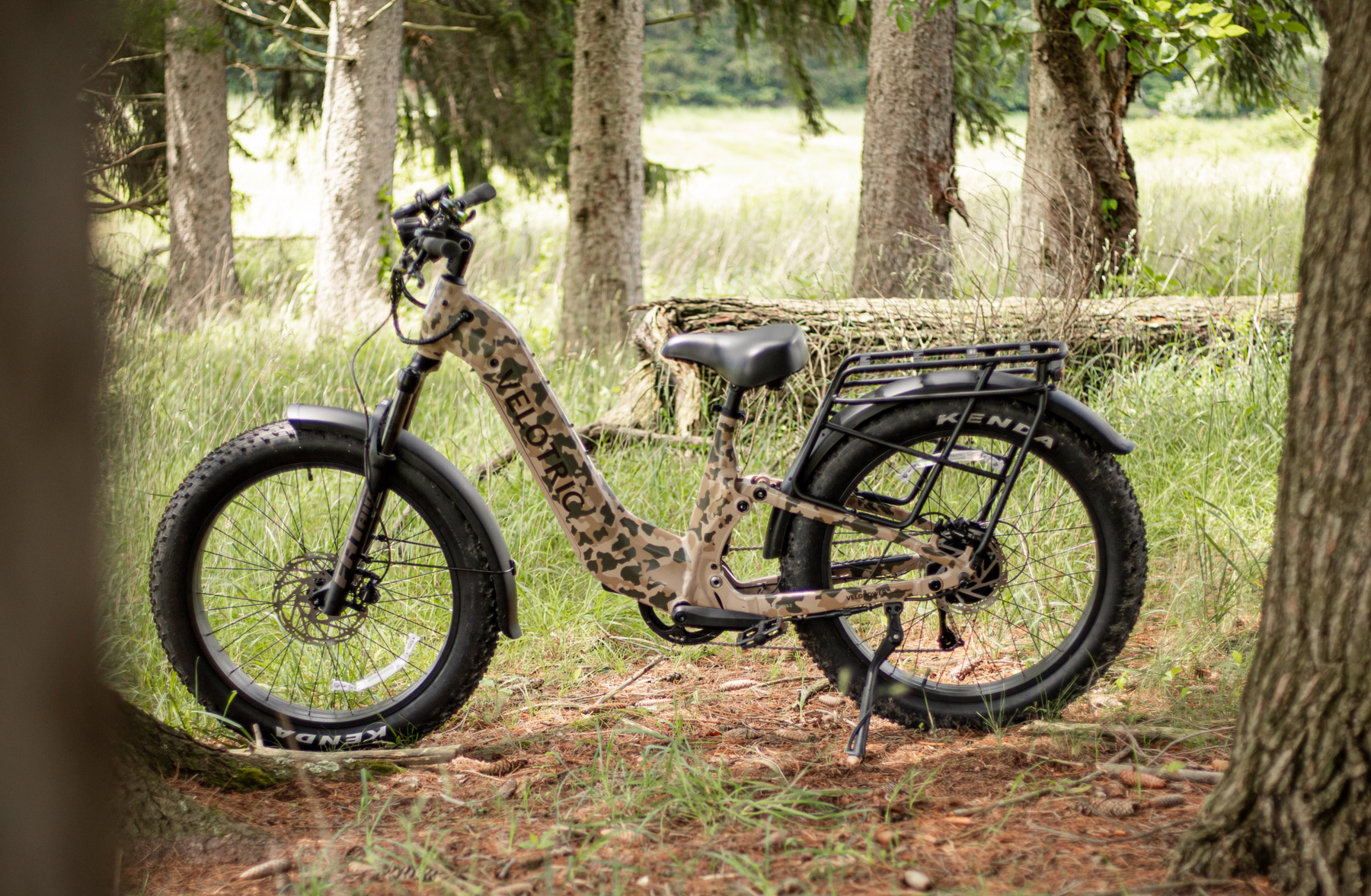

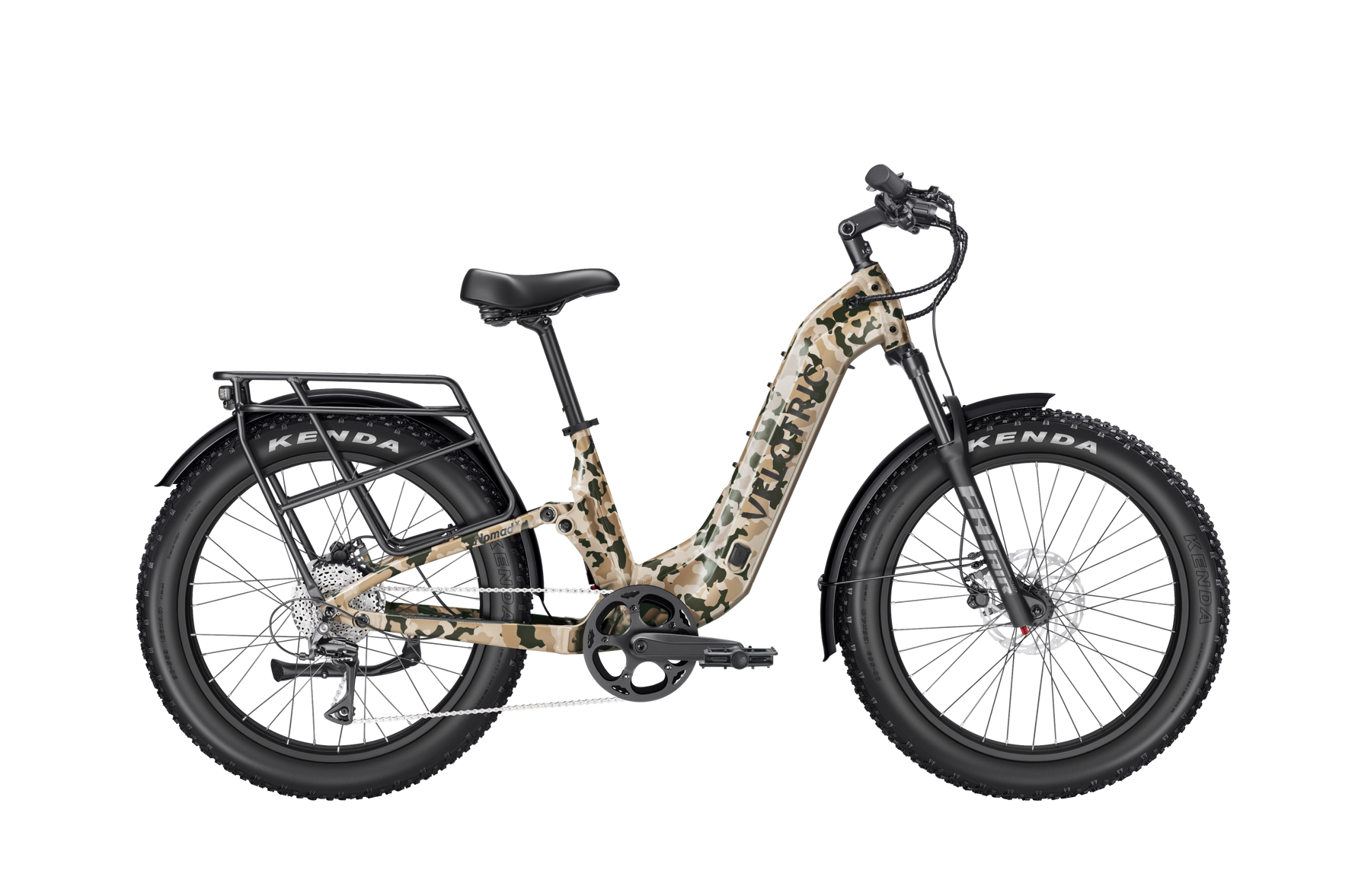

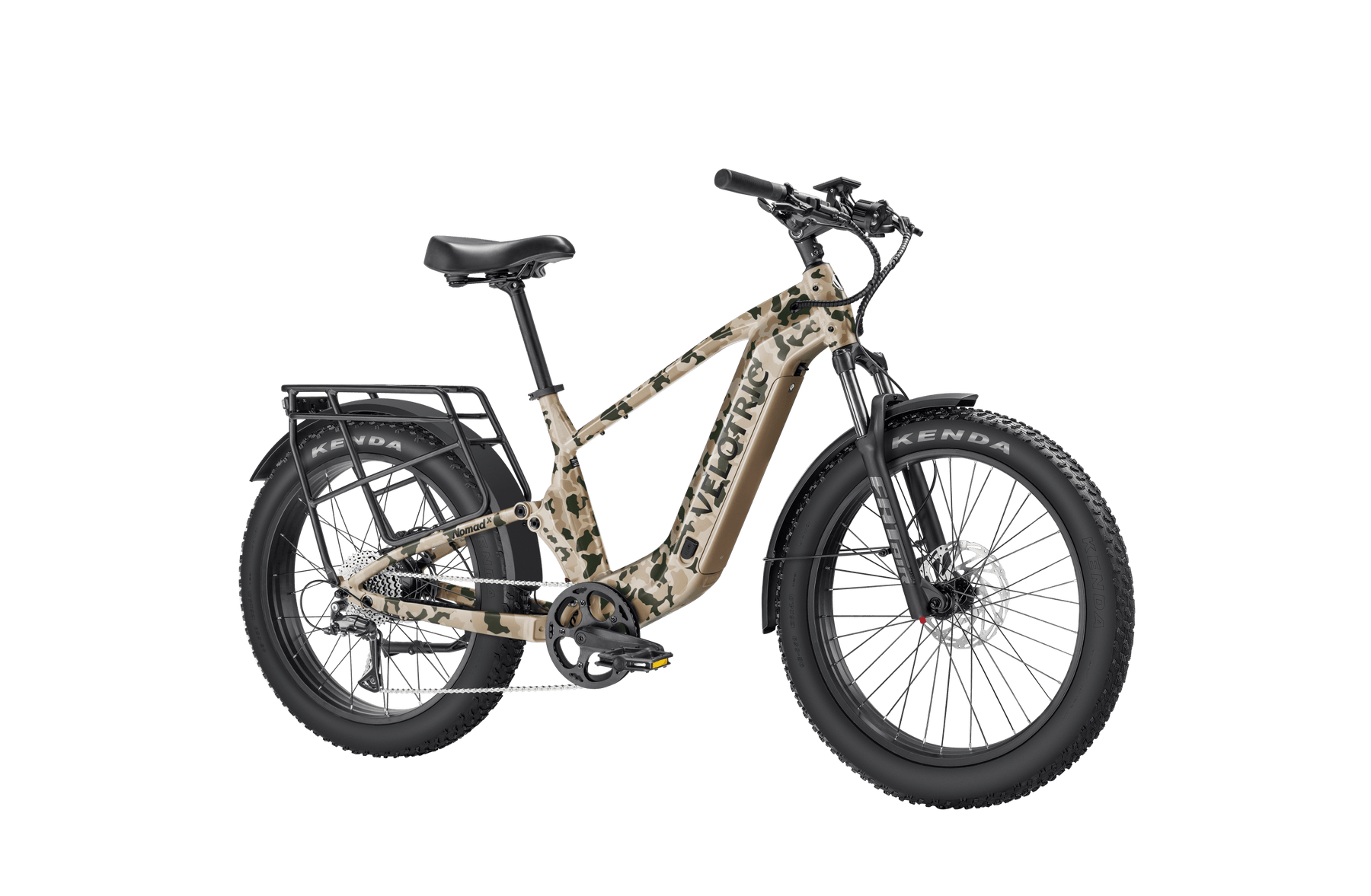

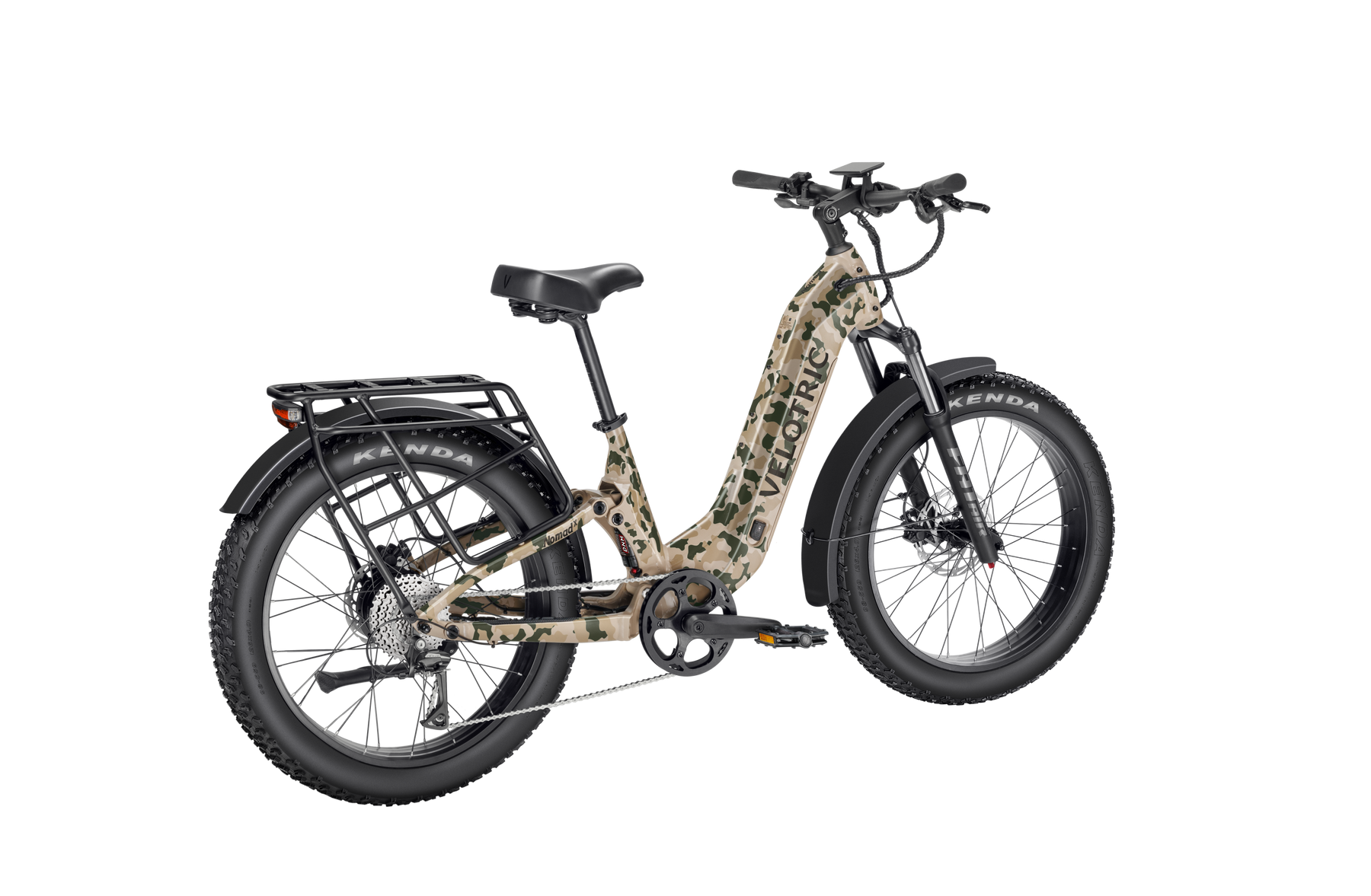

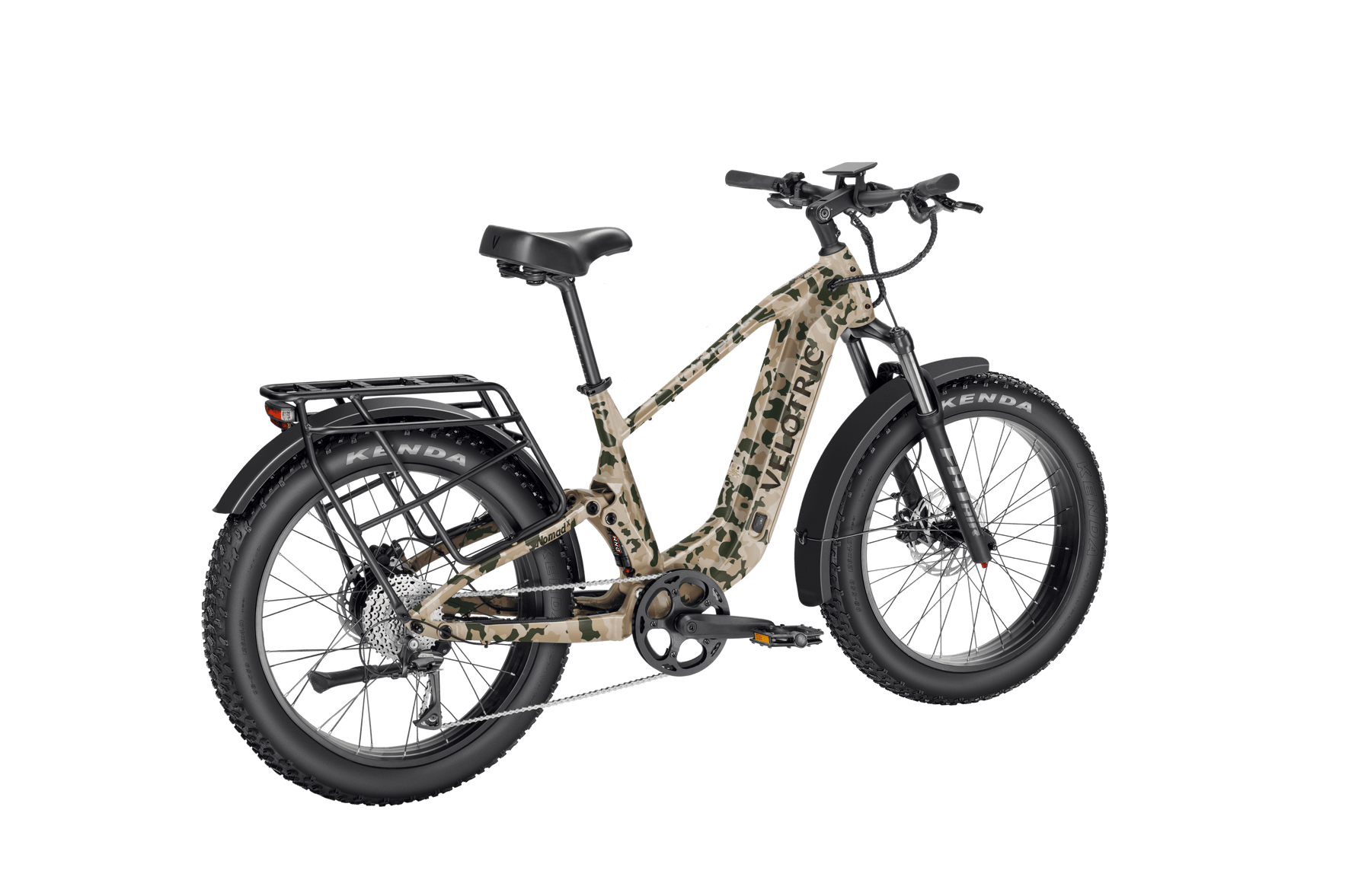

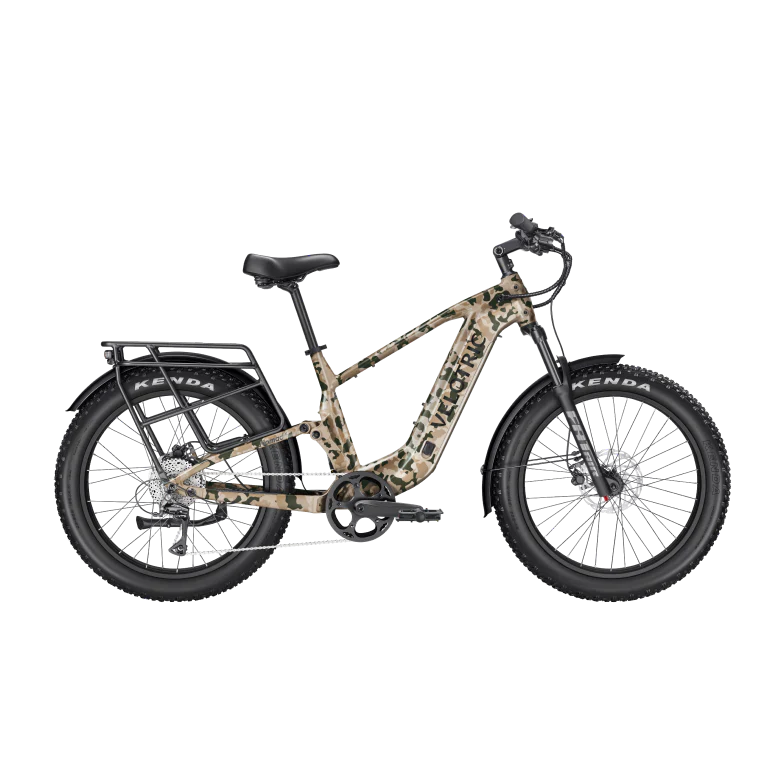

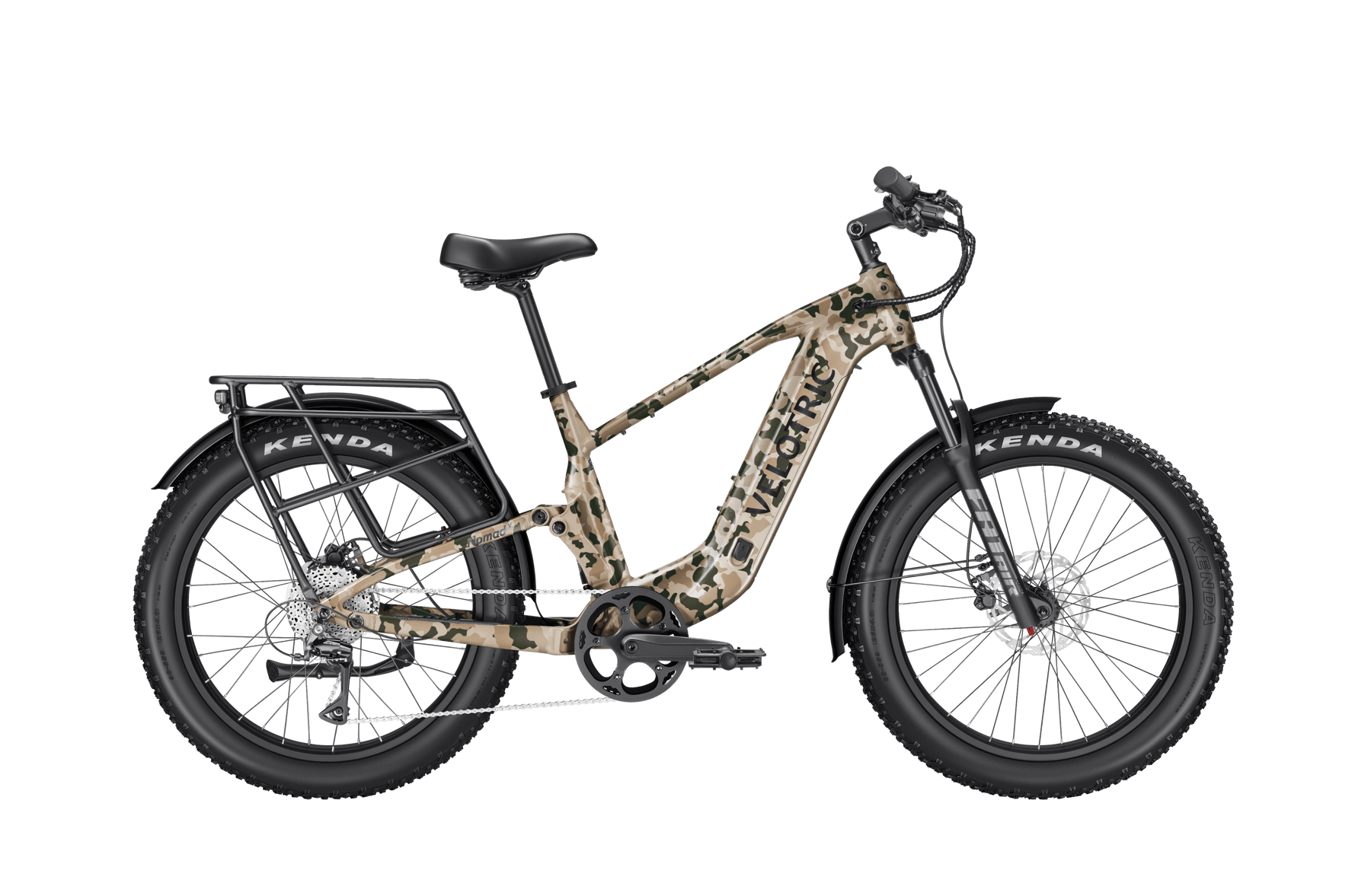

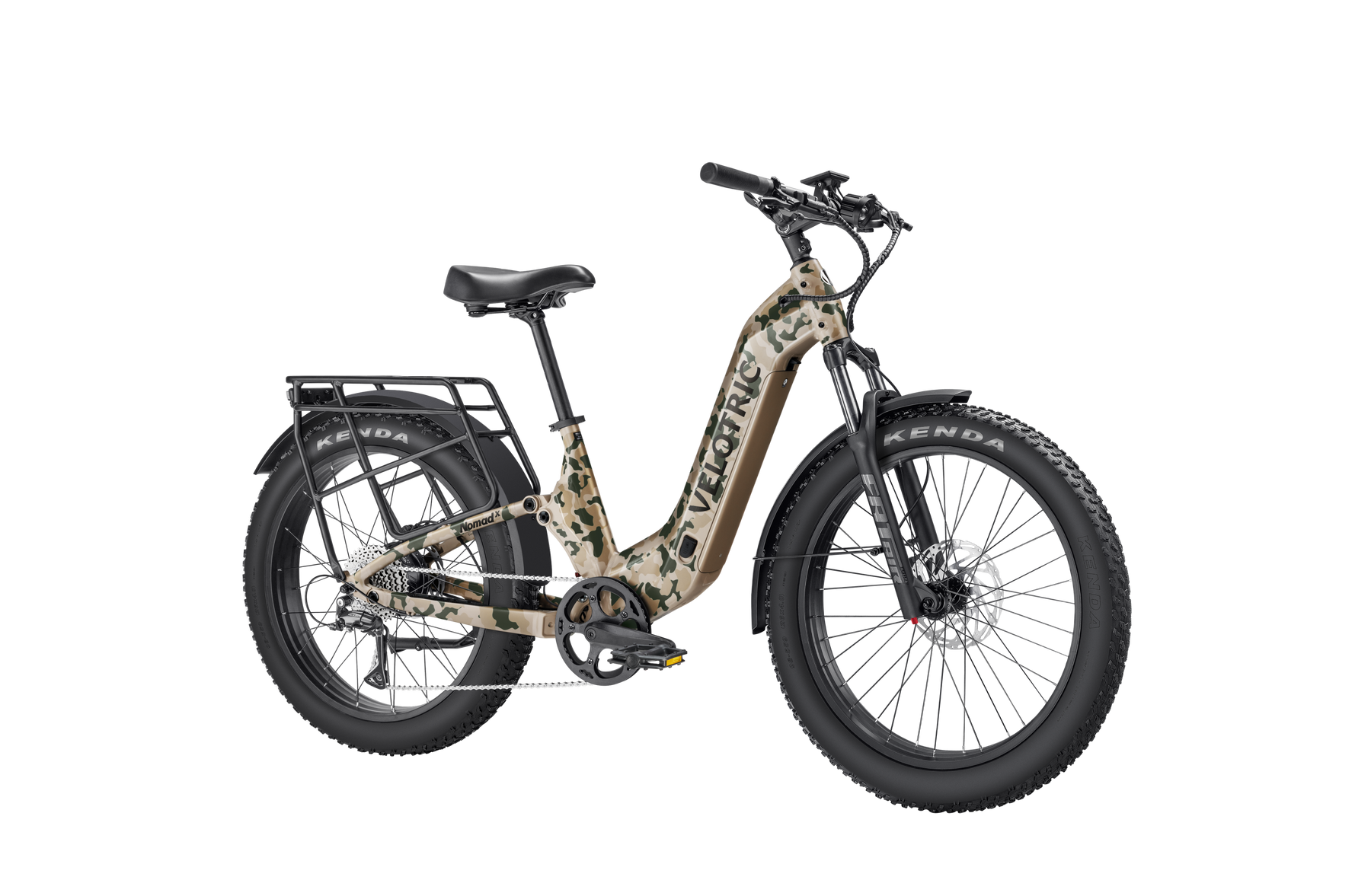

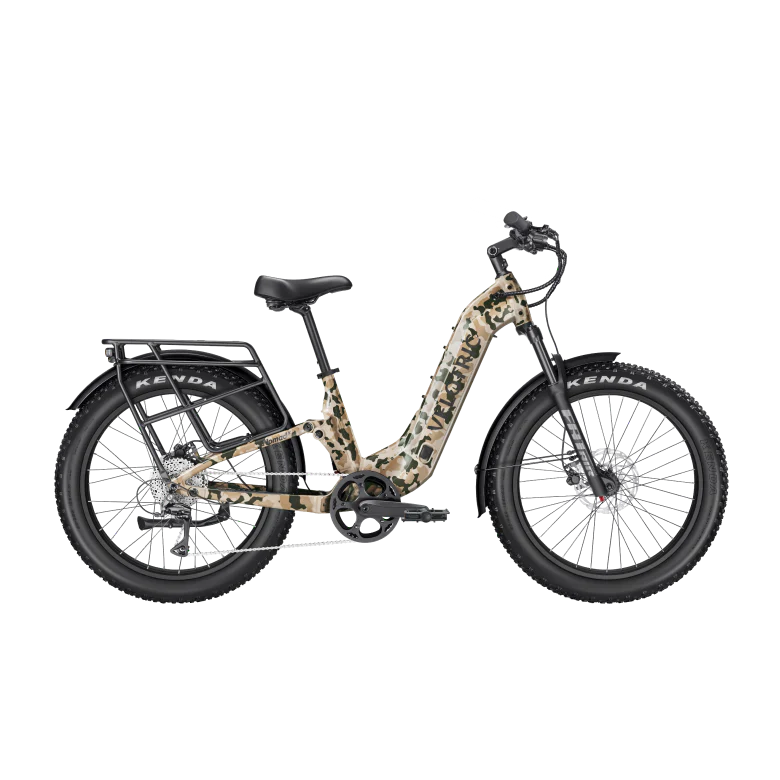

Multi-Terrain Camo (MTC) Edition
Co-created with Joltbike Design House. A special edition camo finish with professional, non-reflective matte, engineered to blend across woods, fields, and brush lines.
Power Unleashed
Built for rides where limits don't apply.

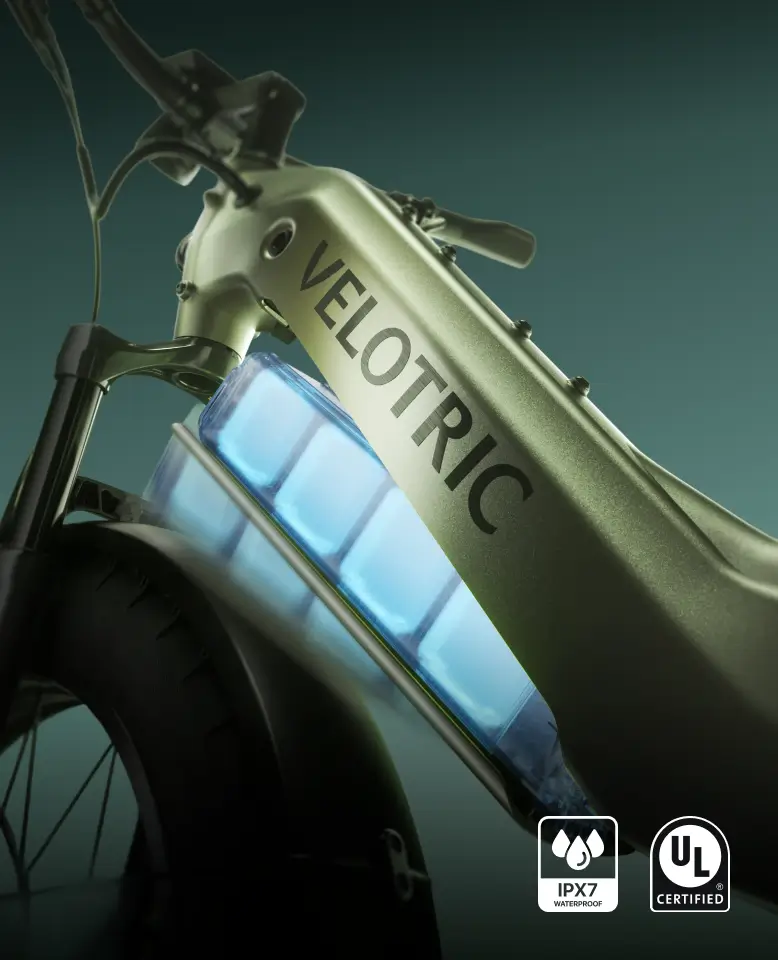

Long-Range Battery
Go farther. Ride with confidence.

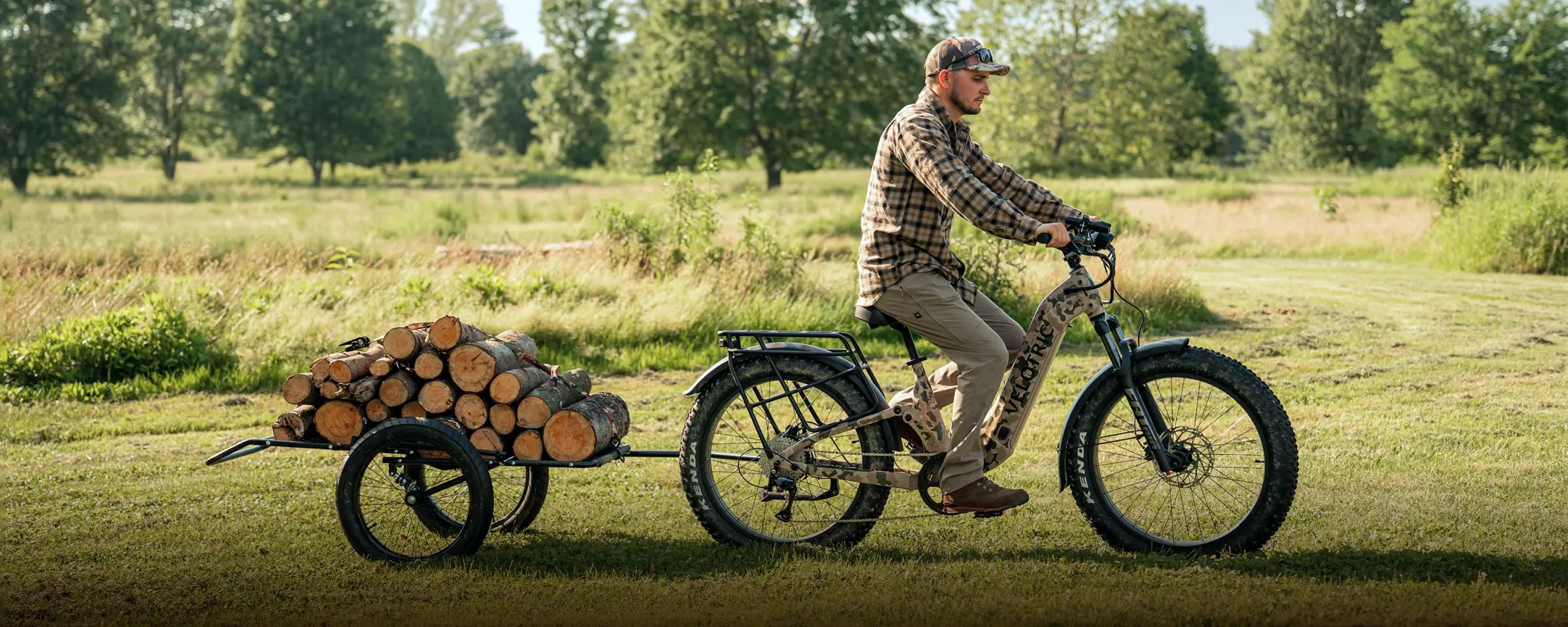

Unbeatable Payload
Ready to haul gear, game, and anything your trip demands.
STEALTH MODE: First in industry.
Scout quiet and minimize your presence.
Built for low-profile rides.
Lights Off
Total stealth in the dark.
Display Dimming
Screen fades out. No visible glow.
Reduced Speed
Quiet, smooth, controlled movement.
Specifications
General Info

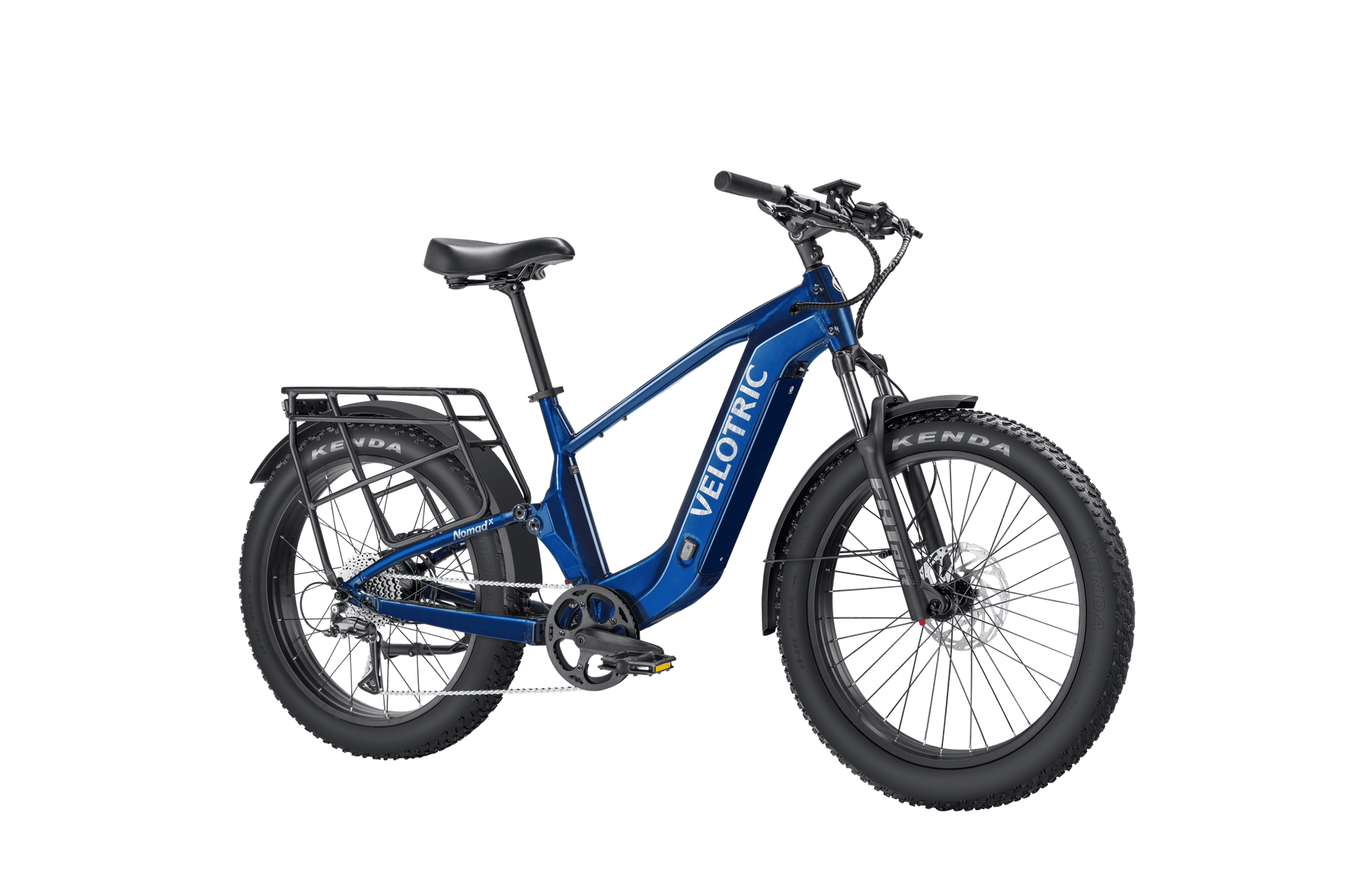

| Model Name | Velotric Nomad 2X |

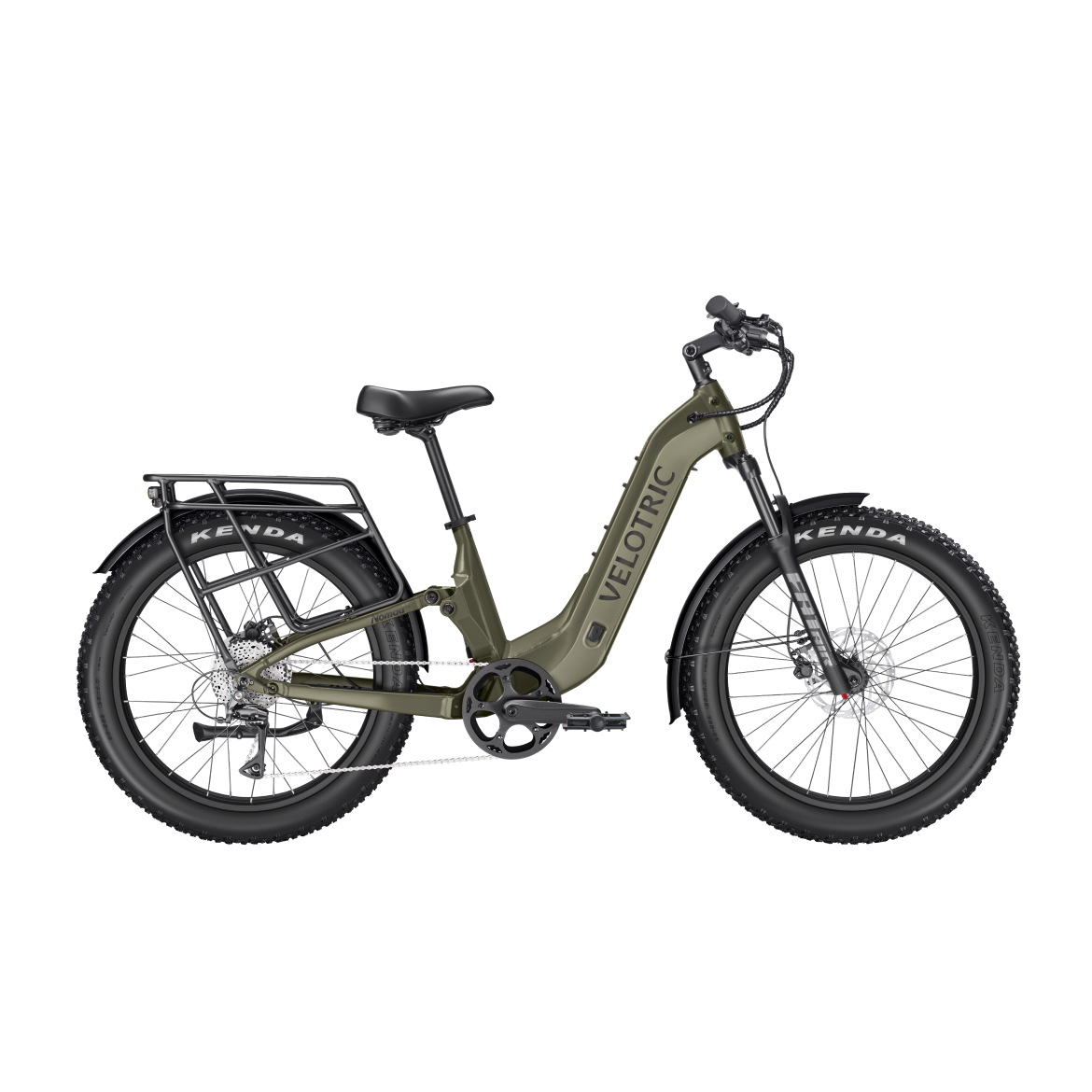

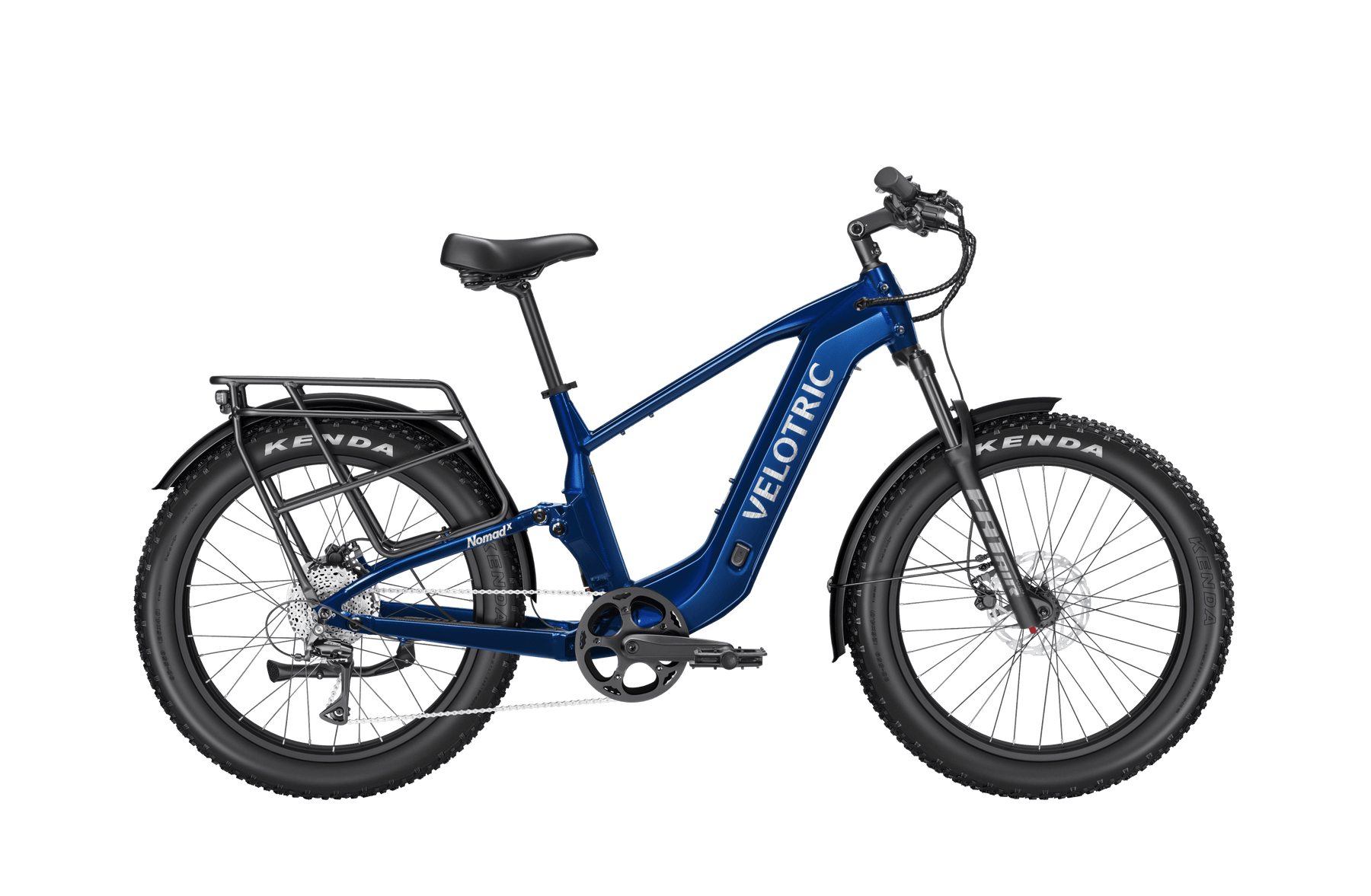

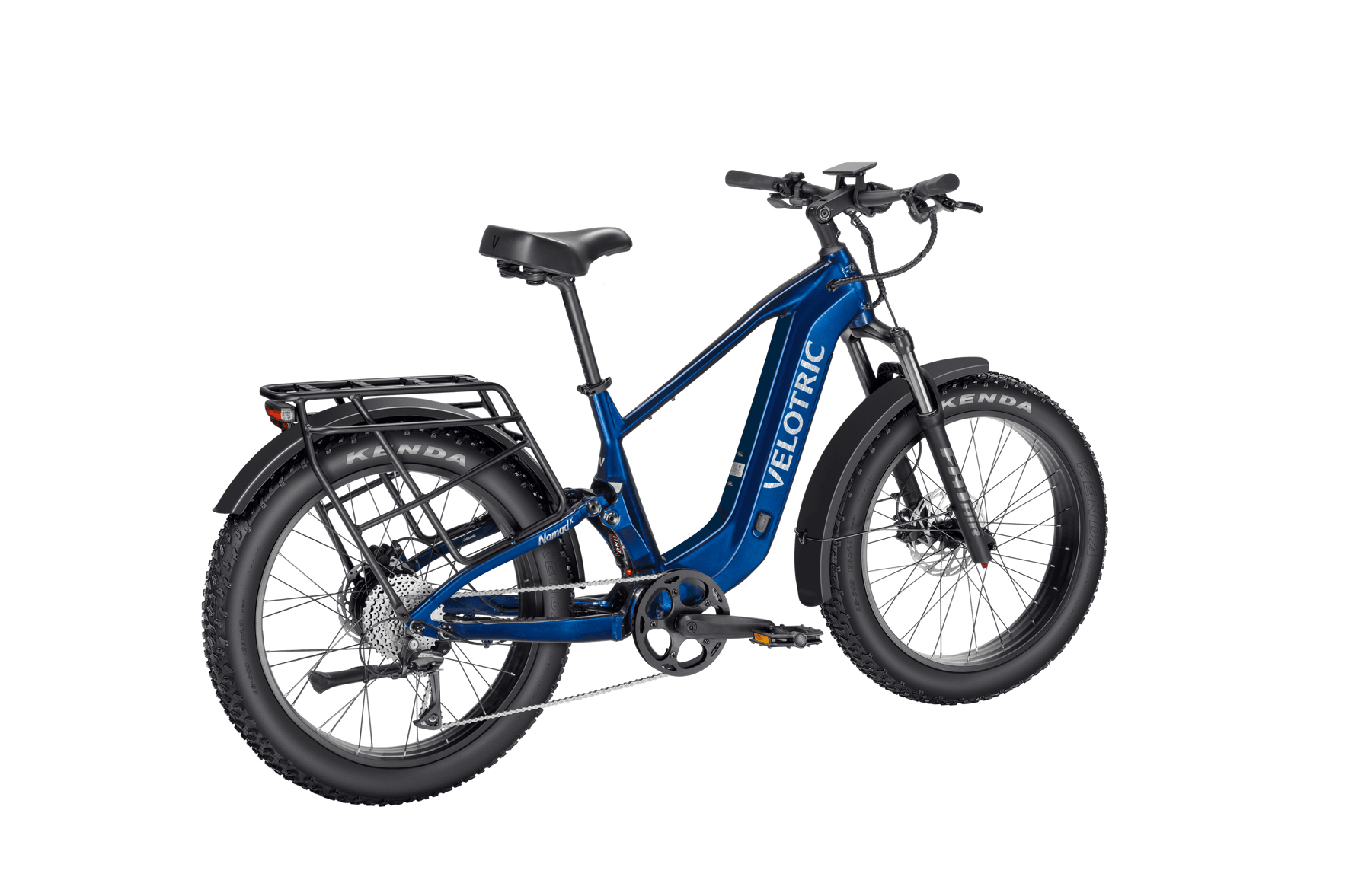

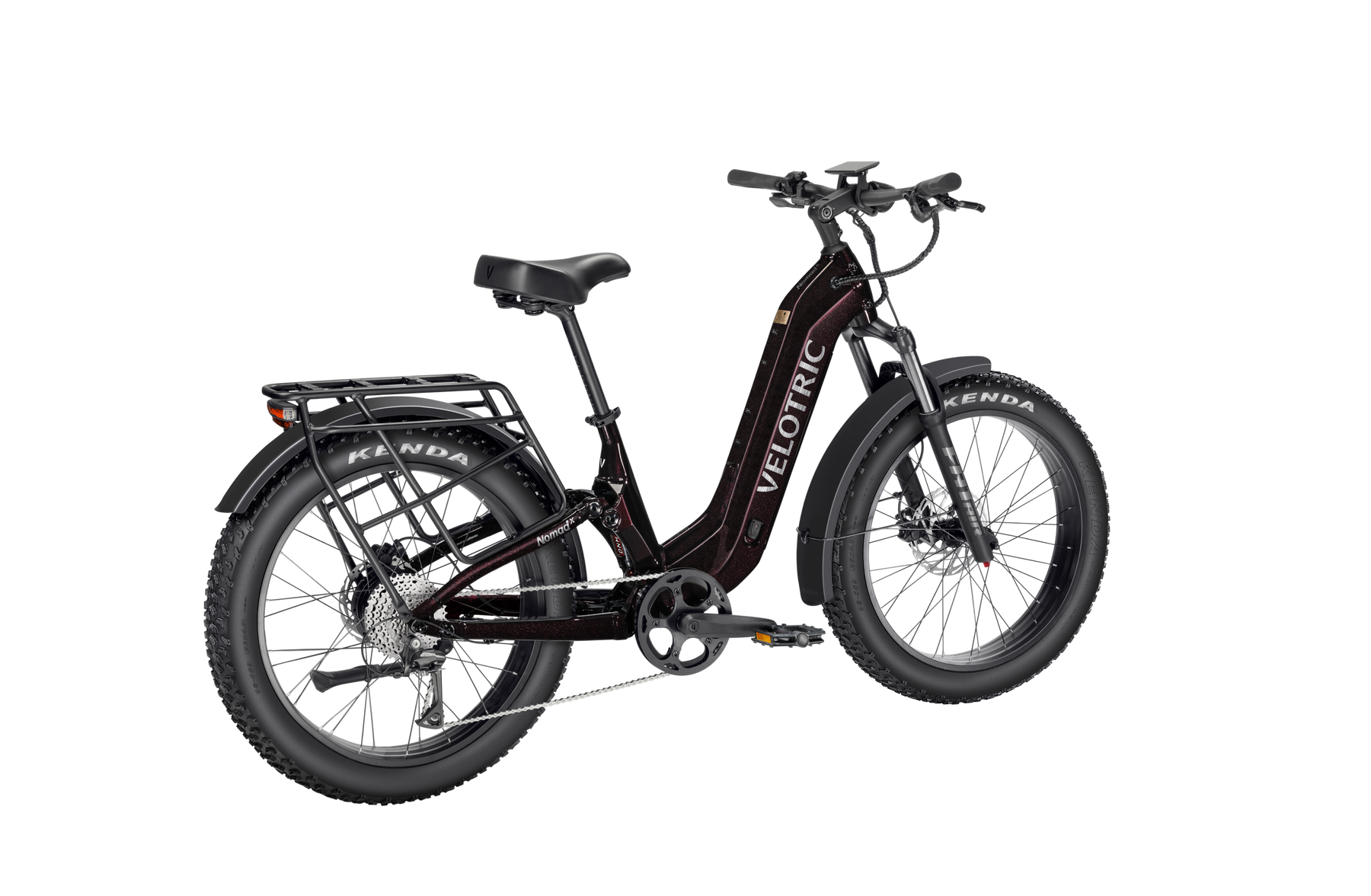

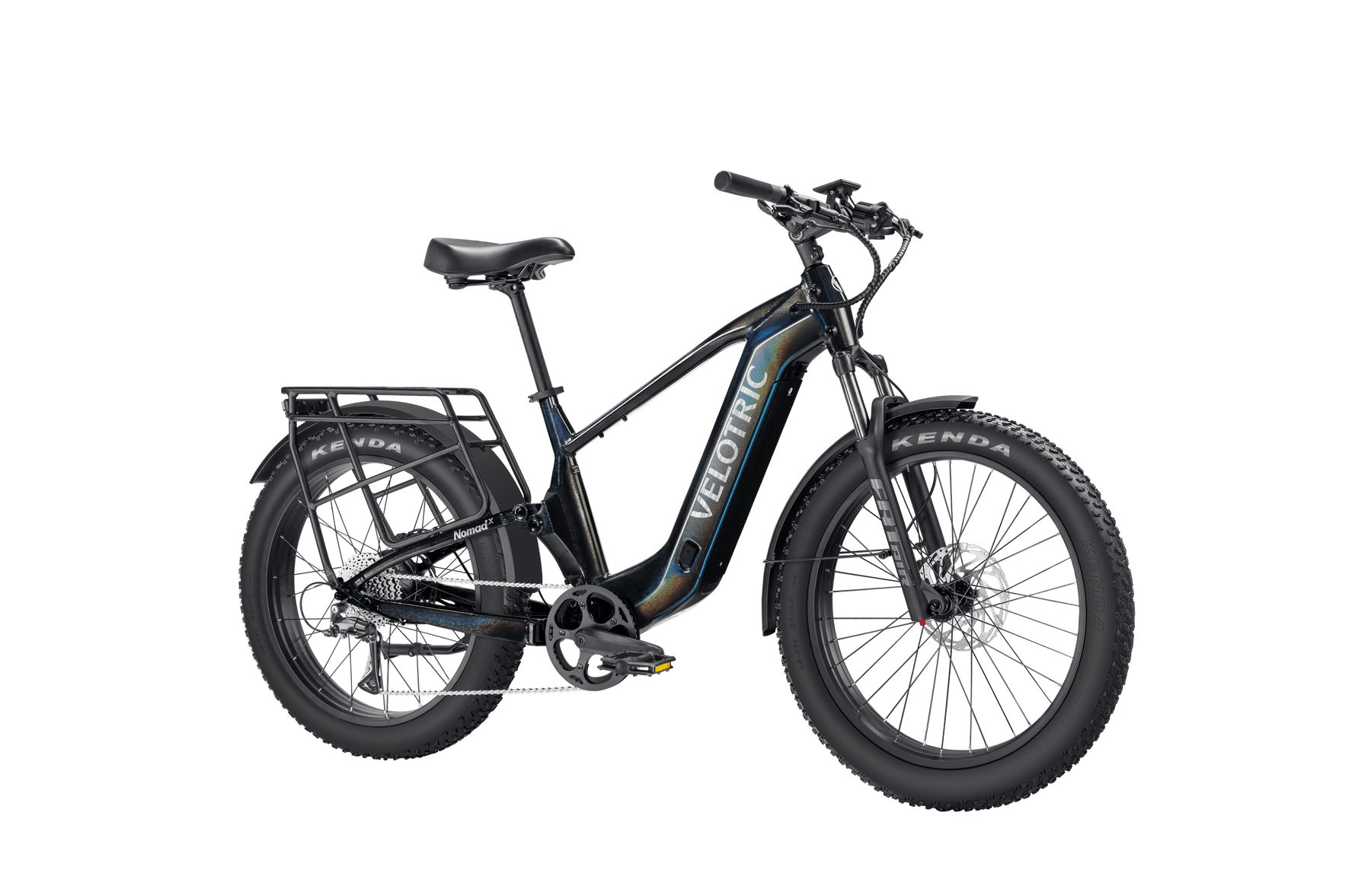

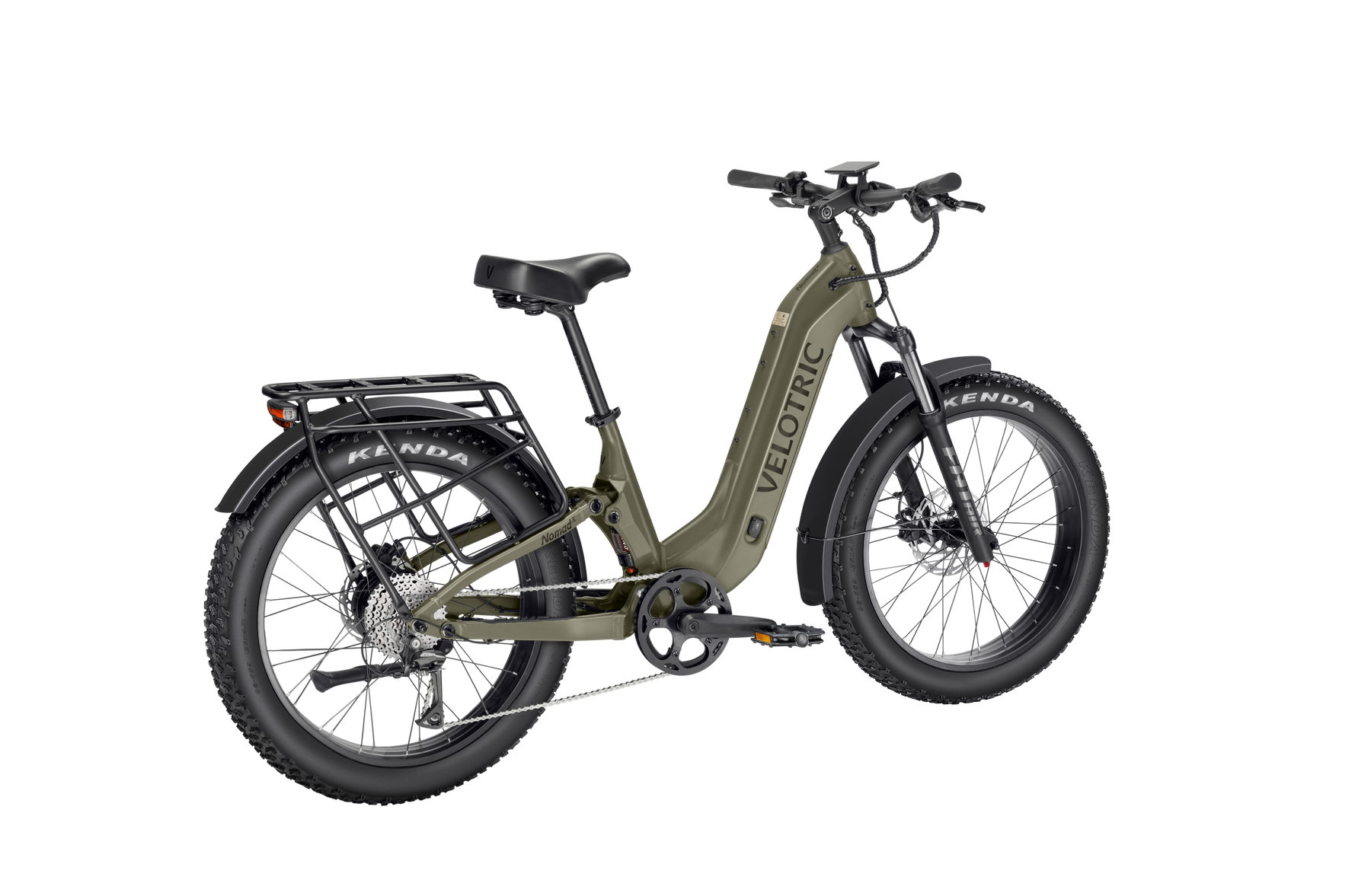

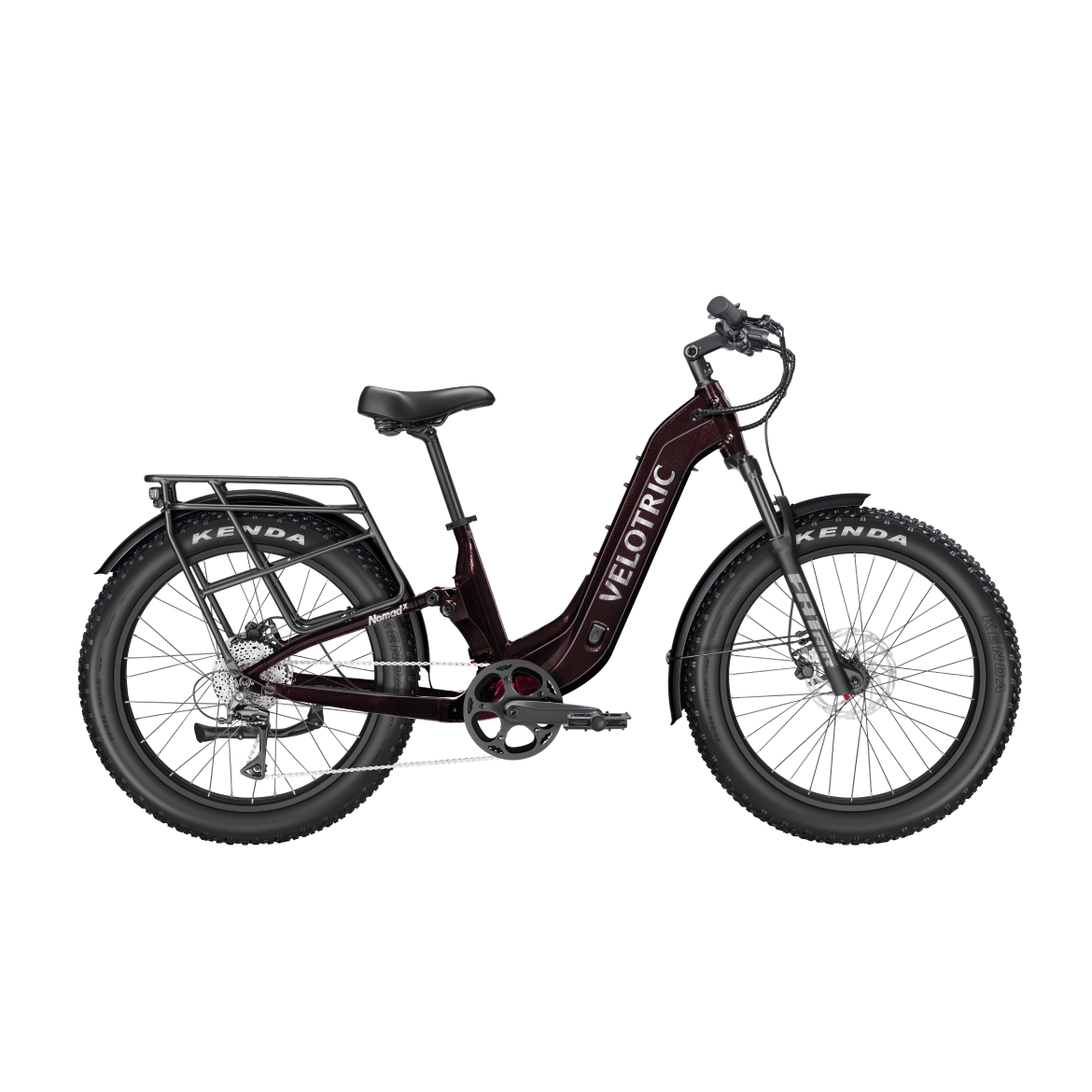

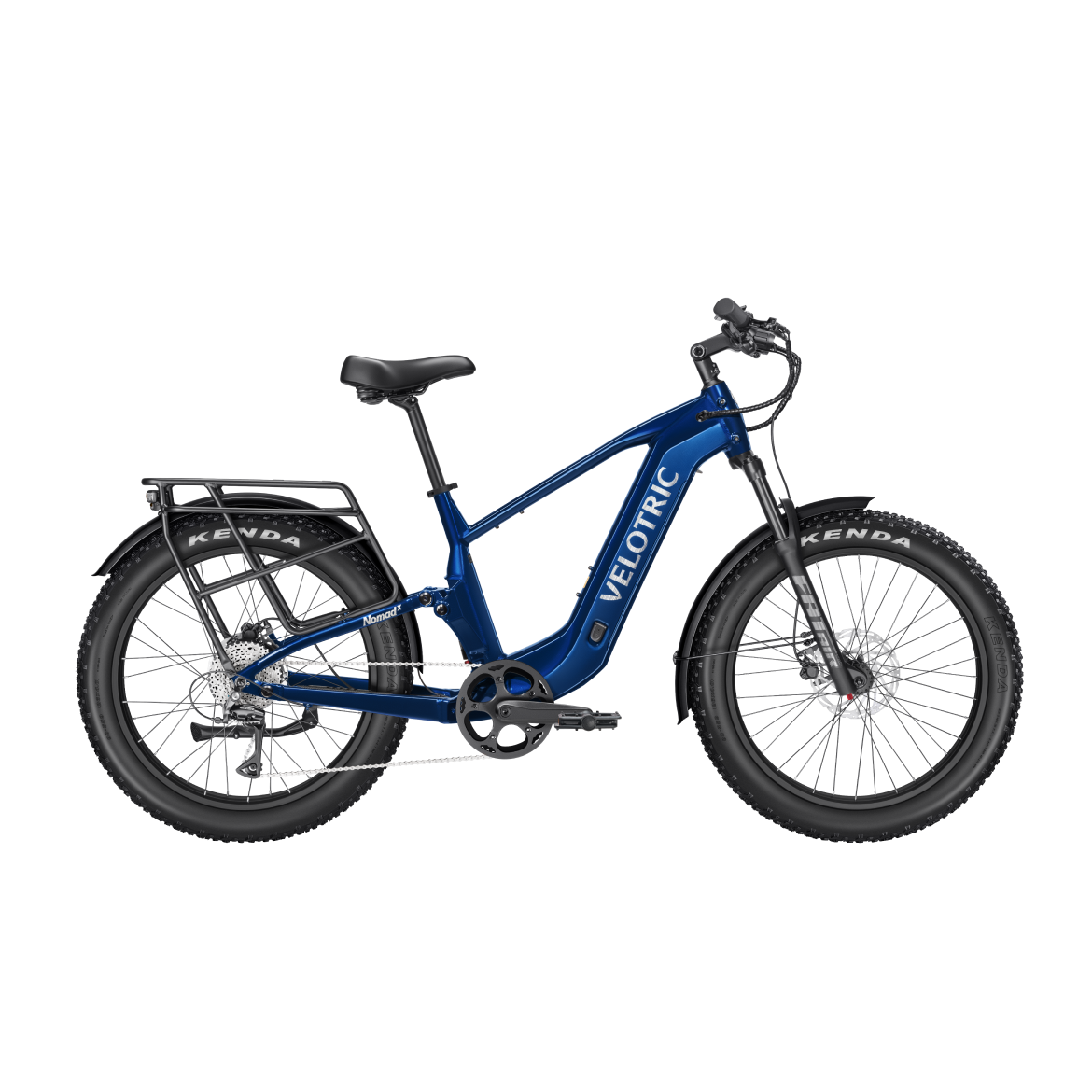

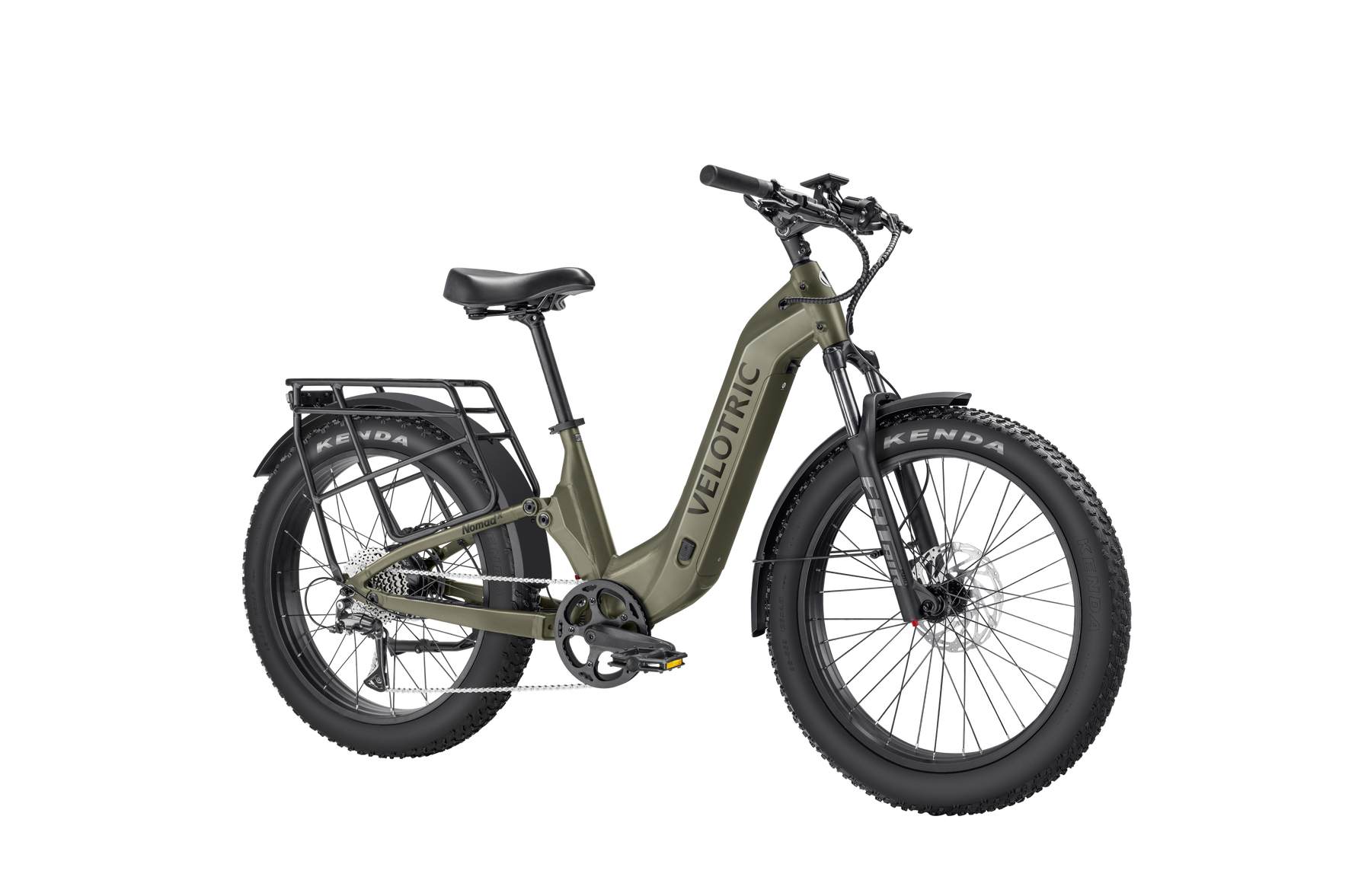

| Colors | Obsidian, Royal Blue, Fig, Sage, Multi-Terrain Camo |

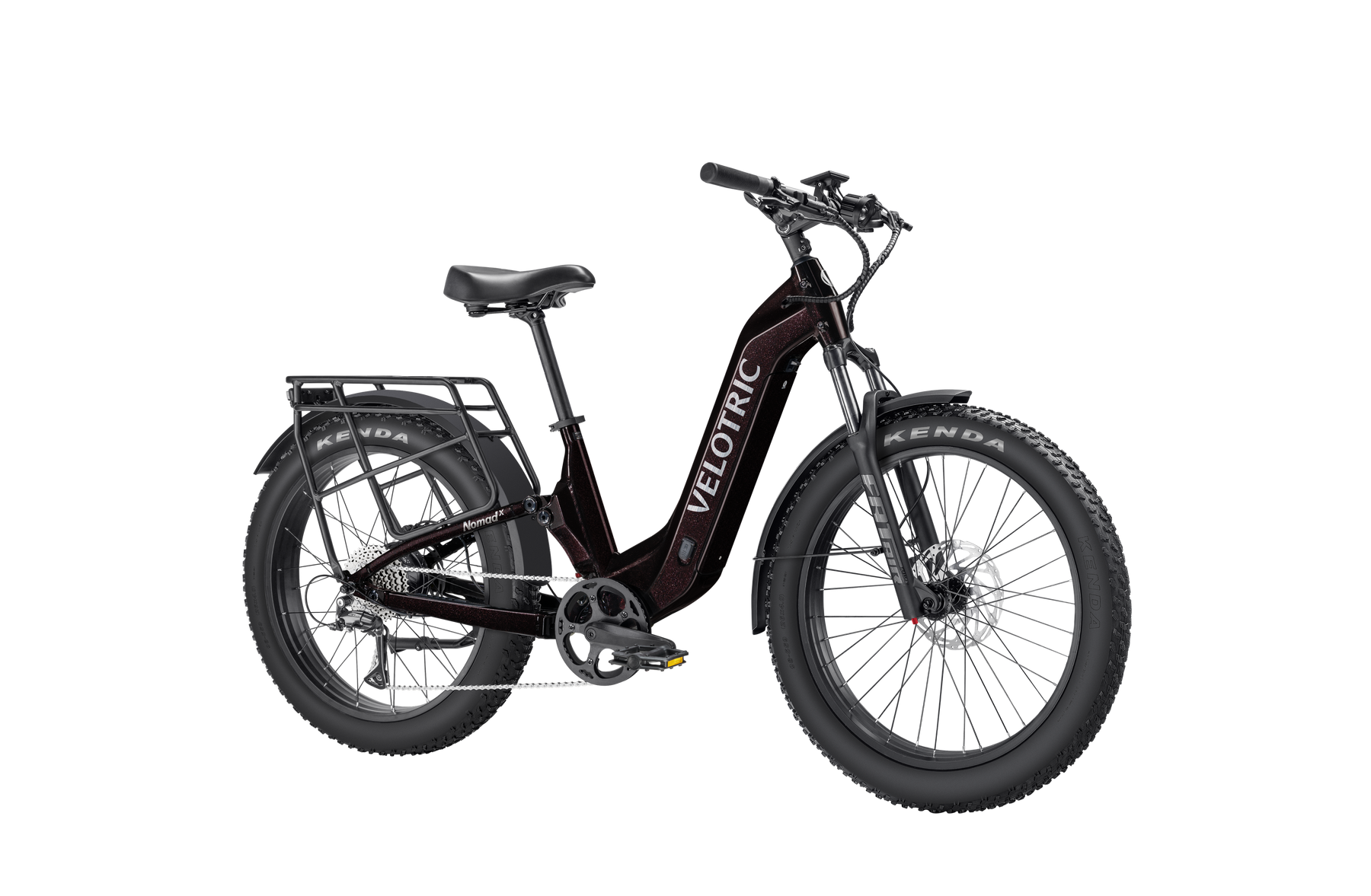

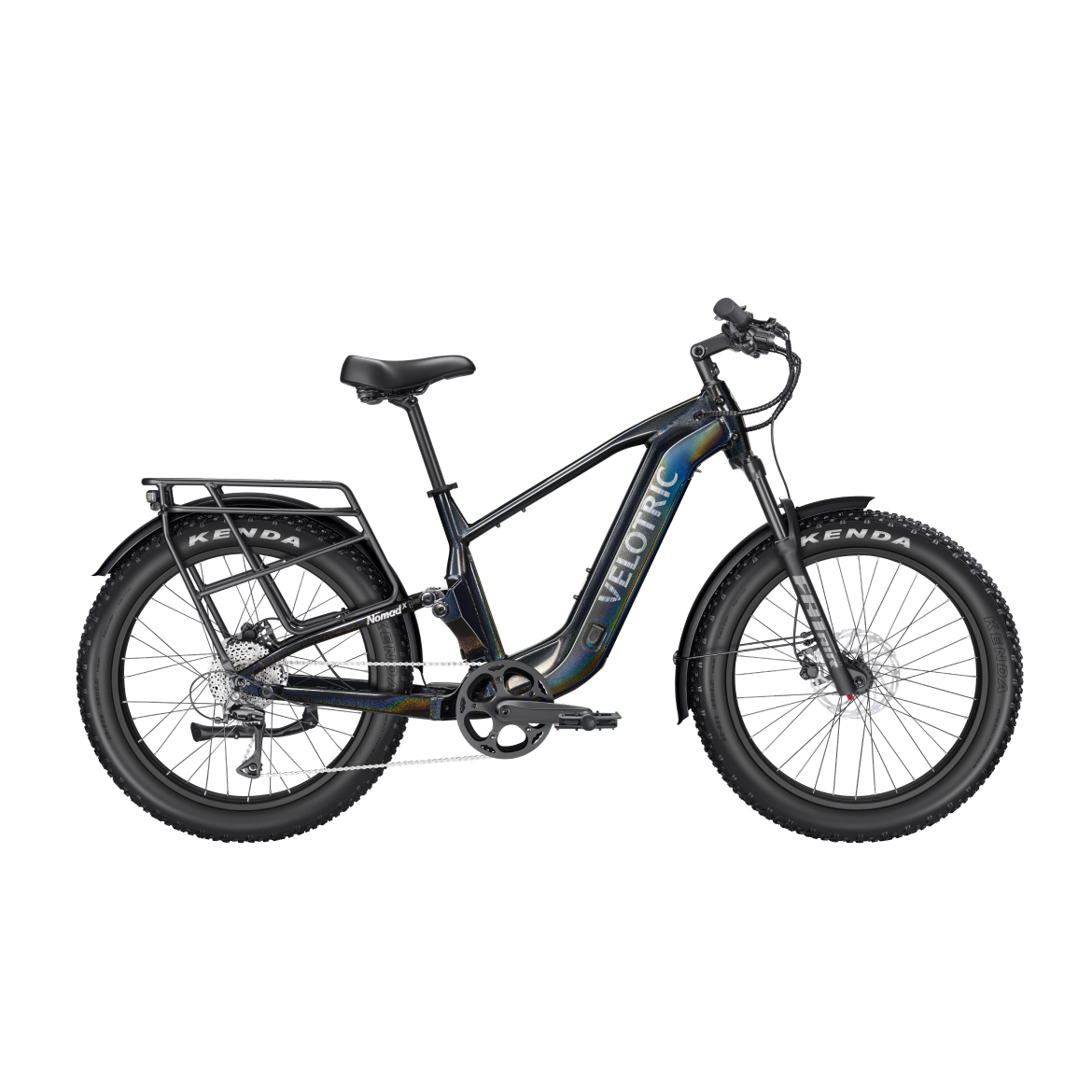

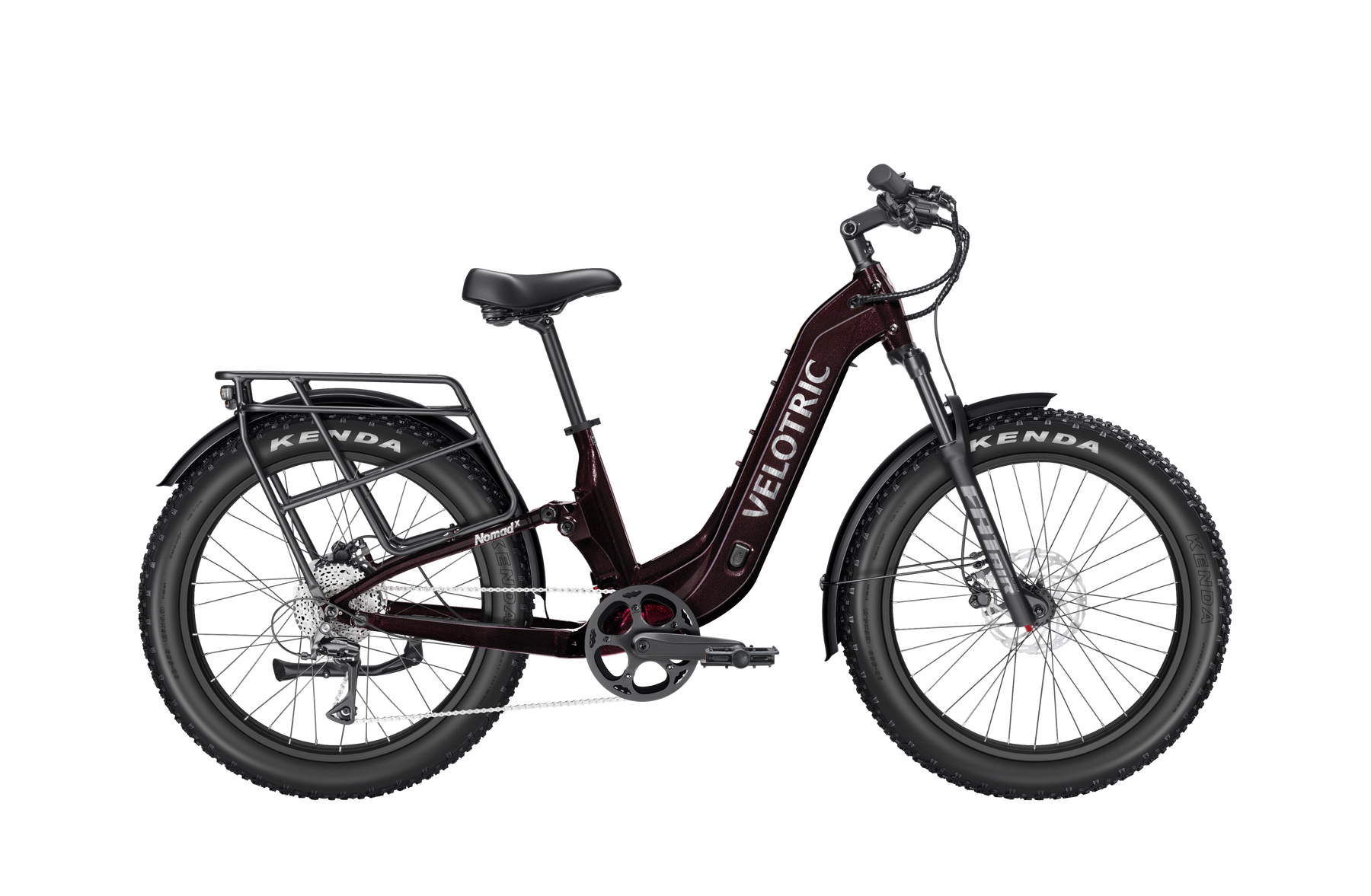

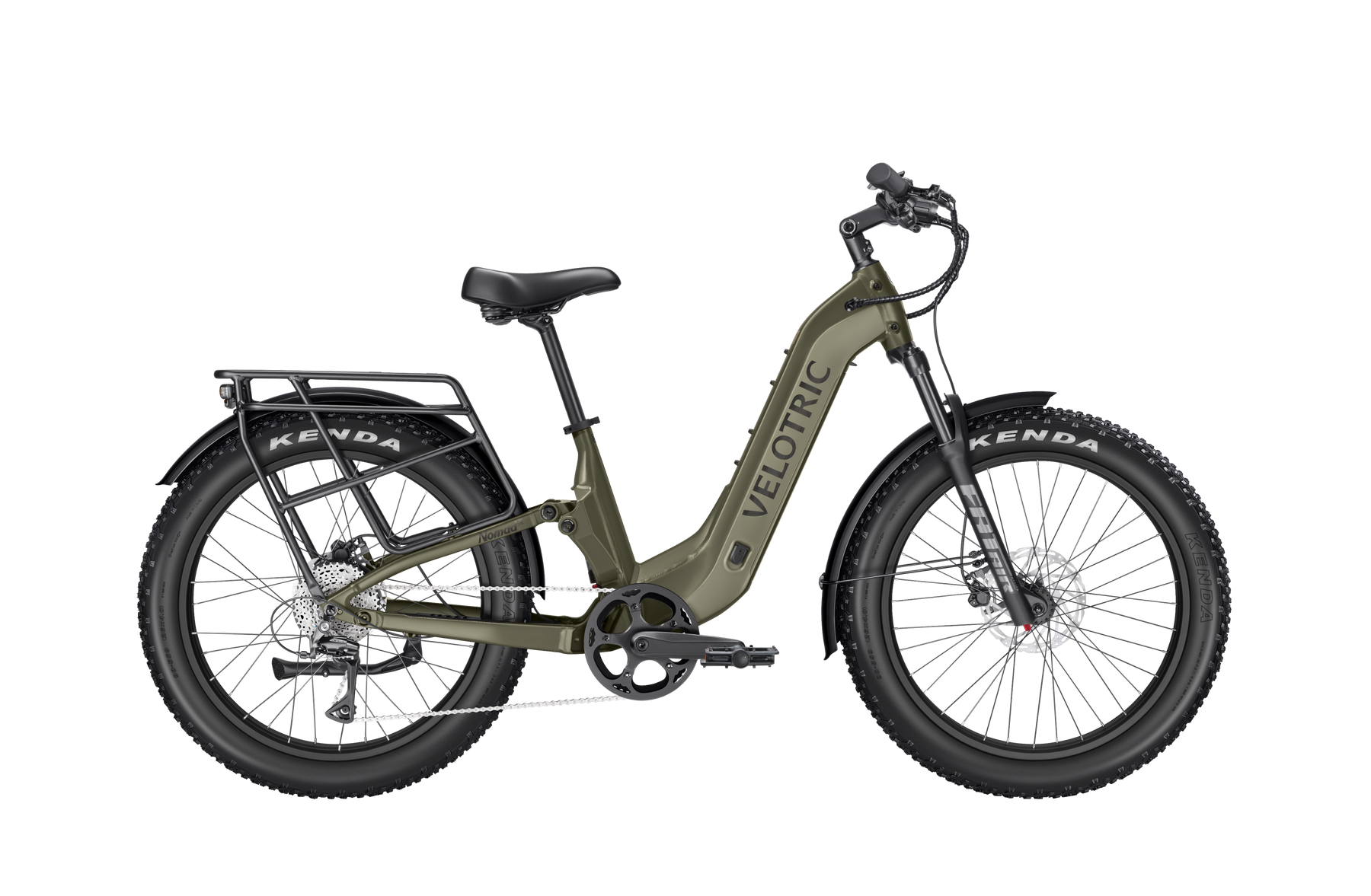

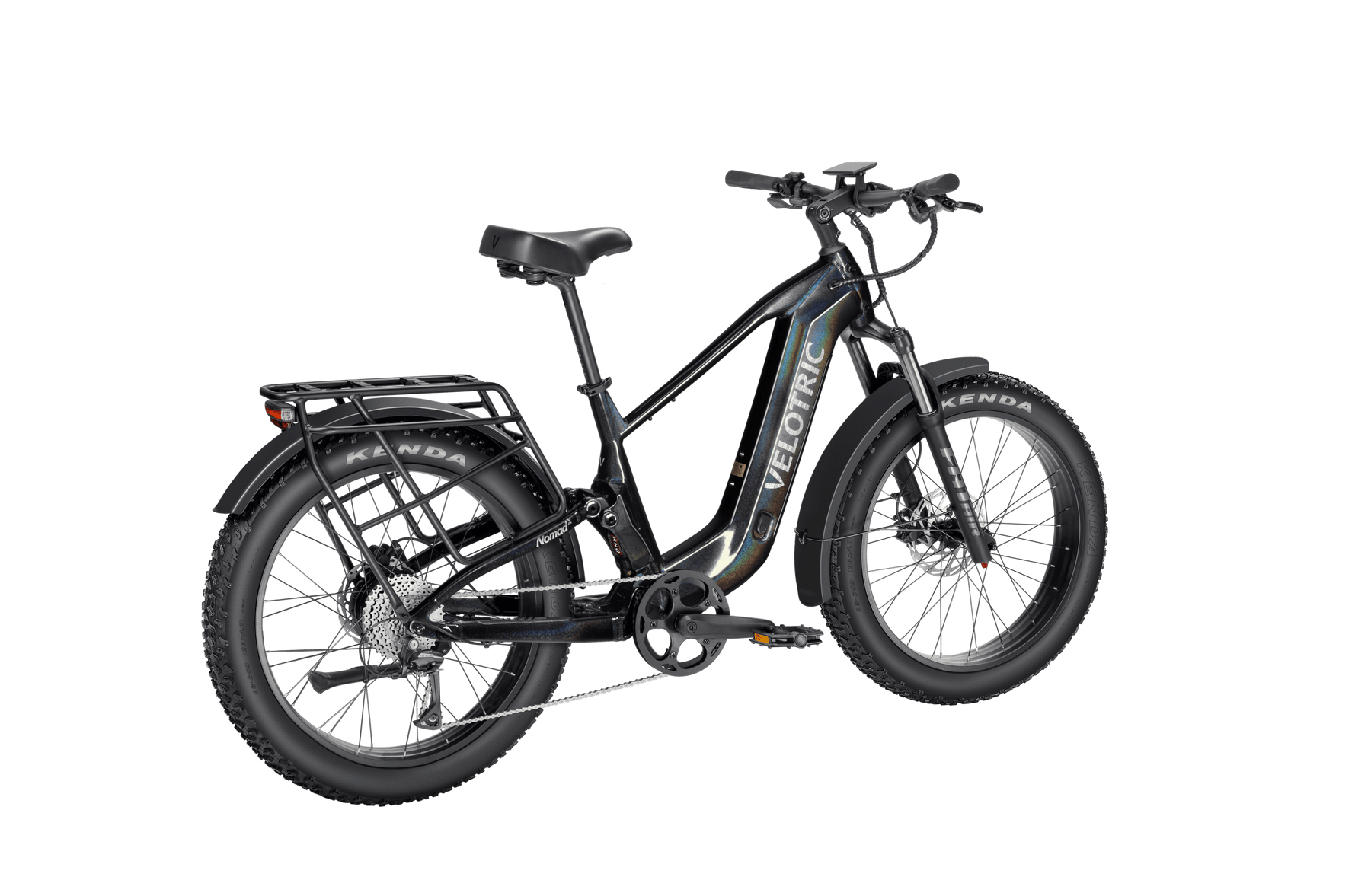

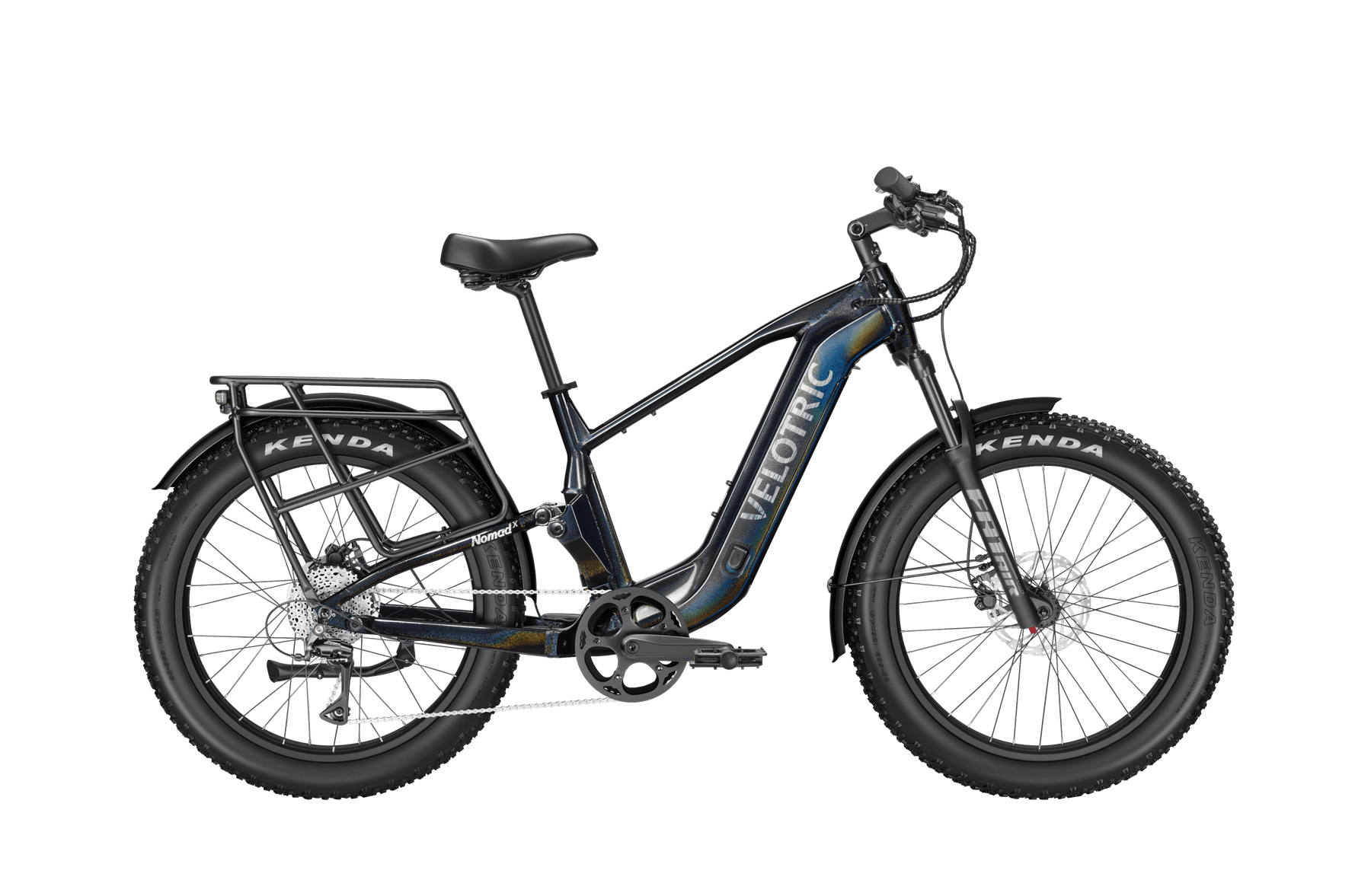

| Frame | High-Step, Step-Through |
Size Guide
| Bike Size | Regular (Step-Through); Large (High-Step) |
| User Height Range | Regular: 4'11'' ~ 5'10''; Large: 5'10'' ~ 6'5'' |
Electronics

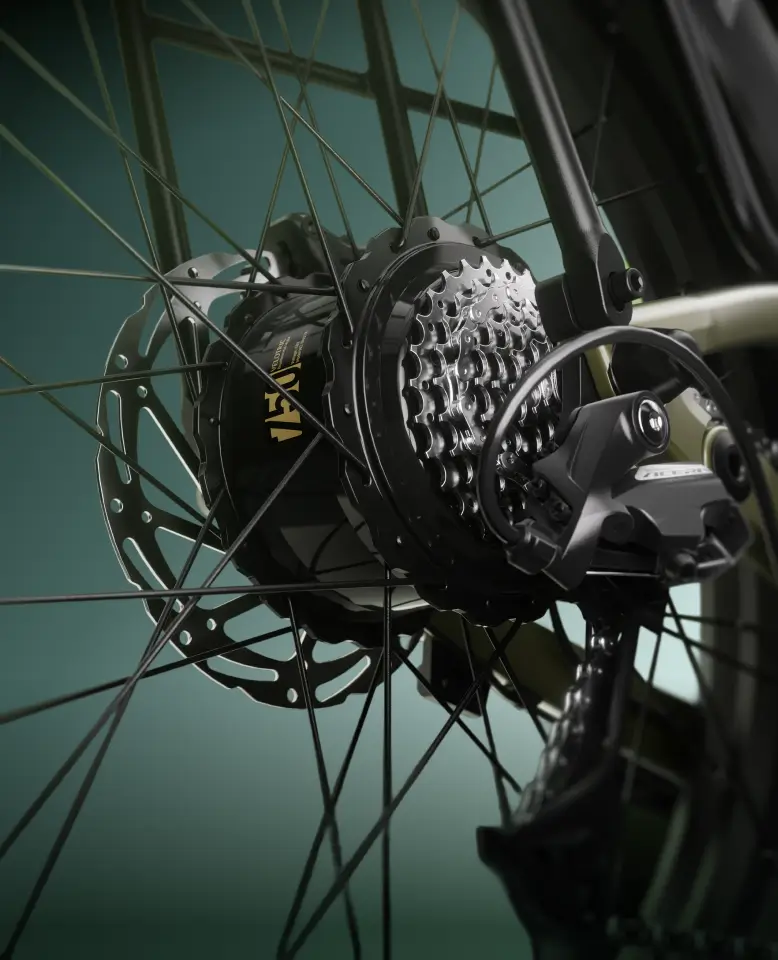

| Motor | 750W,105Nm Torque |
| Battery | Removable, 48V, 16.7Ah (801.6Wh), IPX7 & UL 2271 Certified |
| Cell | Samsung/LG 21700 cell, Certificated by UL2580 |
| Display | 3.5" Full color, High brightness, Adjustable angle |
| SensorSwap™ | Torque/Cadence |
| USB Port | USB Type-C phone charge |
| Throttle Assist | Trigger-control, removable |
| Pedal Assist Modes | 3 Riding Modes x 5 PAS Levels |
| Front Light | Light sensing 130 Lux / 500 LM high-output integrated LED |
| Water Resistant | IPX6 (Whole Bike) |
| App & Apple Find My™ | APP OTA & Find My |
Frameset
| Frame | Triple-Butted Aluminum Alloy, Rear Wheel 80mm Travel |
| Front Fork | Air suspension 120mm travel with Lock-out, Nutted, Rebound adjustable |
| Rear Shock | DNM 38mm Air suspension, 80mm wheel travel |
Speed & Range
| Max Speed | 12~28 MPH; 20 MPH (Default) |
| Class | 1/2/3 |
| Throttle Range | 50 Miles |
| Pedal Assist Range | 75 Miles |
Brake
| Brake | Tektro Hydraulic Disc Brake |
| Rotors | 203mm Front / 180mm Rear |
Drivetrain
| Chainrings | 48T |
| Crankset | Aluminum Alloy, 170mm |
| Freewheel | 11-40T |
| Rear Derailleur | SHIMANO 8-speed |
| Shift Lever | SHIMANO 8-speed |
Weight & Load
| Bike Weight | 80 Lbs |
| Max Bike Load | 560 Lbs |
| Rear Rack Load Capacity | 120 Lbs |
| Towing Capacity | 1000 Lbs |
Cockpit
| Handlebar | Aluminum Alloy, Ф31.8mm, 700mm |
| Grips | Durable ergonomic grips, lockable |
| Stem | Adjustable, Aluminum Alloy, ф31.8mm, 60mm (ST) / 90mm (HS) |
| Saddle | Velotric Comfortable & Ergonomic Seat |
Wheel
| Rims | Aluminum Alloy |
| Front Hub | Aluminum Alloy, nutted |
| Tire | KENDA 26x4.0" eBike puncture resistant tires |
Supports
| Fenders | Front and rear full coverage |
| Rear Rack | Aluminum Alloy, MIK HD |
| Pedals | Plastic |
| Kickstand | Aluminum Alloy, included, rear mount |
Certification
| UL Certification | UL 2849 & UL 2271 |
| ISO Standard | ISO 4210 |
Geometry

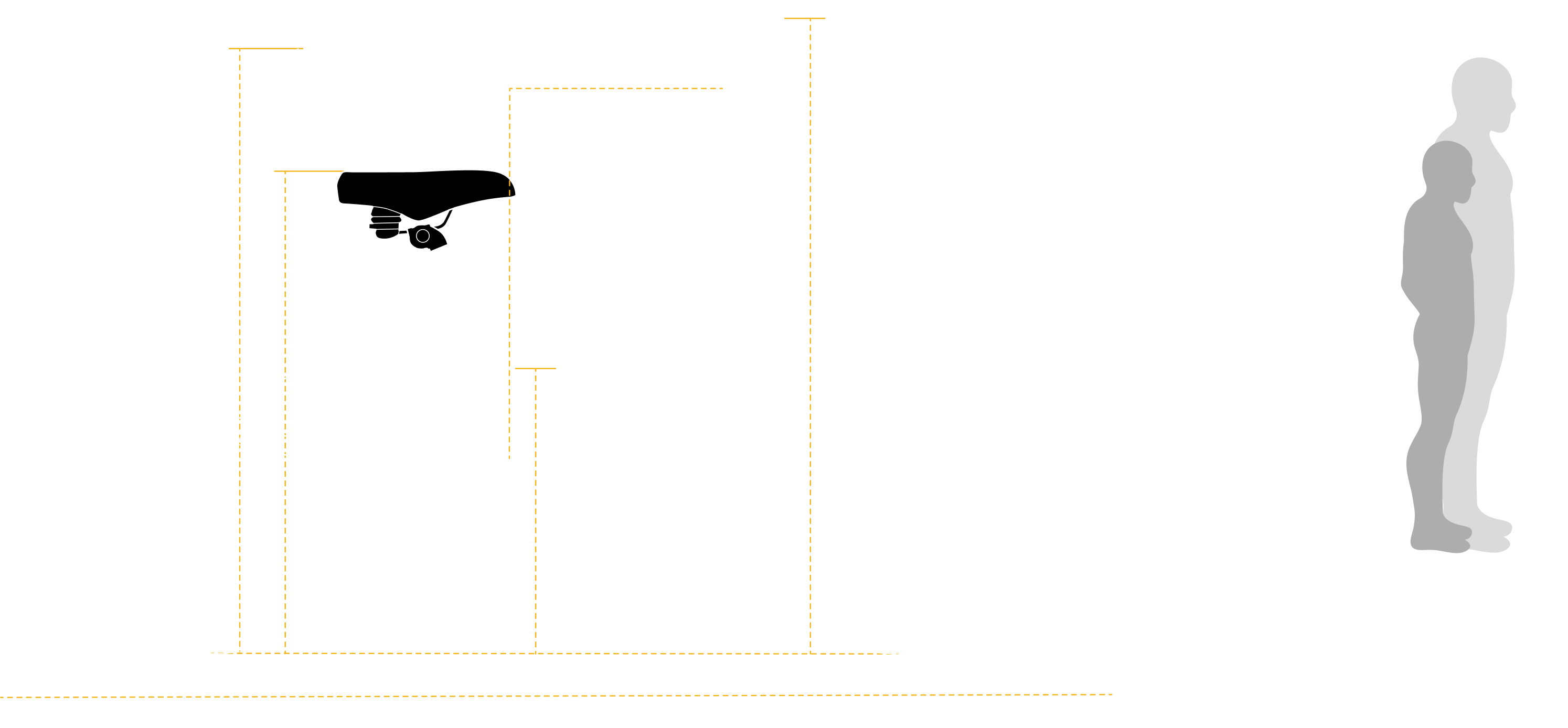

Step-Thru
Height
4'11"~5'10"
Reach
420mm
Handlebar Height
1080mm
Wheelbase
1330mm
Stand-Over Height
450mm
Min Saddle Height
795mm
Max Saddle Height
1100mm
Total Length
2065mm

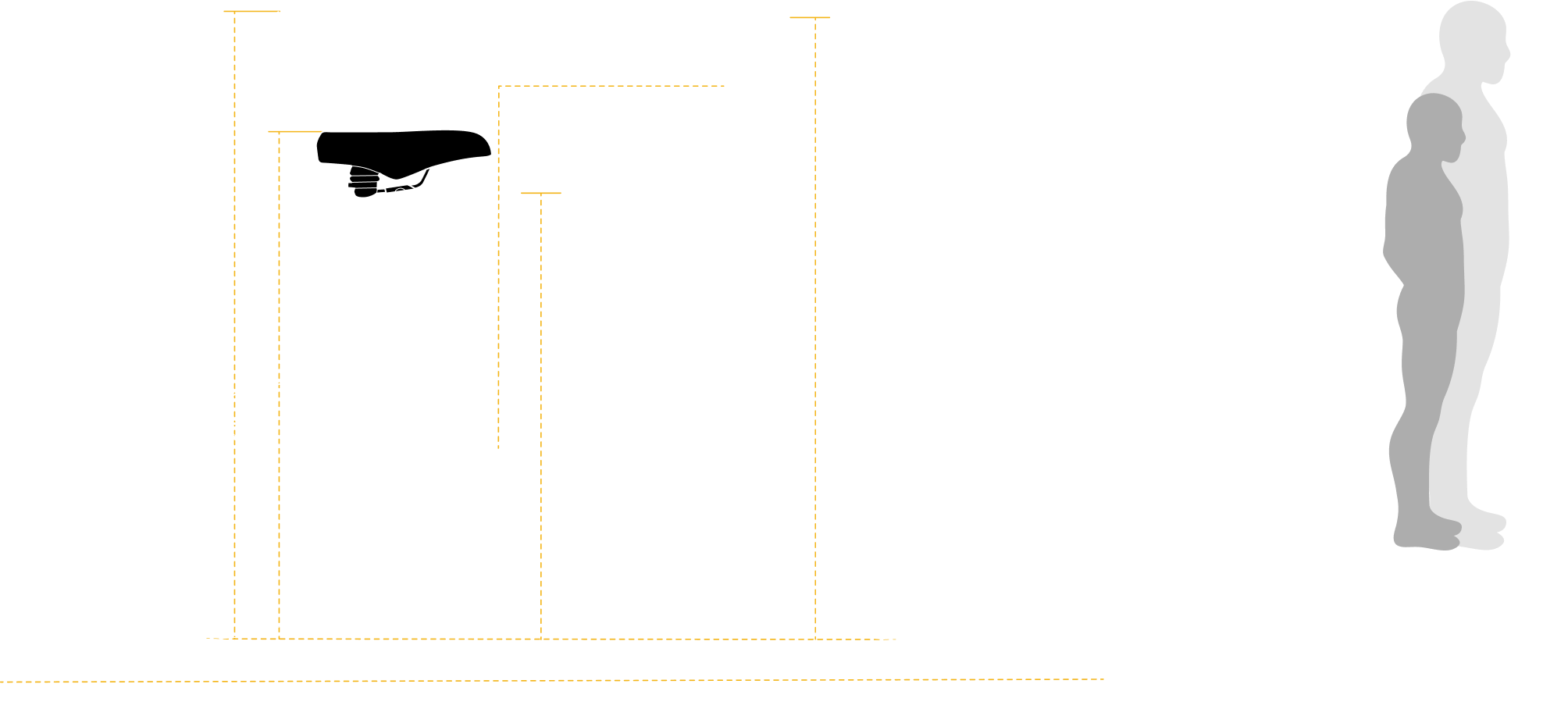

High-Step
Height
5'10"~6'5"
Reach
460mm
Handlebar Height
1080mm
Wheelbase
1315mm
Stand-Over Height
780mm
Min Saddle Height
860mm
Max Saddle Height
1330mm
Total Length
2085mm
