Manufacturer's Description:

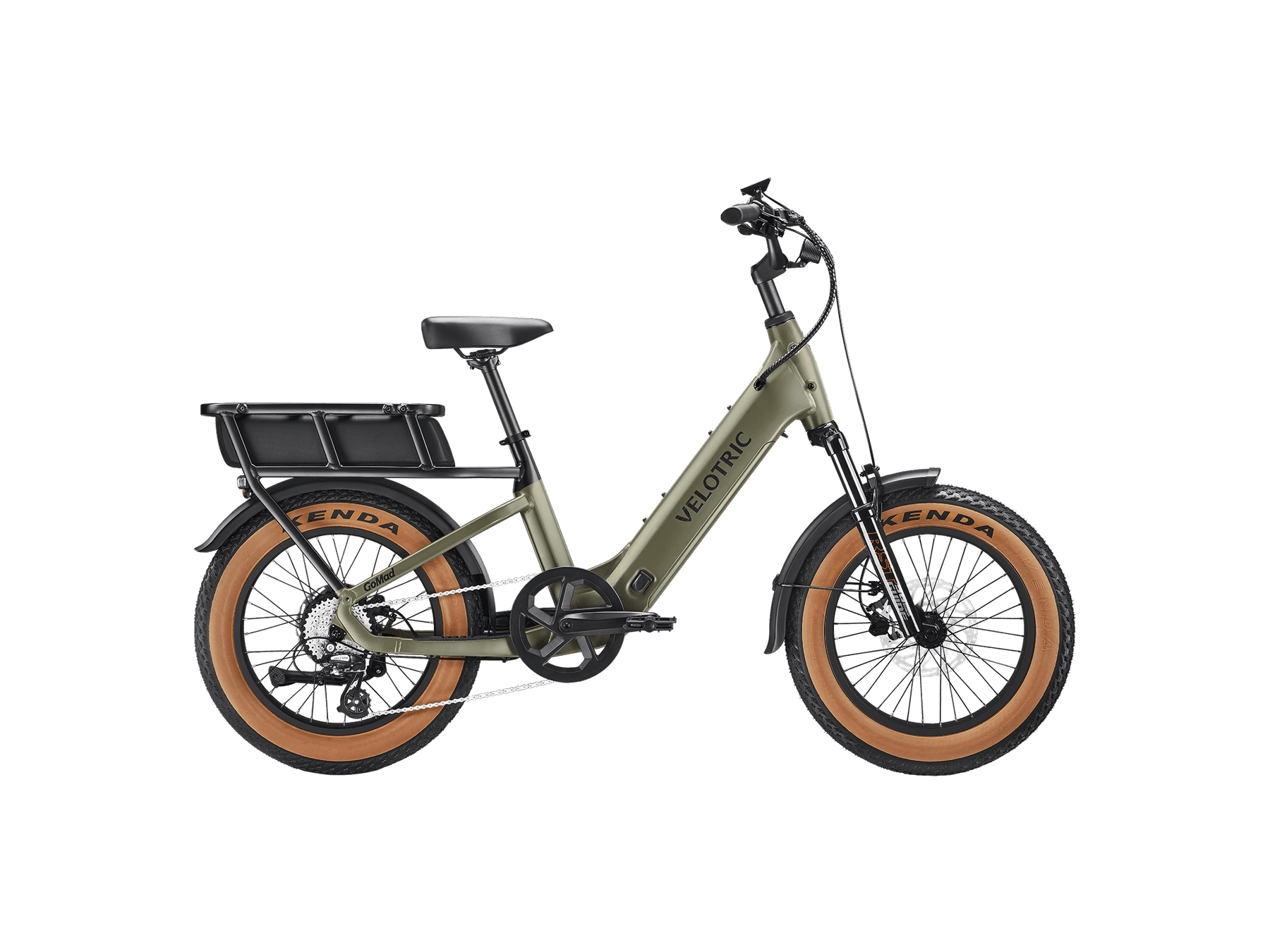

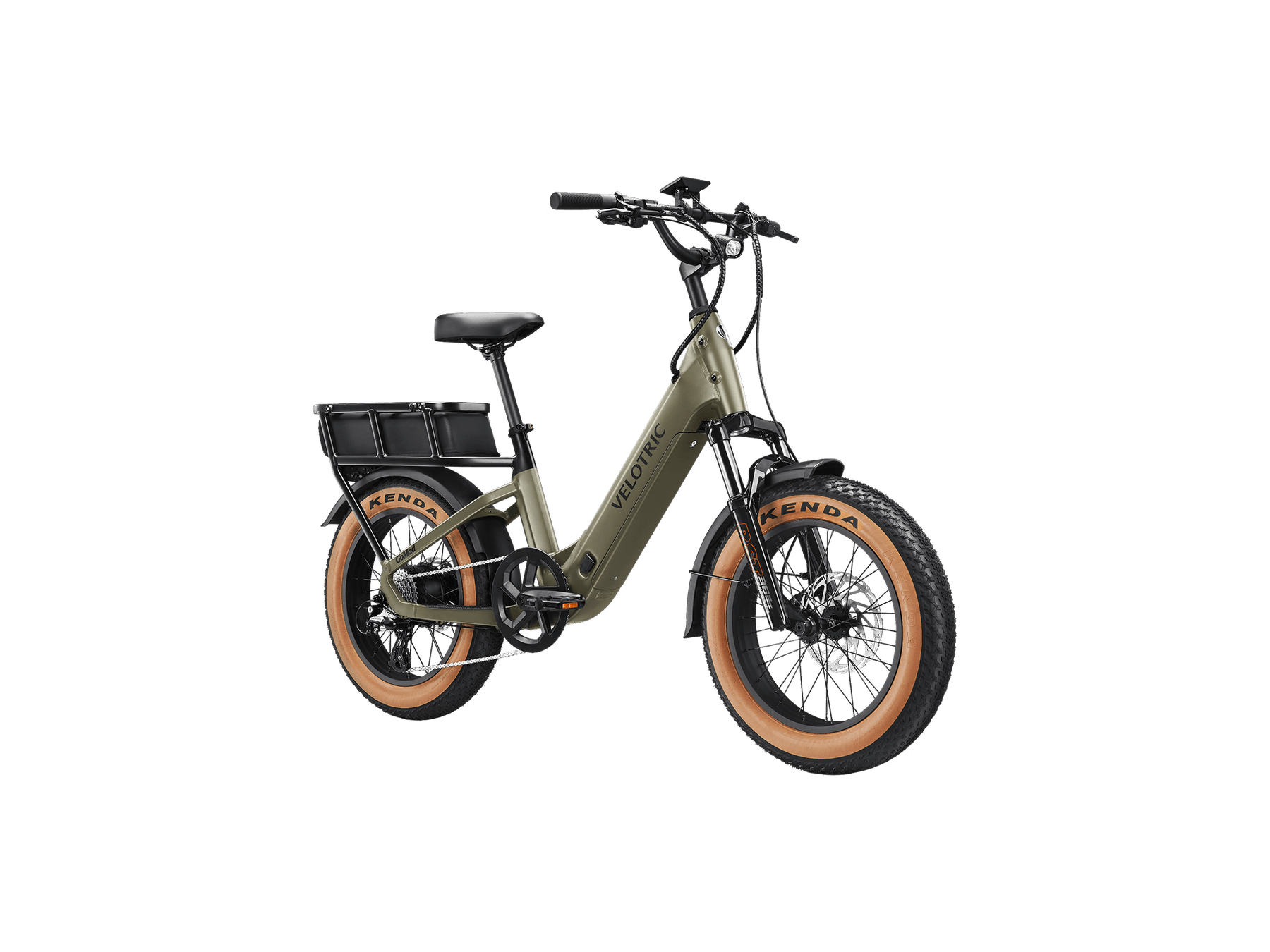

Designed for real-life use, Gomad combines strong hauling capability, stable handling, and reliable power for commuting, cargo, and daily riding.

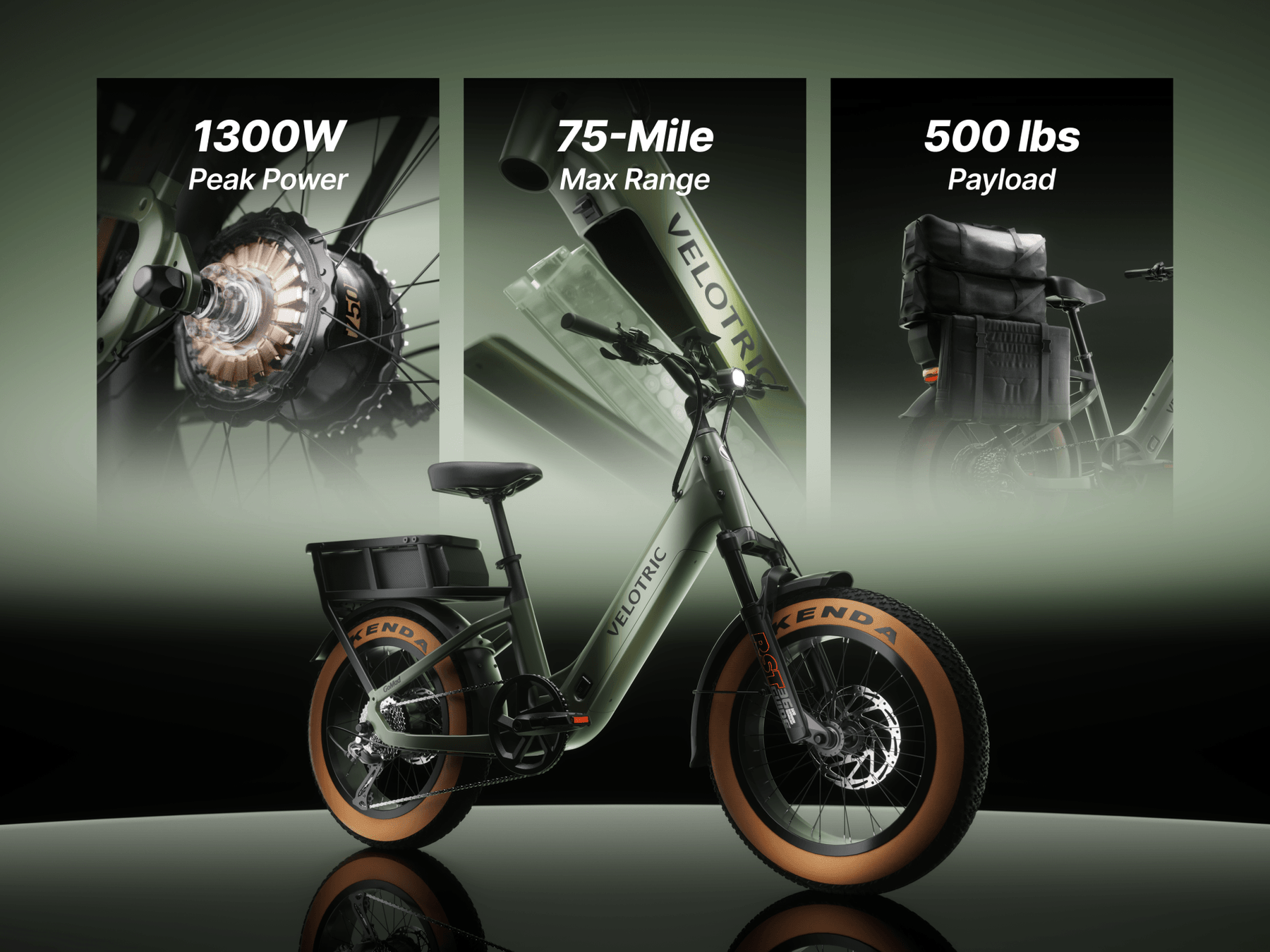

- Max Payload: 500 Lbs/176 Lbs Rear Rack (MIK HD)
- Motor: 750W（1300W Peak）/85Nm
- Max Range: 75 Miles
- Battery: 801.6 Wh/48V
- Top Speed: 28 MPH
- SensorSwap™: Torque/Cadence
- Pedal Assist Mode: 5 Modes
Amplified Power
Smooth Comfort
Ride Further
Carry Almost Everything

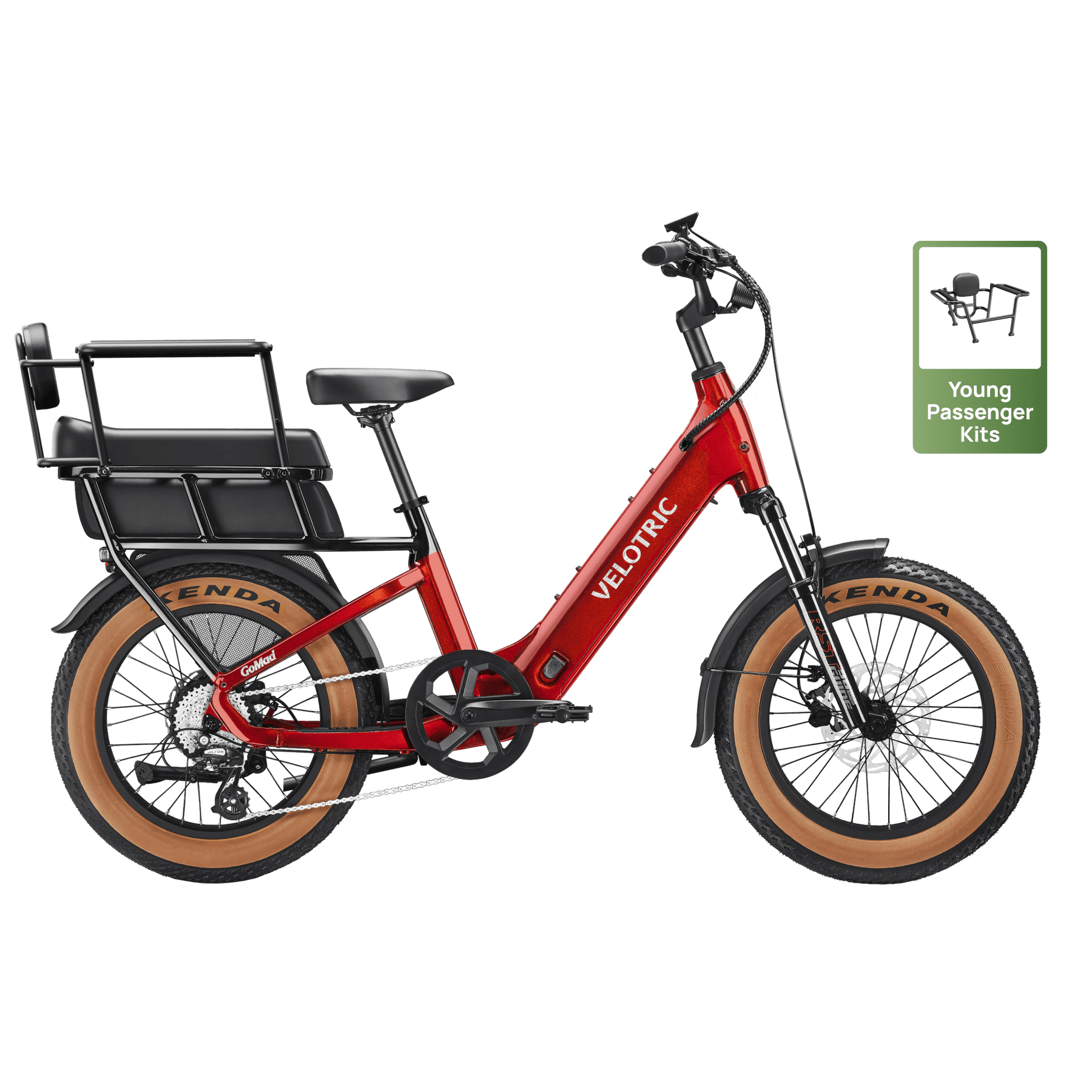

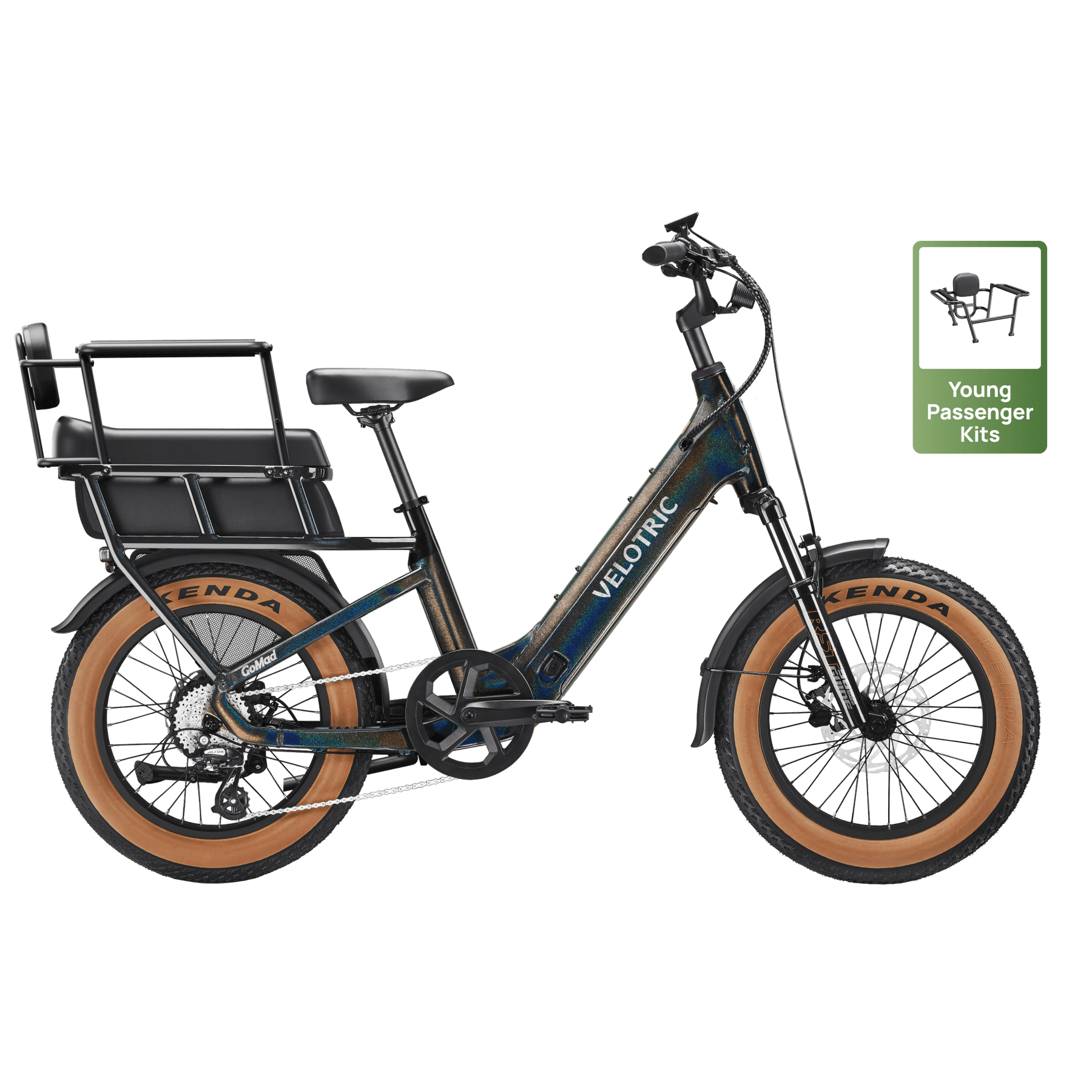

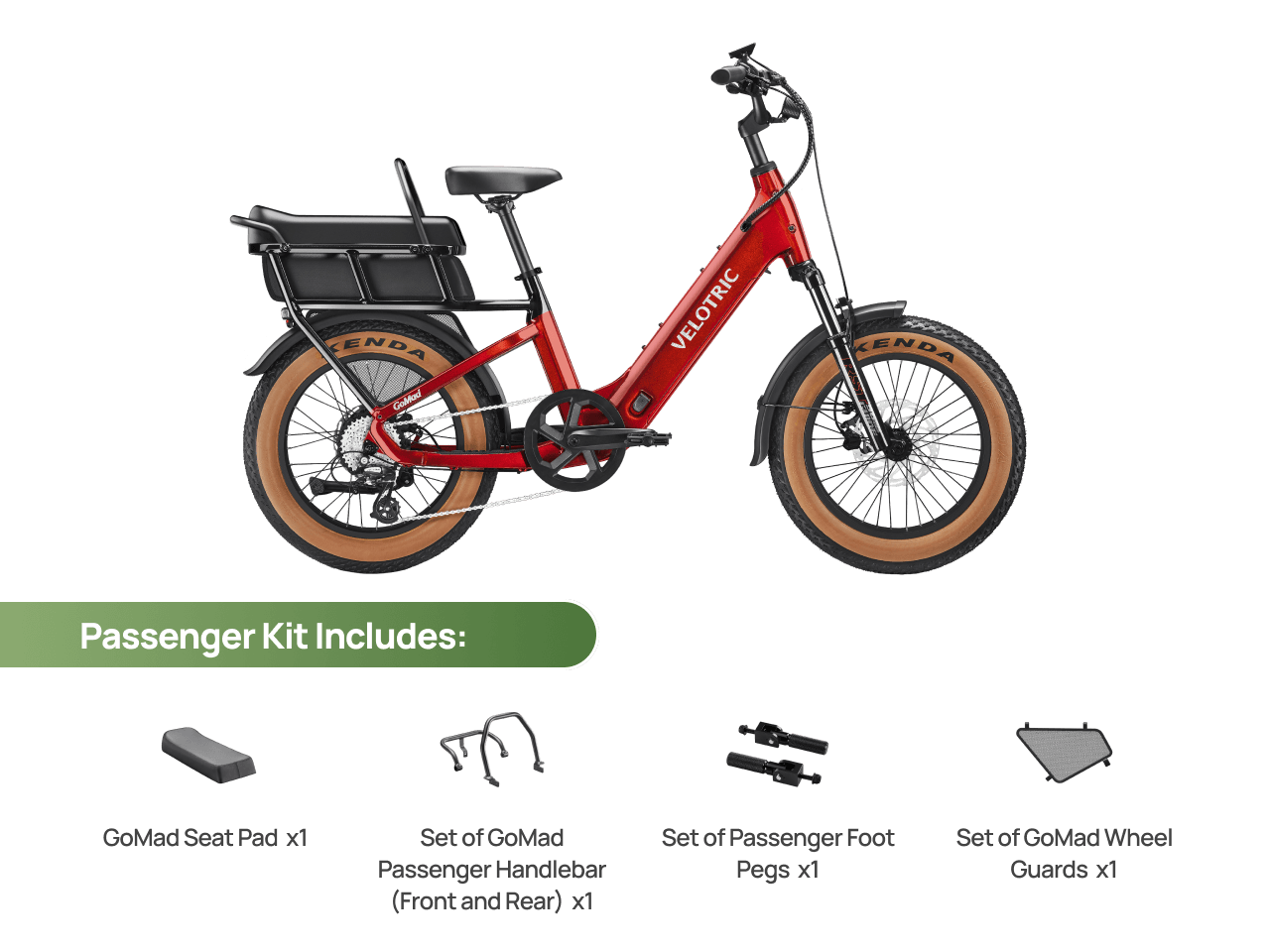

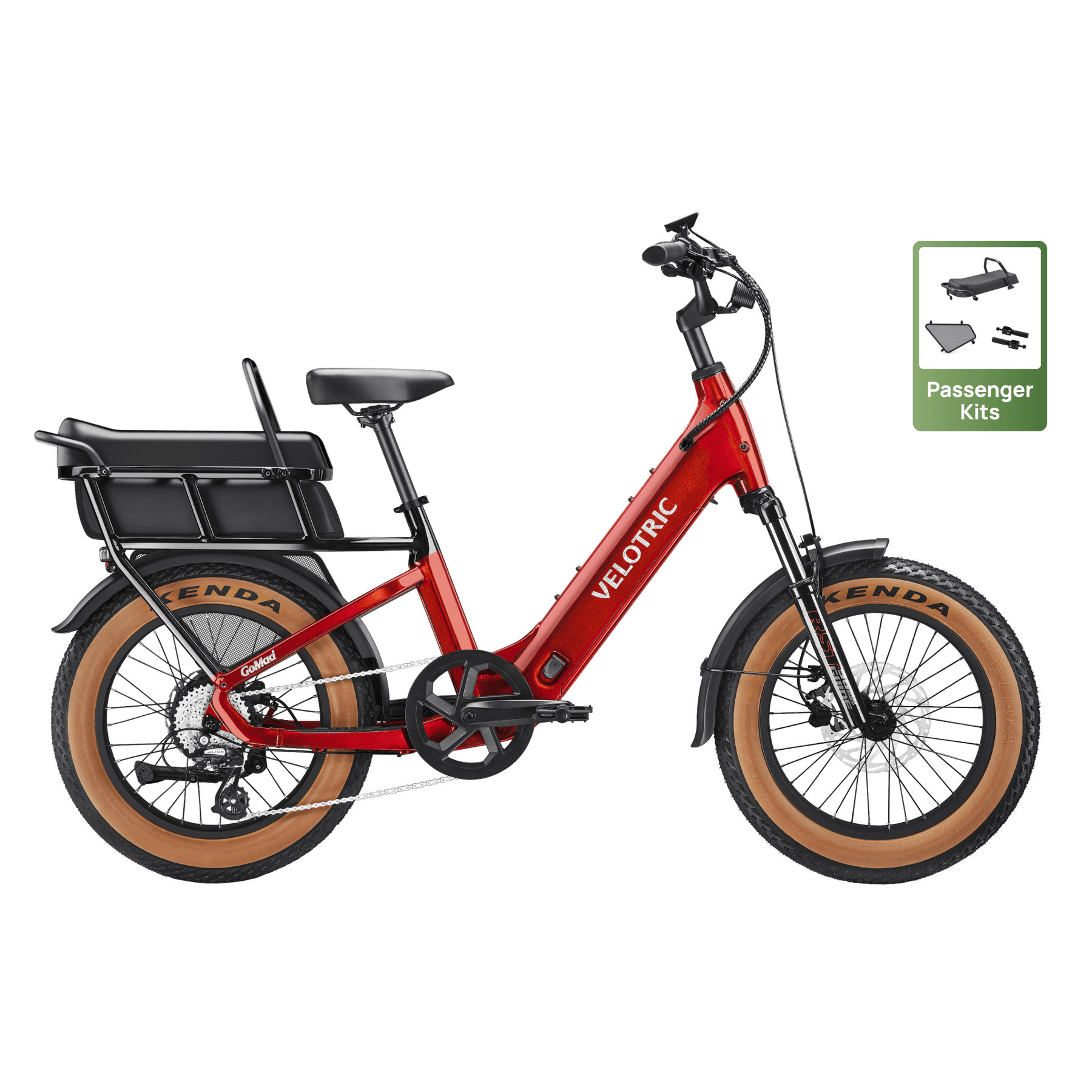

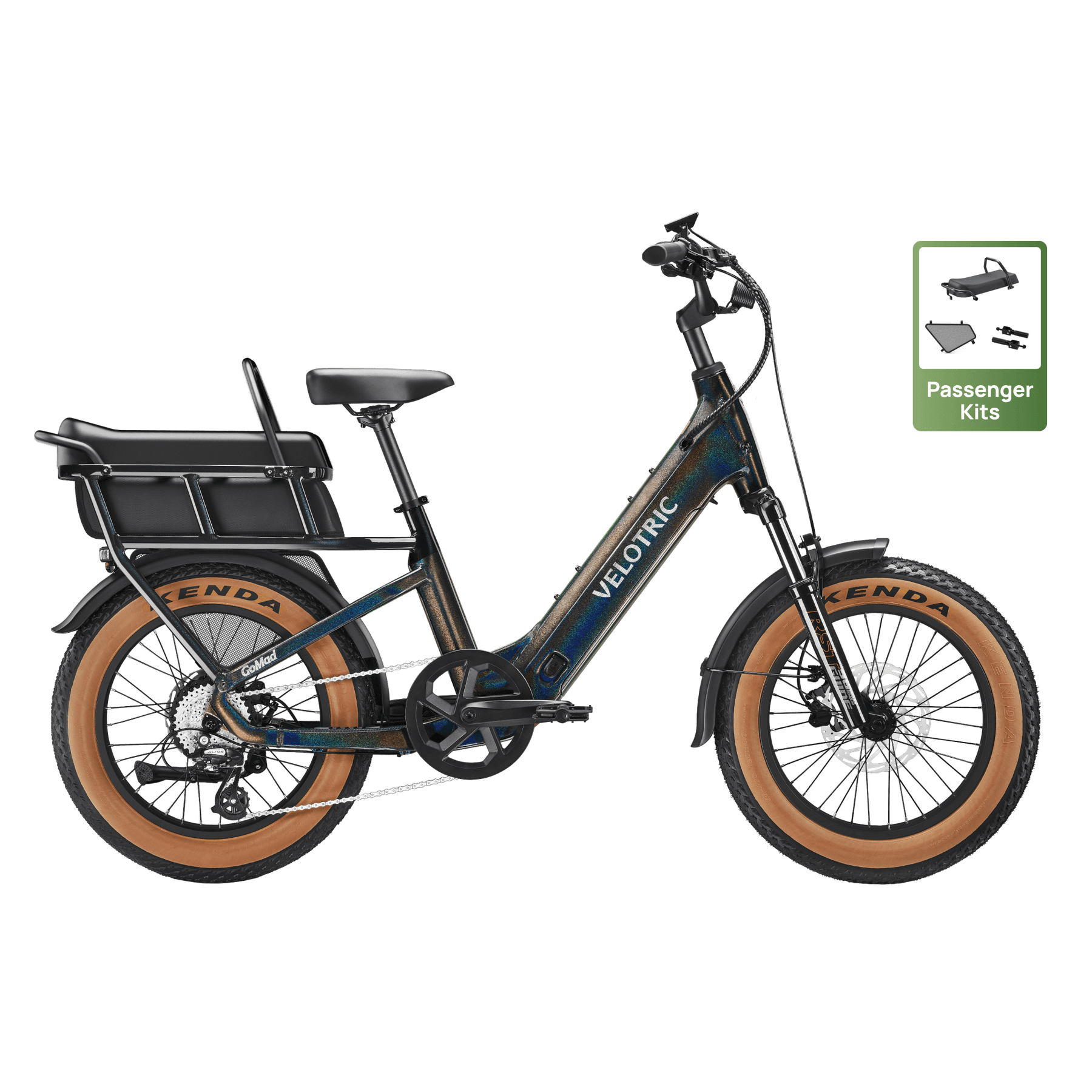

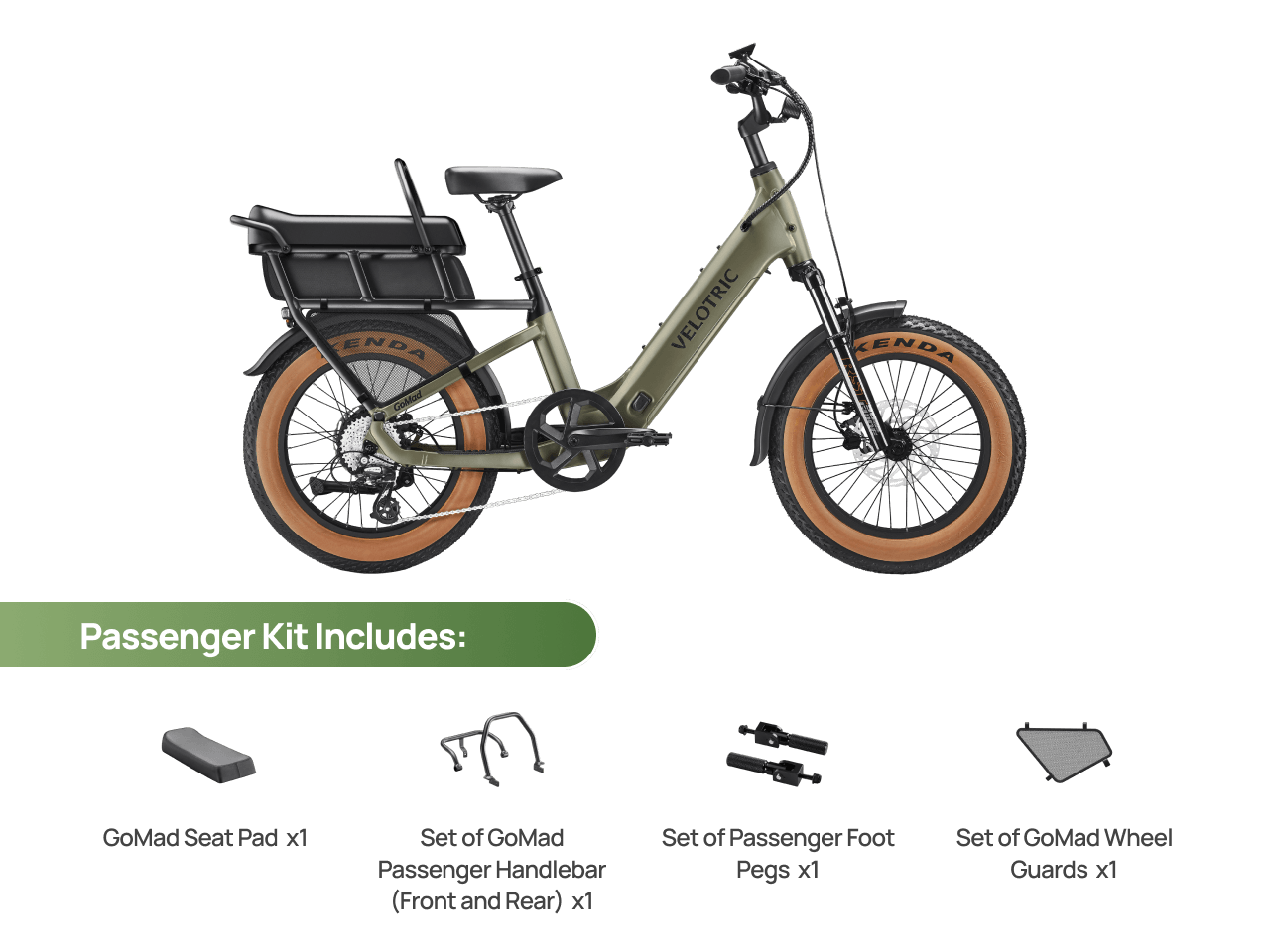

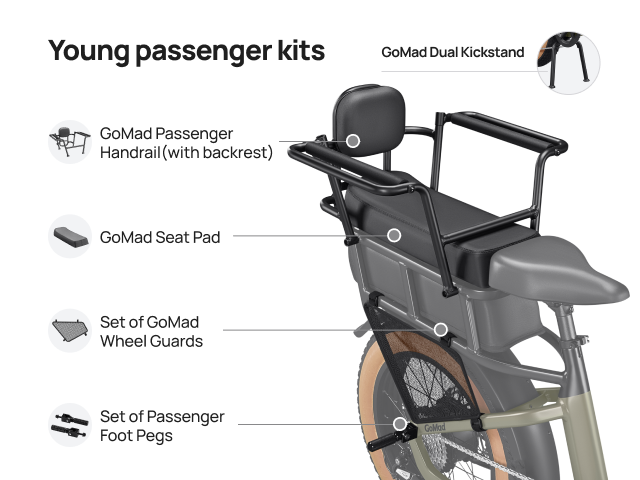

500 lbs of total capacity — with a 176 lbs-rated MIK HD rear rack built for passengers, kids, outdoor gear, and everyday errands.
Safety Comes First
Tektro hydraulic disc brakes — 203mm front, 180mm rear — deliver powerful, reliable stopping power. Even with a full load on board.
One Bike Fits All
An adjustable handlebar and stem fit riders from 5'0" to 6'3" — so everyone in the family gets a comfortable, dialled-in ride.
Smart, Personalized Control.
SensorSwap™
Switch between torque sensing for precise control and cadence sensing for smooth cruising — all with one click.
One-Touch Class Switching
Switch between Class 1, 2, and 3 with a single tap to match local regulations. Where permitted, Custom Mode unlocks Class 3 throttle speeds up to 28 mph.
Smart Tuning
Your ride, automatically tuned. User Profile adapts the optimal assist level to your body and riding style — while Ride Tuning lets expert riders fine-tune motor response for total control.
Walk Mode
Effortlessly walk your bike at a controlled pace — anti-rollback support holds it firmly on hills so it never rolls back on you.
Specifications
Size Guide
| Bike Size | One Size |
| User Height Range | 5'0'' ~ 6'3'' |
Electronics
| Motor Hub | 48V, 750W (1300W Peak Power), 85Nm |
| Battery | 48V, 16.7Ah (801.6Wh), IPX7, UL2271 Certified |
| Cell | Samsung/LG 21700 cell, UL2580 Certified |
| Charger | 48V, 3A Fast Charger |
| Display | 3.5" Full Color, High Brightness, Bluetooth, NFC, Adjustable Angle |
| Sensor | Torque and Cadence Sensor |
| USB Port | USB Type-C Phone Charge |
| Throttle Assist | Trigger-control, Removable |
| Pedal Assist Modes | 5 Riding Modes + Stealth Mode / Ride Tuning |
| Walk Mode | 2.9MPH / Walk & Hold |
| Rear Light | Braking Indicator, Turn Signal, Rear Light Steady/Flash, Integrated with Rear Rack |
| Front Light | 500LM High-output Integrated LED, Adjustable Angle |
| Water Resistant | IPX6 |
| App | App OTA |
| Anti-theft | Apple Find My & Android Find Hub, NFC Card Unlock |
Frameset
| Frame | Triple-Butted Aluminum Alloy |
| Fork | RST Hydraulic Suspension 100mm Travel with Lock-out, 36mm Inner Tube |
Speed & Range
| Max Speed (Default) | 20 MPH |
| Max Speed Adjustable Range | 12~28 MPH |
| Class | 1/2/3 |
| Throttle Range | 50 Miles |
| Pedal Assist Range | 75 Miles |
Brake
| Brake | Tektro Hydraulic Disc Brake |
| Rotors | 203mm Front / 180mm Rear |
| Brake Levers | Aluminum Alloy, with Power Cutoff |
Weight & Load
| Bike Weight | 77 lbs |
| Max Bike Load | 500 lbs |
| Rear Rack Load Capacity | 176 lbs |
Cockpit
| Handlebar | BMX Style, 31.8mm Bar Clamp, 700mm |
| Grips | Durable Ergonomic Grips, Lockable |
| Stem | Quill Stem, 31.8mm Clamp, 30mm Length, 140mm Vertical Adjustment Range |
| Saddle | VELOTRIC Comfort Ergonomic Seat |
| Seatpost | Aluminum Alloy, Φ30.9mm |
| Clamp | Aluminum Alloy, Quick Release |
Wheel
| Rims | Aluminum Alloy |
| Front Hub | NOVATEC Aluminum Alloy, 15x135mm Thru-axle |
| Tire | KENDA 20x4.0" eBike Puncture Resistant Tires |
Supports
| Fenders | Plastic, Front and Rear Full Coverage |
| Rear Rack | MIK HD Compatible, Integrated with Frame |
| Rear Rack Bag | Included as Standard Equipment |
| Pedals | Plastic |
| Kickstand | Aluminum Alloy, Included, Rear Mount |
Certification
| UL Certification | UL2849 & UL2271 |
| ISO Standard | ISO 4210 |
Drivetrain
| Chainrings | 52T Narrow-Wide Chainring |
| Crankset | Aluminum Alloy, 165mm |
| Freewheel | 8-speed, 11-34T |
| Chain | KMC 8-speed |
| Rear Derailleur | SHIMANO 8-speed |
| Shift Lever | SHIMANO 8-speed |
Geometry
Height
5'0" – 6'3"
Reach
420mm
Handlebar Height
1040-1180mm
Wheelbase
1171mm
Stand-Over Height
500mm
Min Saddle Height
720mm
Max Saddle Height
930mm
Total Length
1811mm
