Discover the Velotric Fold 1 Lite Ebike - a compact foldable electric bike with a powerful 500W motor, UL certification, and IPX7 waterproofing. Explore now!
Key Features
-
Max Range: 48 Miles
-
Top Speed: 28 MPH
-
Max Load: 440 Lbs
-
Battery: 486 Wh
-
Motor: 500W/55Nm
- Folding Size: 38”L x 19”W x 33”H
Compact Size Big Possibilities

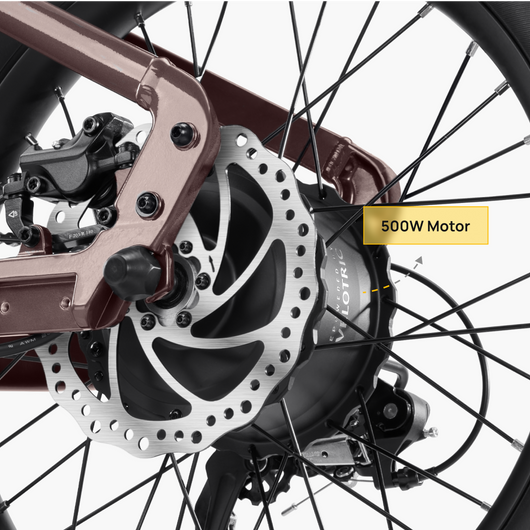

Fun-Ready Power
Velotric Fold 1 Lite's motor generates 500W output and delivers 55Nm torque. Enjoy powerful acceleration and climbing ability.

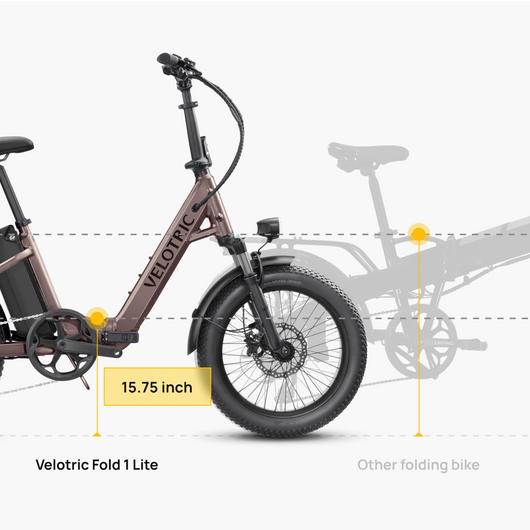

20% Lower Step-Through Design
The 15.75 inch standover height is 20% lower than the competition. Easily hop on and off making it ideal for those with knee or hip concerns, and friendly to elderly riders.

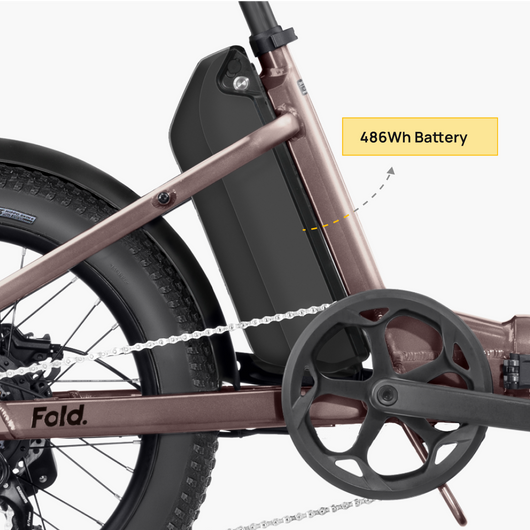

More Range, More Adventures
486Wh battery with high-quality cells ensures up to 48 miles of range for longer adventures.

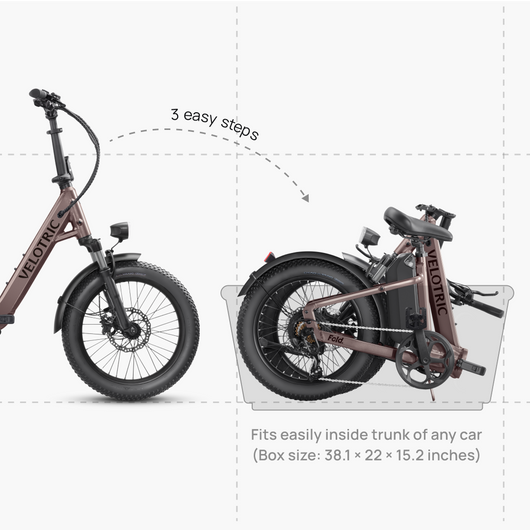

Easy to Fold, Easy to Store
In 3 simple steps, the Fold 1 Lite fits easily inside the trunk of any car, SUV, closet or even boat!
Specification
Size Guide
-
Bike Size: One Size
- User Height Range: Regular: 4'9" ~ 6'5"
Frameset
-
Frame: Aluminum Alloy
- Fork: Coil suspension 60mm travel with Lock-out
Electronics
-
Motor: 48V, 500W, 55Nm
-
Battery: 48V, 486Wh, IPX7, Certificated by UL 2271
-
Cell: 18650 cell, Certificated by UL 2580
-
Charger: 48V, 2A Fast Charger
-
Sensor: Cadence Sensor
-
Display: 1.8" LCD, High brightness
-
USB Port: USB Type-A phone charge
-
Throttle: Thumb-control, removable
-
Pedal Assist: 5 Levels
-
Walk Mode: 2.9 MPH
-
Front Light: 60 Lux high-output integrated LED, adjustable angle
-
Rear Light: Braking Indicator, integrated with rear fender
- Water Resistant: IPX6
Speed & Range
*A 187-lb rider using PAS 1 on flat roads.
-
Default Speed: 20 MPH
-
Max Speed Adjustable Range: 12~28 MPH
-
Class: 1/2/3
-
Throttle Range: 40 Miles
- Pedal Assist Range: 48 Miles
Drivetrain
-
Chainrings: 52T
-
Crankset: Aluminum Alloy, 170mm
-
Cassette: 7-speed
-
Rear Derailleur: SHIMANO 7-speed
-
Shift Lever: SHIMANO 7-speed
- Chain: 7-speed
Brake
-
Brake: Hydraulic Disc Brake
-
Rotors: 180mm front and rear
- Brake Levers: Aluminum Alloy, with power cutoff
Wheel
-
Rims: Double-wall Aluminum Alloy
-
Front Hub: Aluminum Alloy, nutted
- Tire: 20x3.0" eBike puncture resistant tires
Cockpit
-
Handlebar: Aluminum Alloy, Φ25.4mm, 660mm
-
Grips: Durable ergonomic grips, lockable
-
Saddle: VELOTRIC urban comfort ergonomic seat
-
Seatpost: Aluminum Alloy, φ30.9mm, 350mm
- Clamp: Aluminum Alloy, quick release
Supports
-
Fenders: Steel, front and rear full coverage
-
Pedals: Plastic, foldable
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
-
Bike Weight: 61lbs
- Max Bike Load Capacity: 440lbs
Certification
-
UL Certification: UL 2849
- ISO Standard: ISO 4210
Geometry
Regular
| Height | 4'9'' ~ 6'5'' | Seat Tube Length | 410mm | Head Tube Length | 200mm |
| Stack | 531mm | Reach | 445mm | Stand-Over Height | 400mm |
| Top-Tube Length (horizontal) | 634mm | Min Saddle Height | 800mm | Max Saddle Height | 990mm |
