Optional assembly & optional in-store warranty is available.
Price is subject to change. We match the official MSRP.
With Judd Rev, you can have your cake and ride it, too: travel far, get there fast, carry light, and store small. This foldable ebike is compact and extremely lightweight thanks to its aluminum folding frame and components – you can easily throw it in your trunk, bring it on a boat, or carry it upstairs to your brownstone walk-up. Portability is the top priority, but it’s only half the fun – this electric bicycle’s loaded with power that packs a punch: 350W rear hub motor, 36V/360Wh Li-ion battery, throttle & Pedal Assist, 20mph top speed, and up to 38 miles of range to take you just about anywhere. Simply unfold and behold! New adventures await.
Get to know your ride
- 20mph Top Assisted Speed
- Up to 38-Mile Range
- Lightweight Aluminum Folding Frame
- 350W Planetary Geared Hub Motor
- 36V/360Wh Li-Ion Battery
- 20x2.1” City Tires
Features

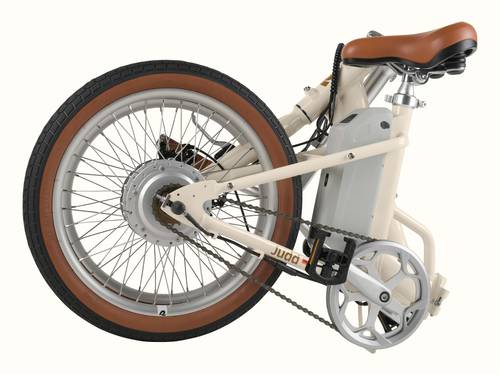

Lightweight, Compact Folding Frame
Fold up this ebike and put it in your trunk, bring it on your boat, or carry it into your walk-up apartment. Its lightweight aluminum folding frame & components make it the perfect bring-anywhere companion.

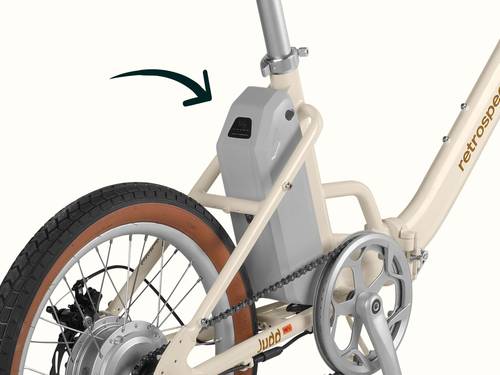

On- or Off-Bike Charging
This ebike’s battery can be charged both on and off the bike and offers up to 38 miles of range when fully charged.

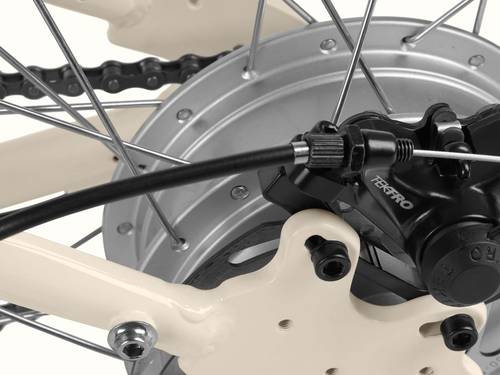

Quiet, Consistent, Confident Braking
Tektro mechanical disc brakes with upgraded semi-metallic pads and 160mm ebike specific rotors offer reliable stopping power, so you can brake confidently.

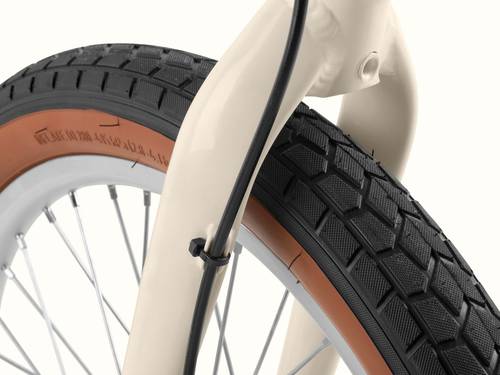

Cruise Smoothly
20x2.1” City tires are thick enough to smooth out your ride and lightweight for easier handling.

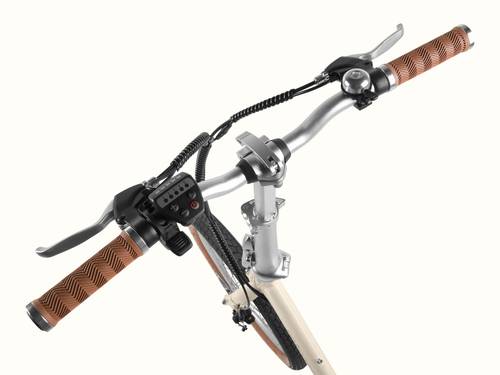

Superior Grip All Around
Sweaty palms have met their match with comfortable, non-slip lock-on handlebar grips.

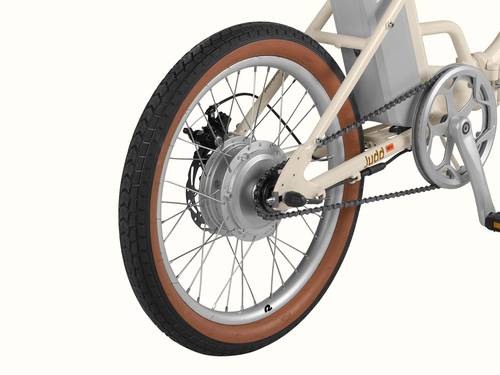

Easy-Change Rear Wheel Removal System
Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to change a tube, fix a puncture, or take a look under the metaphorical hood.

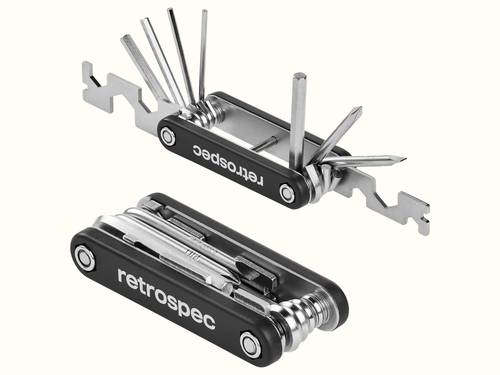

All-in-One Tool Included
This ebike comes with all the tools you need for assembly and maintenance – all conveniently folded up in one portable, multi-functional tool that fits in your pocket for tune-ups on-the-go.
UL2271 & UL2849 Safety Certified
This ebike has been tested and certified to UL2271 and UL2849 standards for electric bicycles.
Specifications
Frameset
- Frame: Judd 6061 aluminum with external seat tube mounted battery
- Fork: Rigid alloy
Wheelset
- Front Hub: Aluminum bolt-on with 17mm axle nuts. 36 hole
- Spokes: 13G with brass nipples
- Tires: 20x2.1" City Tire
- Rims: 20" single-wall aluminum 36H, for disc brake
E-Power System
- Motor: 350W rear hub
- Battery: 360Wh/36V 18650 cells; Charge on or off bike
- Display: Left mounted LED
- Range: Up to 38 Miles
- Sensor: Cadence
- UL Testing: UL2849 & UL2271 Certified
- Pedal Assist: 5 Levels
Drivetrain
- Crankset: 3-Piece aluminum
- Chain: KMC single speed
- BB: sealed cartridge
- Freewheel/Cassette: Single speed 18T
- Chain Rings: Steel 48T
Components
- Headset: 1-1/8” semi-integrated threadedless
- Rear Brakes: 5 Star lever with Tektro mechanical caliper with 160mm rotors and semi-metalic pads
- Front Brakes: 5 Star lever with Tektro mechanical caliper with 160mm rotors and semi-metalic pads
- Handlebars: Alloy Comfort Rise Bar
- Grips: Lock-on comfort grips
- Stem: Alloy Folding
- Saddle: Retrospec Sport Comfort saddle
- Seatpost: Aluminum 30.9mm diameter, 400mm length
- Seatpost Clamp: Aluminum quick release
- Pedals: Folding platform pedals
Extras
- Recommended Weight Limit: 350lbs
- Kickstand: Aluminum chainstay mounted, 40MM bolt pattern
- Folded Dimensions: 34"(L) x 20"(W) x 28"(H)
- Compatible With: Rover Trailers , Aer Compressor , Tote , Tote Plus , Everything Bin
Sizing
How to measure my inseam for a bike
Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here's how they work:
- Stand upright with your feet 6-8" apart.
- Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
- Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
A Rider Height
B Inseam
C Top Tube
| Size | Height Range | Standover Height |
| 20" | 29.5" |
