Not your average beach cruiser.
Casual comfort meets modern luxury in Chatham Rev+. This electric cruiser expertly marries powerful, state-of-the-art conveniences with the classic comfort features you love on your regular beach bike – making for the perfect best-of-both-worlds experience. With a powerful motor and battery offering an improved range of up to 52 miles, you can cruise all day long; and with Pedal Assist, throttle, wide tires, and an upright riding position, you’ll stay comfortable the whole time. Then, when your adventure is done for the day, turn on your front and rear lights and enjoy taking the long way home.
Get to know your ride
- 20 mph Top Assisted Speed
- Up to 52-Mile Range
- 500W Planetary Geared Hub Motor
- 48V/500Wh LG Li-Ion Battery
- Tektro Mechanical Disc Brakes
- 3” Wide Puncture Protected Tires
- Front & Rear Lights
Features

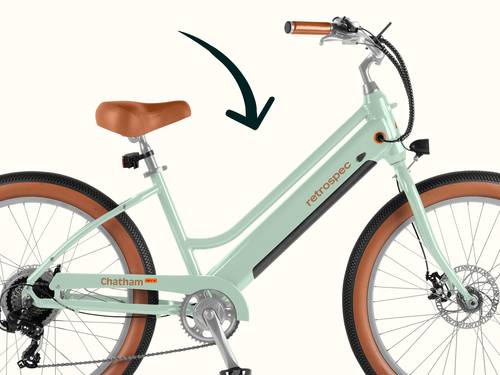

Hop On With Ease
Getting on and off your bike has never been easier, thanks to an accessible step through frame shape that also allows for a comfortable, upright riding position.
Easy Access to Controls
The handlebar-mounted button pod controls everything, from the throttle, to the headlight, to walk mode, pedal assistance, and more – all right at your fingertips.

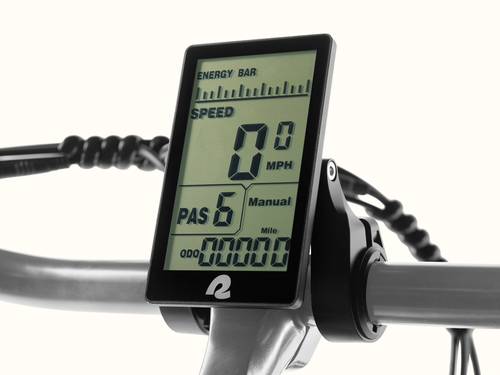

Center-Mounted B/W Display
The black-and-white LCD screen is large and high-contrast, making it easy to read in the bright sun – at a glance, you can keep track of your bike’s battery level, Pedal Assist mode, speed, and more with your eyes on the road.

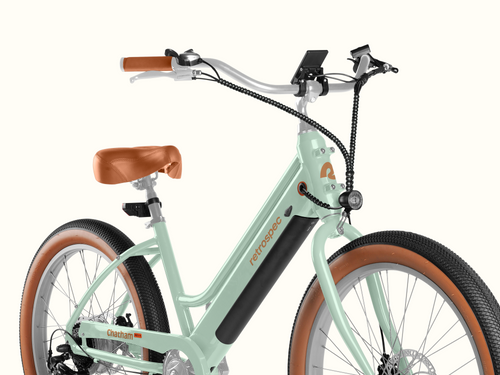

Durable, Long-Lasting, High Range
48V/500Wh Li-ion battery using LG 21700 cells offers a range of up to 52 miles miles and can be charged on or off the bike. Fully charges within 5-6 hours.

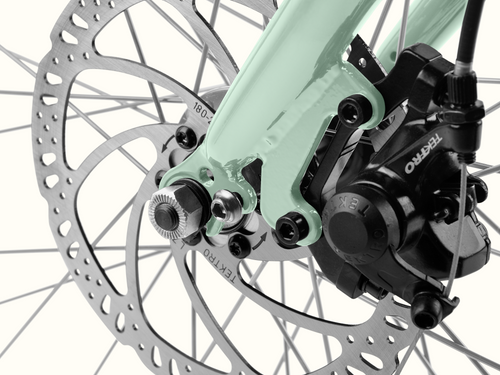

Quiet, Consistent Braking
Tektro mechanical disc brakes with180mm rotors offer more reliable stopping power, so you can brake confidently in all kinds of weather conditions.

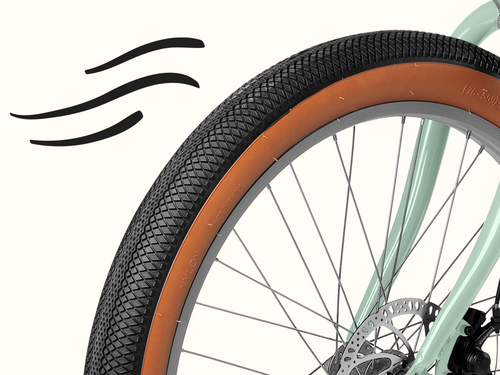

Cruise Smoothly
Extra wide and grippy 3” tires roll right over bumps for a smooth ride, with additional puncture protection that keeps the risk of flat tires to a minimum and a versatile Shimano 7-speed Mega-Range drivetrain that makes riding uphill or into headwinds a breeze.

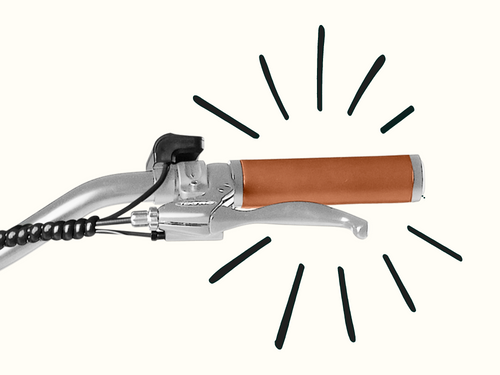

Superior Grip All Around
Sweaty palms and slippery feet have met their match with comfortable, nonslip handlebar grips and pedals.

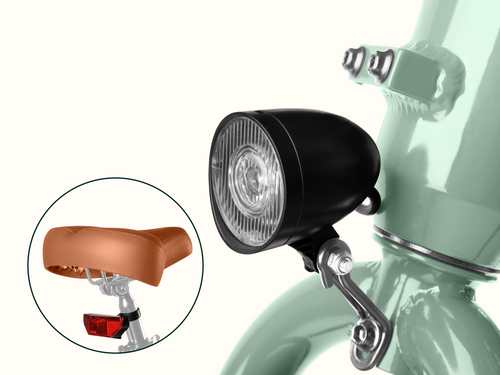

Sunset-Ready Front & Rear Lights
Don’t let the sun set on your adventures. This bike is equipped with an integrated headlight and battery-operated taillight so you won’t have to worry about getting back before dark.

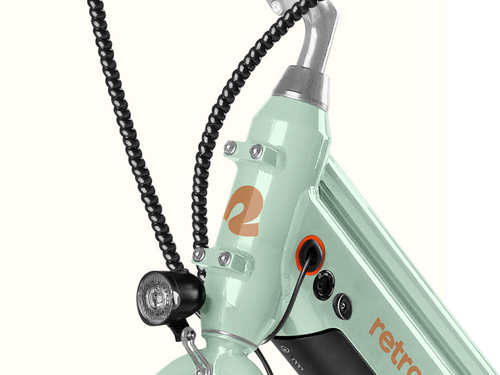

Customize to Meet Your Needs
With mounting points to easily add a rear rack, basket, fenders, and more, you can redesign your ride to be tailored to your adventures.
UL2271 & UL2849 Safety Certified
This ebike has been tested and certified to UL2271 and UL2849 standards for electric bicycles.
Specifications
Frameset
- Sizes: 16.5" Step Through
- Material: Alloy, 6061
- Dropouts: 1x rear fender eyelets, rear rack mounts,
- Replaceable Der Hanger: Yes
- Fork: Steel
Wheelset
- Rims: Alloy 36H for disc brake
- Hubs: Alloy bolt on 17mm nut
- Spokes: 13G/2.3mm w/brass nipples
- Tires: 26x3.0 with puncture protection
E-Power System
- Motor: 48V/500W geared
- Drive Mode: PAS/Thumb throttle Left side , cadence sensor
- Display: B&W LCD center mount display
- Charge Time (empty to full): Approximately 5-6hrs hrs.
- Range: 52+ miles
- Battery: 500Wh/48VLG 21700 cells; Charge on or off bike
- UL Testing: UL2849 & UL2271 Certified
- Pedal Assist: 6 levels with anytime throttle and walk mode
Drivetrain
- Derailleur - Rear: Shimano Tourney 7 speed
- Shifter(s): Shimano Tourney 7 speed
- Crankset: 42T alloy
- Chain: KMC Z7
- BB: JIS square taper cartridge
- Freewheel/Cog: Shimano 14-34T
Components
- Headset: Threaded,, 1 1/8"
- Brakes: Tektro mechanical with 180mm rotors and semi-metalic pads
- Handlebars: Alloy cruiser
- Grips: Comfort with alloy lock rings
- Stem: Alloy quill
- Saddle: Comfort Cruiser
- Seatpost: Alloy 25.4mm x 350mm
- Seatpost Clamp: Alloy QR
- Pedals: PP platform 9/16"
Extras
- Kickstand: Rear mount, adjustable, aluminum alloy
- Light(s): Integrated/system operated front light w/ battery operated rear light
- Chaincover: Full Coverage
- Tools: 2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench
- Recommended Weight Limit: 350lbs
Sizing
How to measure my inseam for a bike
Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here's how they work:
- Stand upright with your feet 6-8" apart.
- Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
- Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
A Rider Height
B Inseam
C Top Tube
| Size | Height Range | Standover Height |
| Frame: 16.5" | 5'2"-6'1" | 24" |
