Designed to cruise in comfort
Chatham Rev 2 was made for effortless fun in the sun: Ride in total comfort with the padded saddle, non-slip grips and pedals, and sweptback handlebars that support a comfortable, upright riding position, and explore for hours with the bike’s batteries and motor that can carry you farther, faster. Cover more ground with a range of up to 38 miles and top speed of 20mph, and don’t sweat any bumps and cracks on the pavement – extra-wide 3” tires will guarantee a smooth-rolling ride. This ebike is also equipped with battery-operated front and rear lights, so you can enjoy shoreside sunsets without worrying about getting back before dark.
Get to know your ride
- 20 mph Top Assisted Speed
- Up to 38-Mile Range
- 350W Planetary Geared Hub Motor
- 36V/360Wh Li-Ion Battery
- Front & Rear Lights
Features

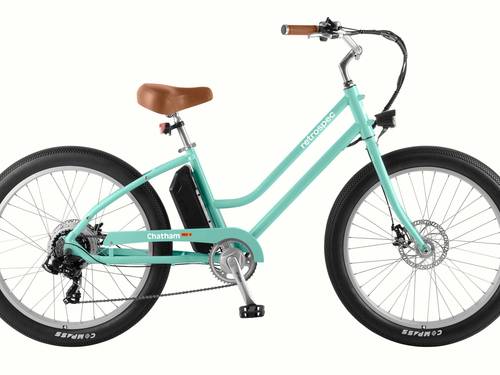

Hop On With Ease
Getting on and off your bike has never been easier, thanks to an accessible step through frame shape that also allows for a comfortable, upright riding position.

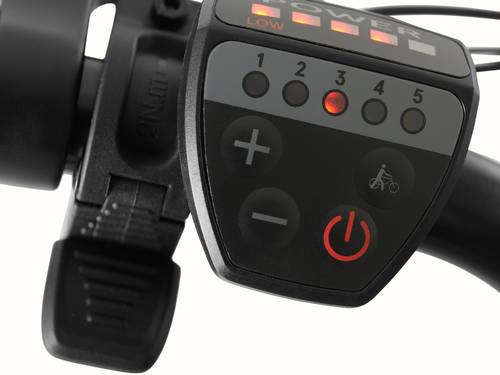

Quick Access to Controls
Handlebar-mounted, easy-read LED control panel indicates battery level and controls Pedal Assist and Walk Mode, and the easy-to-reach thumb throttle puts 350W worth of power at your fingertips.

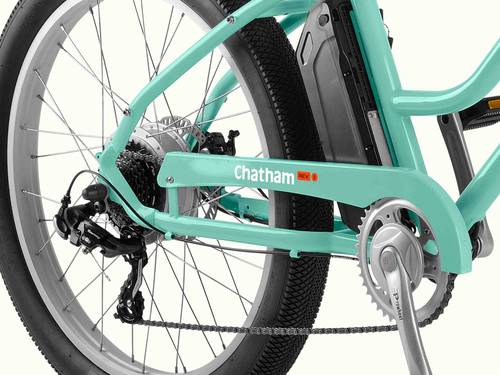

Durable, Long-Lasting, High Range
Li-ion battery offers a range of up to 38 miles. Charges within 4-5 hours.

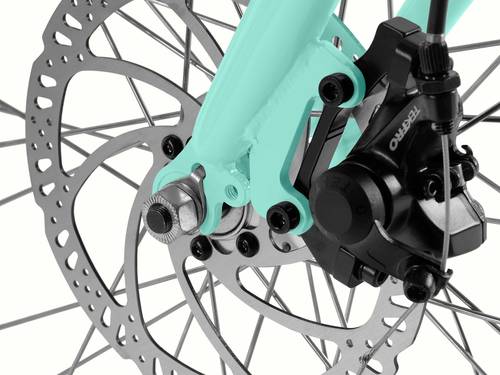

Quiet, Consistent Braking
Tektro mechanical disc brakes are generally easier to maintain, and ebike-specific 180mm rotors offer more reliable stopping power, so you can brake confidently in all kinds of weather conditions.

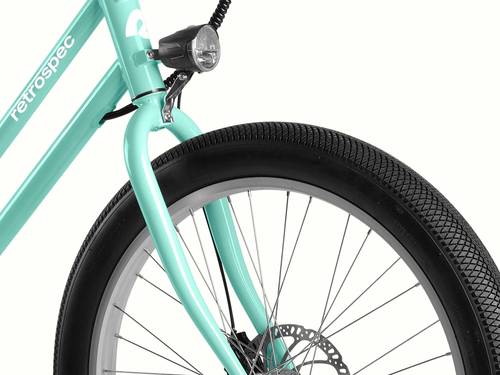

Cruise Smoothly
Extra wide and grippy 3” tires roll right over bumps for a smooth ride, and a versatile Shimano 7-speed Mega-Range drivetrain makes riding uphill or into headwinds a breeze.

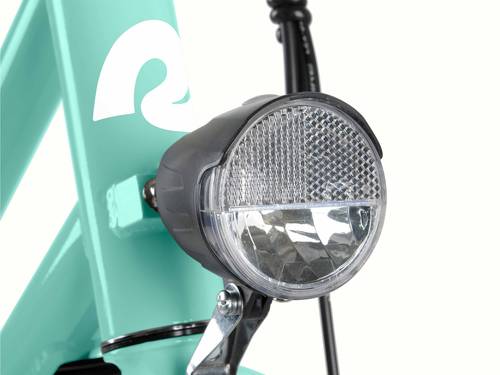

Sunset-Ready Front & Rear Lights
Don’t let the sun set on your adventures. This bike is equipped with battery-operated lights in the front and back so you won’t have to worry about getting back before dark.

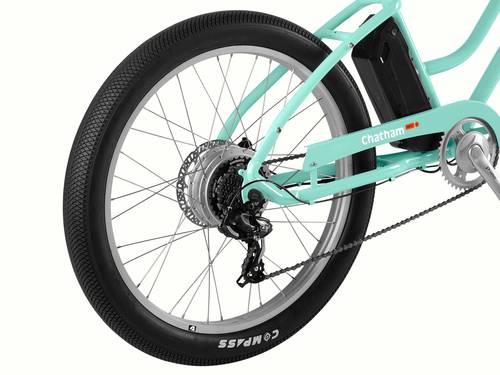

Easy-Change Rear Wheel Removal System
Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to take a look under the metaphorical hood.

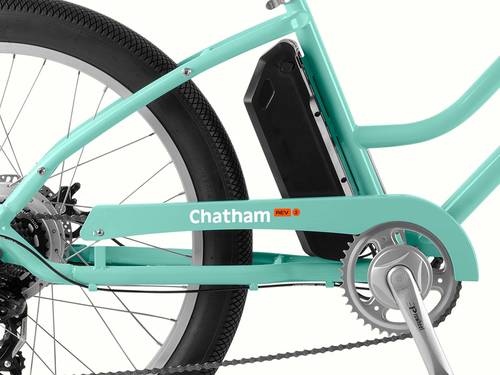

Customize to Meet Your Needs
With mounting points to easily add a rear rack, basket, fenders, and more, you can redesign your ride to be tailored to your adventures.

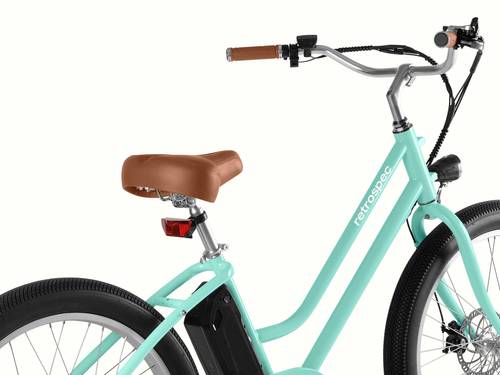

Comfortable Riding Position
Swingback handlebars and a padded saddle promote a comfortable and relaxed upright riding position, and a lower center of gravity makes the ebike easier to handle in all situations.
UL2271 & UL2849 Safety Certified
This ebike has been tested and certified to UL2271 and UL2849 standards for electric bicycles.
Specifications
Frameset
- Sizes: 16.5" Step Through
- Material: Steel
- Dropouts: 1x rear fender eyelets, rear rack mounts
- Fork: Steel
Wheelset
- Rims: Alloy 36H for disc brake
- Hubs: Alloy bolt on 17mm nut
- Spokes: 13G/2.3mm w/brass nipples
- Tires: 26 x 3.0
E-Power System
- 36V/350W Motor
- Drive Mode, Display: PAS/Thumb throttle Left side, cadence sensor
- Charge Time (empty to full): Approximetly 4.5hrs.
- 36V/350W range: 38+
- UL Testing: UL2849 & UL2271 Certified
- Pedal Assist: 5 Levels
Drivetrain
- Rear Derailleur: Shimano Tourney 7S
- Shifter(s): Shimano Tourney 7 speed
- Crankset: 42T alloy
- Chain: KMC Z7
- BB: JIS square taper cartridge
- Freewheel/Cog: Shimano 14-34T
Components
- Headset: Threaded 11/8"
- Brakes: Tektro mechanical with 180mm rotors and semi-metalic pads [OEM Replacement Pads: Tektro P20.11/Resin for 2-Piston (QBP#BR7193). Other pads that will fit: Tektro E10.11/Organic, A11TS/Sintered, A10YS.]
- Handlebars: Alloy cruiser
- Grips: Comfort with alloy lock rings
- Stem: Alloy quill
- Saddle: Comfort Cruiser
- Seatpost: Aluminum 28.6mm diameter, 350mm length
- Seatpost Clamp: Alloy QR
- Pedals: PP platform 9/16"
Extras
- Kickstand: Rear mount, adjustable, aluminum alloy
- Light(s): Dry cell battery operated front and rear lights
- Chaincover: Full Coverage
- Tools: 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
- Recommended Weight Limit: 350lbs
- Item Weight: 58.5 lbs (battery included)
Sizing
How to measure my inseam for a bike
Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here's how they work:
- Stand upright with your feet 6-8" apart.
- Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
- Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
A Rider Height
B Inseam
C Top Tube
| Size | Height Range | Standover Height |
| Frame: 17" | 5'-6'2" | 29" |
