DESCRIPTION

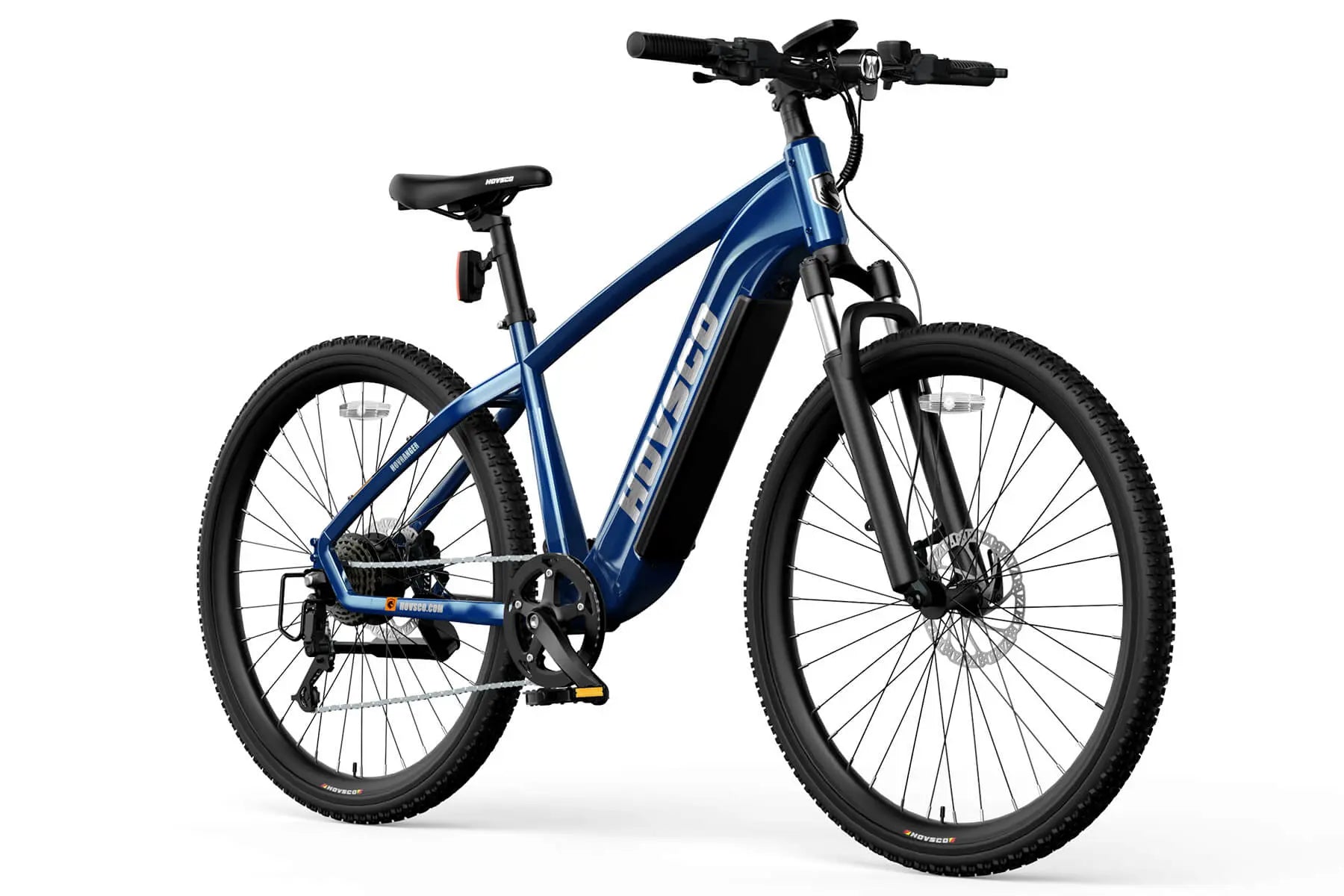

The Hovsco™ HovRanger comes in single frame size to fit a wider variety of riders. Style and durability go hand-in-hand, and you can count on it day after day. The front suspension fork provides ultimate comfort whilst riding across any surface. It is designed to keep you comfortable on longer rides, and it has mounts on its frame for an optional wheel lock. Getting around on this comfortable, fashion electric city bike is so easy and so fun, you’ll choose it over your car. Every time.
|
MOTOR 970W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor |
BATTERY Removable Internal Lithium-ion 48V, 15Ah (720Wh) |
CHARGER Included is a 54.6V 3 Amp Fast Charger, 4 Hours Charging |
|

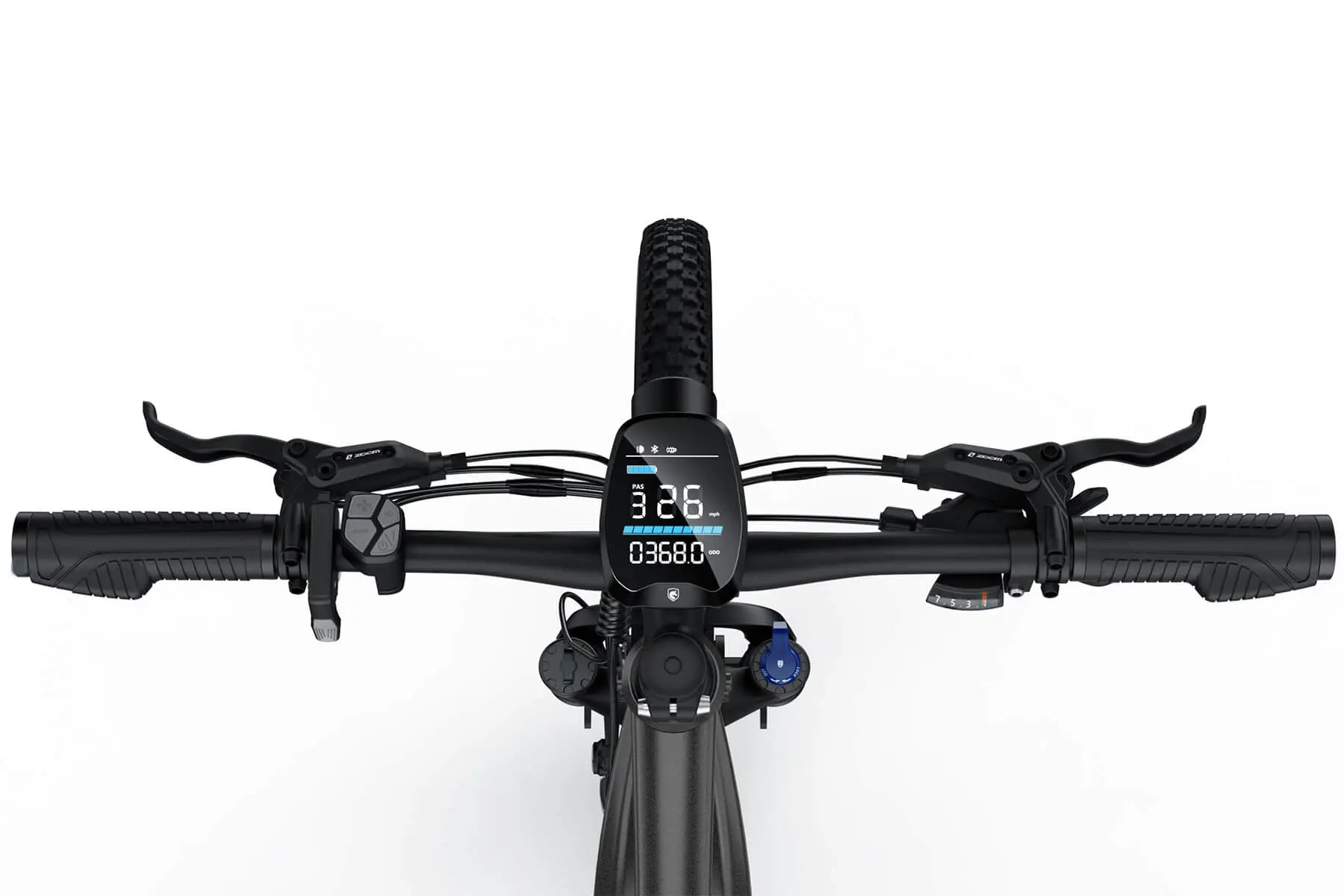

DISPLAY BC280 LCD Smart Easy Read Display with Backlight screen with app |
CRANKSET 170mm w/ 42 T |
CASSETTE 12-28T, 7 Speed Cassette |
|
BOTTOM BRACKET Square Taper, Sealed |
BRAKES Hydraulic Disc Brakes, 180mm Rotors |
REAR DERAILLEUR 7 Speed |
|
CHAIN 7 Speed |
PEDALS 9/16' Alloy Platform |
HANDLEBARS Aluminum 31.8mm,680mm |
|
HEADSET VP Sealed Bearing Headset |
GRIPS Ergonomic Comfort |
SADDLE Quality Ergonomic Saddle |
|
SEATPOST Forged Alloy, 30.4mm x 350mm, 2-Bolt Clamp |
STEM Threadless, 31.8mm, 7 Degree Rise |
SEAT CLAMP Quick Release |
|
RIM Double Wall Aluminum 36h Front & Rear |
SPOKES Black Stainless 12 Gauge |
TUBES Butyl Rubber, Schrader Valve |
|
HUBS 36H Disc Thru-axle Front, Nutted Rear |
TIRES 27.5 x 2.25" Ebike Rated Tires |
FRAME 6061 Single-Butted Aluminum Alloy with Internal Battery |
|
FORK Suspension Fork with 75mm travel, with lockout |
KICKSTAND Included, Rear Mount |
THROTTLE Throttle on demand - Throttle from a complete stop |
|
SPEED For Europe:15.5 MPH (25km/h) For US: If you want to unlock higher speed, pls reach out to sales |
SENSORS Torque Sensor + Cadence Sensor |
PEDAL ASSIST 5 Levels |
|
RANGE 40-60 Miles Average |
WEIGHT 55.8 lbs |
WEIGHT LIMIT Maximum Payload Capacity: 300 lbs |
|
BATTERY LIGHT 120PCS LED Lamp Beads, 4-meter Range, 20 m² Area |
HOVSCO APP Free Download in Apple App and Google Play Store |
| Size | |||
|---|---|---|---|
| Total Length | 1845mm | 72.63" | Wheelbase | 1142mm | 44.96" |
| Maximum Seat Height | 1030mm | 40.55" | Minimum Seat Height | 830mm | 32.67" |
| Top Tube | 650mm | 25.59" | Reach | 475mm | 18.70" |
| Standover Height | 700mm | 27.56" | Headtube Height | 170mm |6.69" |
| Handlebar Hight | 1120mm |44.09" | Handlebar Width | 705mm |27.76" |
500W Upgraded Brushless Gear Hub Motor
With the help of 500W and 65Nm of torque sensing, the high-speed brushless gear hub SUTTO motor, branch brand of Bafang, can make you conquer the most rugged terrains easily.
48V 15Ah Samsung/LG Lithium-ion Battery
The battery is a crucial part of an electric bike. Hovsco's ebikes are equipped with Samsung/LG 48V 15Ah batteries to ensure durability and performance. One charge can cover up to 60+ miles on pedal-assist mode and around 40 miles on pure electric mode. The battery will maintain 80% capacity after 1000 charges.
Torque Sensor
The torque sensor pedal assist systems measure the force that the rider applies on the pedals. It samples pedaling almost real-time, and adjusts output power optimally to achieve a highly-satisfying riding experience.
LED Strip Light
The HovRanger Step-over battery also equipped with a full LED strip light on one side, which provides 4-meter long and about 20 m² bright light for you while riding even at night. No light out worry.
